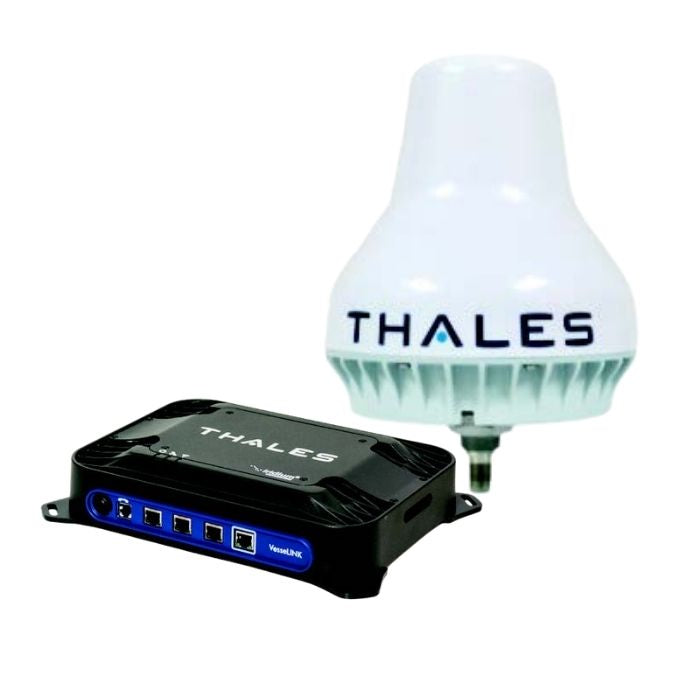

Thales Vesselink 200
The VesseLink 200 from Thales is the latest Iridium Certus maritime terminal offering satellite connection anywhere in the world for basic voice, data and internet requirements. Offering upload/download speeds of up to 176 kbps.
Description
Thales VesseLINK 200 is the entry-level Iridium Certus satellite broadband terminal for use on leisure and commercial vessels of all kinds. Iridium's 66 low-earth orbiting satellites provide voice and data services via the Iridium Certus service no matter where you sail. Suitable for use as a VSAT backup or on smaller fishing, tug, and leisure vessels.
Iridium Certus Thales VesseLINK 200 is suitable for a wide range of applications, including maritime vessels, fishing fleets, research expeditions, oil and gas platforms, and emergency response teams.
176 kbps upload/download speeds enable you to make calls, send/receive emails and browse the web, improving operations and crew welfare. Iridium Certus Thales VesseLINK 200 advanced communication system offers seamless, high-speed data and voice connectivity, making it an ideal choice for a wide range of applications, including maritime vessels, offshore platforms, remote exploration, and more.
VesseLink 200 features one of the most compact antennas on the market at just 12.5cm diameter/17cm height making it ideal for even the smallest of spaces.
Read More
PDF download
Subscriptions
| Service | 0MB | 10MB | 25MB | 50MB | 100MB | VSAT | Annual-600 | Annual-1200 |
|---|---|---|---|---|---|---|---|---|
| Minimum Duration (months) | 1 | 1 | 1 | 3 | 3 | 3 | 12 | 12 |
| Activation Fee | Free | Free | Free | Free | Free | Free | Free | Free |
| Monthly Fee | $63.00 | $84.00 | $176.00 | $316.00 | $562.50 | $386.00 | $4,245.00 | $7,545.00 |
| MB Included | 0 | 10 | 25 | 50 | 100 | 300 | 600 | 1200 |
| Out of Bundle per MB | $16.18 | $9.14 |
$8.44 |
$7.04 | $5.63 | $1.51 | $7.85 | $6.28 |
| Early Termination Fee | $0.00 | $0.00 | $0.00 | $547.00 | $937.50 | $2,972.00 | $0.00 | $0.00 |
| CALLING RATES | ||||||||
| Voice to Fixed/Cellular | $0.43 | $0.43 | $0.43 | $0.43 | $0.43 | $0.43 | $0.43 | $0.43 |
| Voice to Iridium | $0.30 | $0.30 | $0.30 | $0.30 | $0.30 | $0.30 | $0.30 | $0.30 |
| Iridium Personal Mailbox Access | $0.30 | $0.30 | $0.30 | $0.30 | $0.30 | $0.30 | $0.30 | $0.30 |
| Voice to Other MSS Systems | $12.66 | $12.66 | $12.66 | $12.66 | $12.66 | $12.66 | $12.66 | $12.66 |
| Voice 2 Stage Dialling | $0.51 | $0.51 | $0.51 | $0.51 | $0.51 | $0.51 | $0.51 | $0.51 |
Specifications
| Specification | |
| Dimensions | Height: 2.3 inches (5.8 cm) Width: 12 inches (30.5 cm) Depth: 9 inches (22.9 cm) |
| Weight | Weight: 7.5 pounds (3.4 kg) |
| IP Rating: | IP31 |
| Power Options | Option 1: 10–32 VDC Option 2: AC/DC supply with 12 VDC (65 watt nominal/120 watt maximum) |
| Front Connectors | RJ-45 LAN (3) Class 2 PoE RJ-45 WAN (1) for cellular, VSAT and other IP connections, RJ-14 POTS (2 independent phone lines) |
| Rear Connectors: | DC Power Input (10–32V) MIL-STD-1275D, DC Power Input (+12V Regulated), GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O), TNC — RF connection to Antenna, Wi-Fi — Reverse SMA, SIM card slot |
| Mechanical Vibration and Shock: | MIL-STD-810G w/Change 1, Test Method 514.7, Category 4 |
| Antenna Specifications | |
| Size: | 5 inches dia. x 6.7 inches h (12.5 cm dia. x 17 cm h) |
| Weight: | <0.7 kg/1.5 lbs |
| Power: | Directly powered by the terminal at 24 VDC |
| IP Rating: |
IP67 |
| Operating Temperature: |
-40 to +55° C |
| Mechanical Vibration and Shock: |
MIL-STD-810G w/Change 1, Test Method |
Coverage
Coverage
