Thales Missionlink 200

Thales Missionlink 200

The MissionLink 200 from Thales is the latest Iridium Certus land terminal offering satellite connection anywhere in the world for basic voice, data and internet requirements.

Thales Missionlink 200
$4,356.53

Frequently Bought Together

$4,356.53
Total:
$0.00

Description

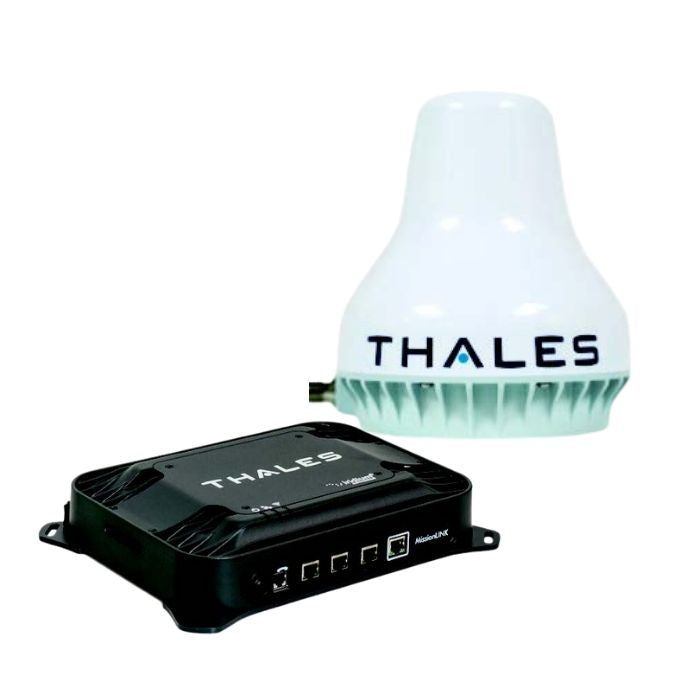

Thales MissionLink 200 is the entry level Iridium Certus satellite broadband terminal.  Iridium's 66 low earth orbiting satellites provide voice and data services via the Iridium Certus service no matter where in the world you are.  Suitable for use on vehicles or fixed building installations for remote offices, government and NGO use.



176 kbps upload/download speeds enable you to make calls, send/receive emails and browse the web.



MissionLink 200 features one of the most compact antennas on the market at just 12.5cm diameter/14cm height making it ideal for even the smallest of spaces.

Read More
Read Less

Specifications

Specification
Dimensions Height: 2.3 inches (5.8 cm)
Width: 12 inches (30.5 cm)
Depth: 9 inches (22.9 cm)
Weight Weight: 7.5 pounds (3.4 kg)
Power Options Option 1: 10–32 VDC
Option 2: AC/DC supply with 12 VDC
(65 watt nominal/120 watt max)
IP Rating: IP31
Front Connectors RJ-45 LAN (3) Class 2 PoE
RJ-45 WAN (1) for cellular, VSAT and other
IP connections, RJ-14 POTS (2 independent
phone lines)
Rear Connectors: DC Power Input (10–32V)
MIL-STD-1275D, DC Power Input
(+12V Regulated), GPIO (RS-232, +12V out,
Emergency, Radio Gateway, Discrete I/O),
TNC — RF connection to Antenna,
Wi-Fi — Reverse SMA, SIM card slot
Mechanical Vibration and Shock: MIL-STD-810G w/Change 1, Test Method
514.7, Category 4
Antenna Specifications
Size: 5 inches dia. x 5.5 inches h
(12.5 cm dia. x 14 cm h)
Weight: <0.7 kg/1.5 lbs
Power: Directly powered by the terminal
at 24 VDC
IP Rating:

IP67

Operating Temperature:

-40 to +55° C

Mechanical Vibration and Shock:

MIL-STD-810G w/Change 1, Test Method
514.7, Category 4



Coverage

OSAT

Coverage
