SmartOne C Asset Tracker Package

SmartOne C Asset Tracker Package

$210.00

SmartOne C Package is an inclusive hardware and 12 month airtime package - no need to spend time assessing plans, setting up Direct Debits or finding mapping providers, everything you need is included in this package.

SmartOne C Asset Tracker Package
$210.00

Frequently Bought Together

$210.00
Total:
$0.00

Description

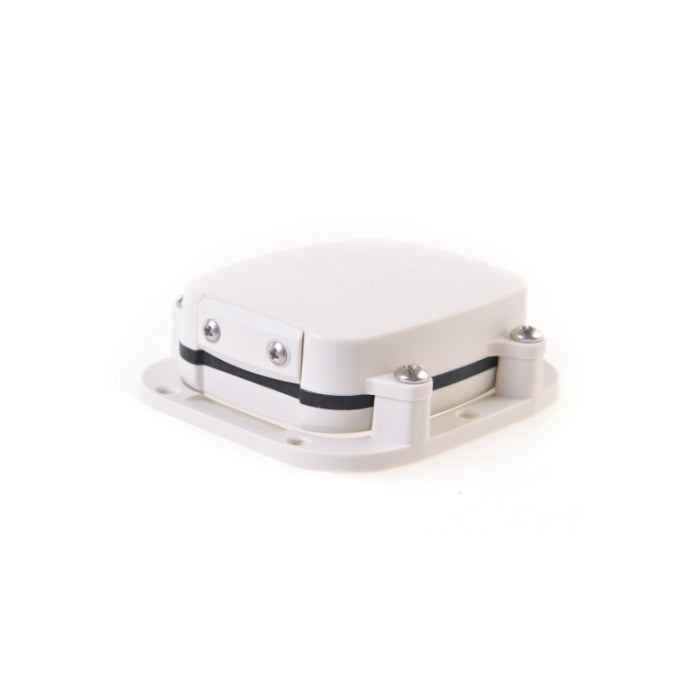

SmartOne C is an asset tracker operating on the Globalstar satellite network offering an all in one unit to track vehicles, vessels and other remote assets even when outside GSM coverage.

SmartOne C Package is an all in one package to designed to cover your hardware and airtime costs for 12 months - no need to spend time assessing plans, setting up Direct Debits or finding mapping providers, everything you need is included in this package.

Package Includes:

  • SmartOne C Satellite Tracker
  • 12 Months Unlimited Tracking Airtime
  • 12 Months OSAT Track Mapping Access

Unlimited Messages
SmartOne C can be configured to send out messages to the mapping portal as frequently as every five minutes and information contained in the message includes latitude/longitude, speed, altitude and battery status.  To choose the frequency of your messages simply select from the dropdowns above and OSAT will configure the device before dispatch. If you require the ability to change settings at a later date please also purchase SmartOne C Configuration Cable

Unlimited Mapping
Unlimited mapping is offered via our OSAT Track Mapping portal - an online system compatible with a variety of satellite and GSM tracking devices and available anywhere you have an internet connection.



OSAT Track Features

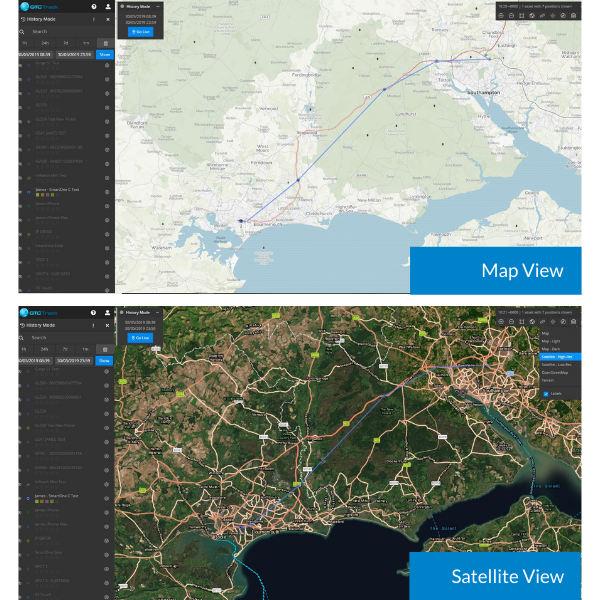

GTCTrack Map Views

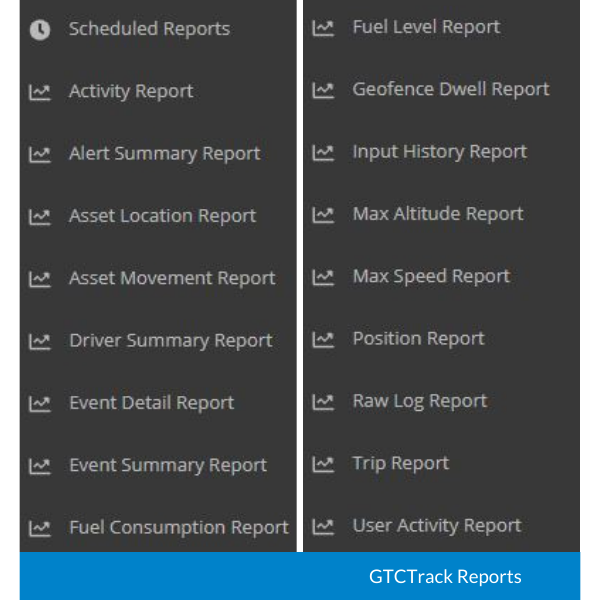

GTCTrack Reports

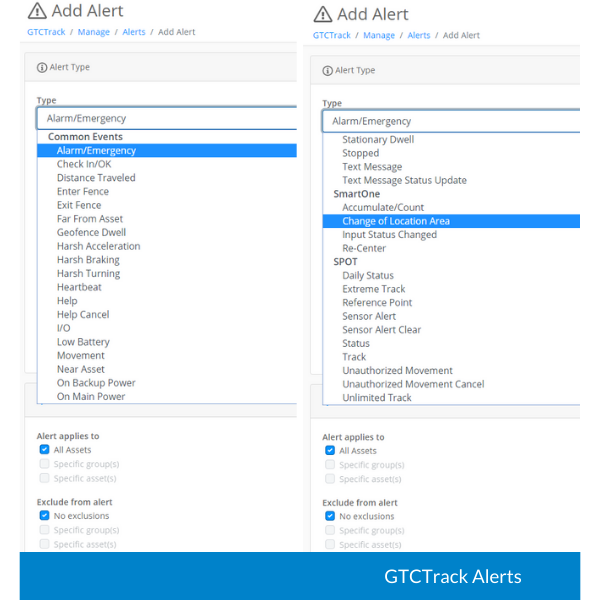

GTCTrack Alerts

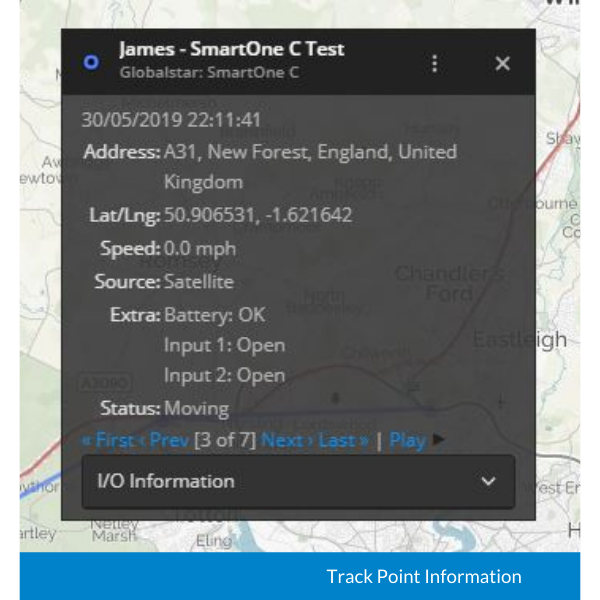

GTCTrack Track Point Info



SmartOne C Package is suitable for customers who want to use our OSAT Track Mapping Portal.  If you require tracking messages to be sent to your own corporate server please contact us for information on how this can be setup.

Have questions on whether SmartOne C Asset Tracker Package is right for you? Chat with one of our agents to find out >

OSAT Track Key Features

  • Live and historical data
  • Multiple map layers and views
  • Advanced reporting
  • Asset grouping customisation
  • Alert configuration (event alerts can be sent via email or SMS)
  • Sub-user accounts



How it works:

Tracking
The SmartOne C utilizes motion sensors, comparative GPS positioning and custom configured sensors to gather and transmit information such as movement and location reports, stop/start messaging and theft recovery alerts using Globalstar's regional simplex satellite network. In addition to positional information, the SmartOne C transmits other message types that include battery status, input alarm status and diagnostic information.

SmartOne C Key Features:

Global Coverage
With coverage in over 120 countries across the world and many ocean covered areas, the SmartOne can keep you in contact with friends, family and colleagues in areas where mobile phones don’t offer a connection, even in the most remote areas of the world.

Theft Recovery/ Geo-Fencing Mode
The Theft Recovery mode allows you to configure the device to differentiate between authorized and unauthorized movement of an asset. While the asset remains in an authorised state the SmartOne C will send out infrequent messages. If the SmartOne C detects an unauthorised state, such as movement out of a pre-defined area, it can be configured to send out high frequency messages to enable the unauthorised movement to be monitored closely.

Geo-Fencing
In conjunction with OSAT Track, OSAT’s online mapping portal, the SmartOne satellite asset tracker offers a geo-fencing feature. This allows you to predefine a set of geographical boundaries and be alerted by email when the device enters or exits the geo-fenced area.

Dust & Water Resistant
The SmartOne C satellite asset tracker is designed to withstand the harshest weather conditions.

Customisable tracking
The SmartOne C is an asset tracker that provides customisable, cost-effective monitoring of a wide variety of assets such as cars, trucks, trailers, cargo containers, construction equipment, boats and any other mobile asset.

Portable and Easy to Install
It is easily installed and field managed without the need for harnesses, antennas or external power.

Charging
The SmartOne C Tracker has two options for charging, through an external power supply or 4 "off the shelf" AA 1.5V lithium batteries (included).

By using internal lithium batteries, the SmartOne C is fully portable and can easily be moved from asset to asset and used covertly if required. The device is capable of operating for up to 3 years on internal batteries.

Alternatively, the SmartOne C can be permanently mounted and operated on 10 to 48 Volts DC through an optional line power connection cable. See the accessories tab below to view our SmartOne C Input Cable - 5 Volt and SmartOne C Input Cable - 8-22 Volt Cables.



SMARTONE SATELLITE TRACKER – MESSAGE DELIVERY OPTIONS AND FORMATS

Before we can activate your SmartOne Satellite Tracker you must select a GTC messaging plan and a message delivery route. The messaging plan allows your SmartOne tracker to transmit its GPS coordinates and other data to your selected destination.

View SmartOne Airtime and Messaging Plans.

In order to view the GPS coordinates and other information transmitted from the device on a mapping portal, or receive them at a server or by email, you must also select one of the delivery options below:

  • GTCTrack
  • Deliver raw data to corporate server
  • Deliver decoded messages by email
  • Deliver decoded messages to a URL

Click here to download full details of the above messaging options.

Read More
Read Less

Features

files/Tracking_Icon_ed426cd4-6f1a-4e70-a4bb-98c99f1f0321.png

TRACKING

Subscriptions

Download the SmartOne BLP/C configuration software here!

*No roll-over of unused messages is permitted from one billing preiod to the next.

*Subject to fair usage policy (minimum message transmission frequency every 30 mins)

  Standard Plan Light Plan Heavy Plan Unlimited Plan
Activation Fee $30.00 $30.00 $30.00 $30.00
Monthly Fee $12.50 $14.50  $17.50 $30.00
Inclusive Messages 0 250 500 Unlimited
Overage per Message $0.05 $0.05 $0.05 n/a

Specifications

Specification
Dimensions 6.9 x 8.3 x 2.54 cm
Weight 102g (with 4 batteries and mounting hardware)
Operating Temp

-30° to +60° C

NOTE: The unit shall remain operational over the -40° to +85°C range, though may experience battery life and RF signal degradation

Line Power 5v DC or 8-22v DC with regulator cable
Battery Type (4) AAA 1.5v lithium Provides
Battery Life Minimum 1.5 Years
Certifications

ANATEL Certification for Brazil (pending)

FCC CFR Parts 15 and 25

Industry Canada

CE Mark (European Certification)

COFETEL (pending)

Standards

SAE J1455 MIL STD 810, NEMA 4X / IP68, RoHS Compliant

Satellite Technology

Global LEO Satellite operation using the Globalstar Simplex Data Network

Key Features
Certified as intrinsically safe
Quick installation using either industrial adhesives, brackets or screw mounts
Total packaged solution: no harnesses, external power or external antenna requires
Automatic alerts: Change of location sensing sends alerts if asset moves outside of pre-determined range
Hardware on/off feature: Allows the unit to initiate GPS re-centering functionality
Messaging cost reduction mode: reduced satellite messaging if asset remains in the same location
Run-time monitoring
Accepts serial signals (TTL) from external inputs
Hardware on/off features allows the unit to initiate GPS re-centering functionality
Operates on 5v external line power, 8-22v regulator cable, or (4) AAA Lithium batteries
Asset-ready design: Allows for easy installation and field management without the need for antennas or external power
Removes the need to purchase expensive proprietary batteries for replacement
