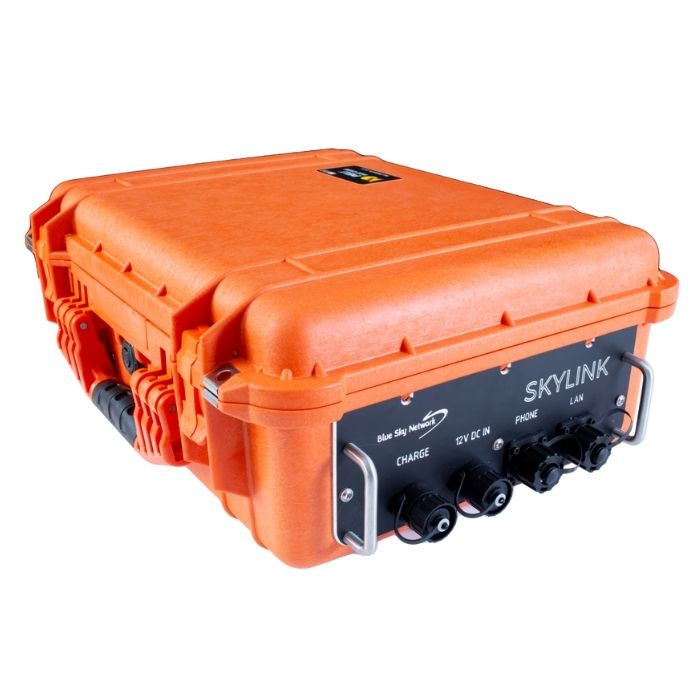

SkyLink TOC BOX
All-in-one communications solution for any operation, anywhere, encased in a ruggedised, hardened plastic box.
Description
Achieve mission-critical communications from anywhere on the planet with the SkyLink TOC BOX. Able to withstand the toughest environments due to its protective, ruggedised case, the compact and versatile terminal harnesses the power of Iridium’s Certus network, delivering high-grade voice and midband data.
Users can enjoy high-quality voice, LAN connectivity, and WiFi connectivity, making the TOC BOX the ideal solution for sharing media files, sending and receiving email, and internet browsing from any environment, no matter how severe.
The TOC BOX contains everything needed to stay reliably connected: satellite and cellular modems are included, as well as a GNSS modem, antennas, WiFi access point, handset (standard case only), LAN port, and detachable batteries. Use it with the case open or via the external connectors with the case closed.
Read More
Specifications
| Specification | |
| Size | (Standard): 19.8 x 15.3 x 7.5 in (50.2 x 39.0 x 19.0 cm) (Compact): 17.9 x 13.0 x 6.8 in (43.5 x 33.0 x 17.3 cm) |
| Weight | (Standard): 23.8 lb. (10.8 kg) (Compact): 20.9 lb. (9.5 kg) |
| External power supply/charger | Input voltage: 90 – 264VAC Output voltage: 16.8VDC |
| Vehicle input voltage | 12VDC (includes battery protection) |
| Power consumption | 18W peak power, 7W nominal |
| Operational temperature excluding batteries | -40°C to +70°C |
| Operational temperature including batteries | -20°C to +55°C |
| IP Rating | IP67 protection class |
| Batteries | 2x 98 Wh detachable batteries with travel case |

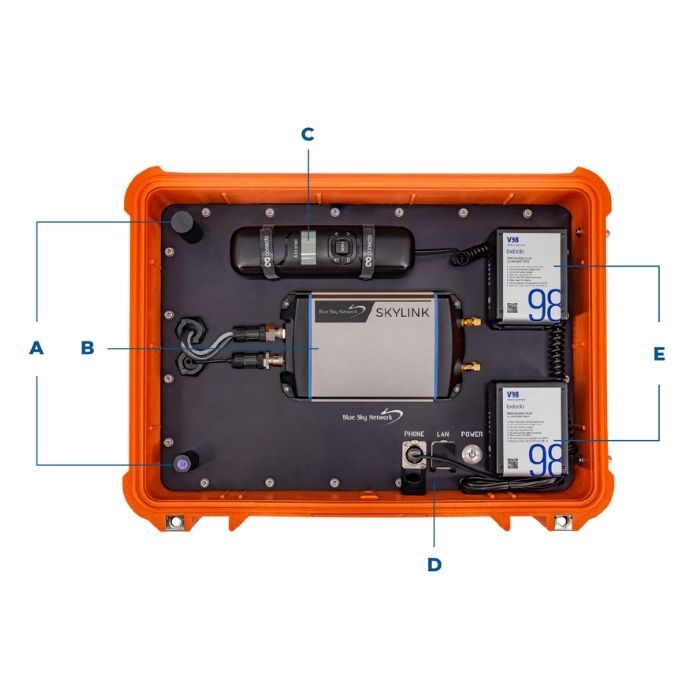

A. Antennas
B. Dual Mode Data Gateway
C. Handset (standard case only)
D. On/off, phone, LAN
E. Detachable batteries

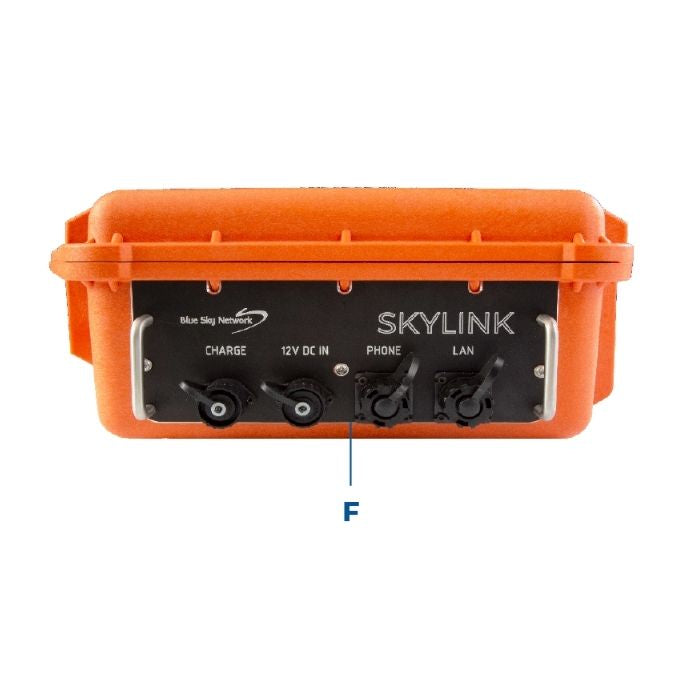

F. External connectors
