$97.50

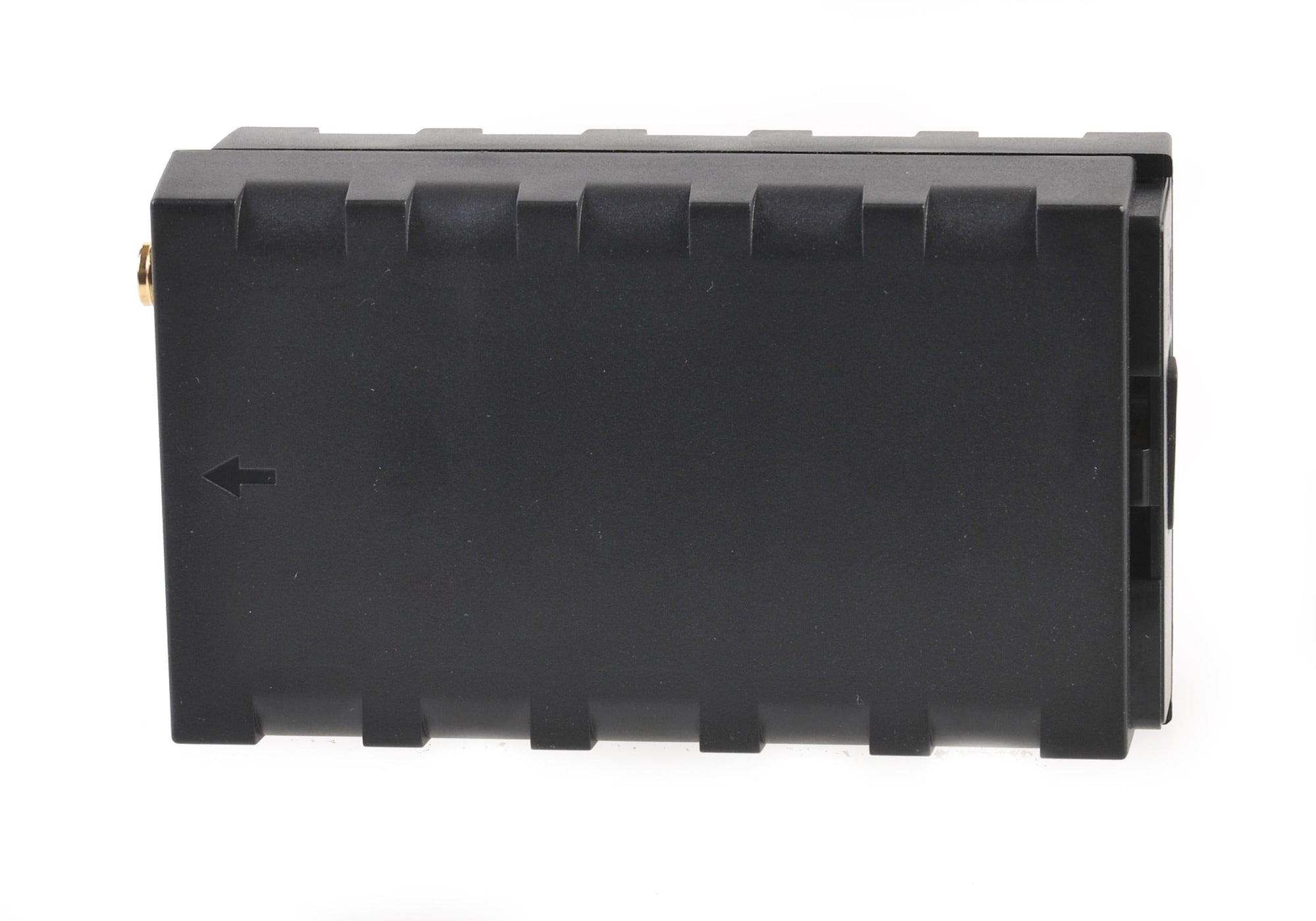

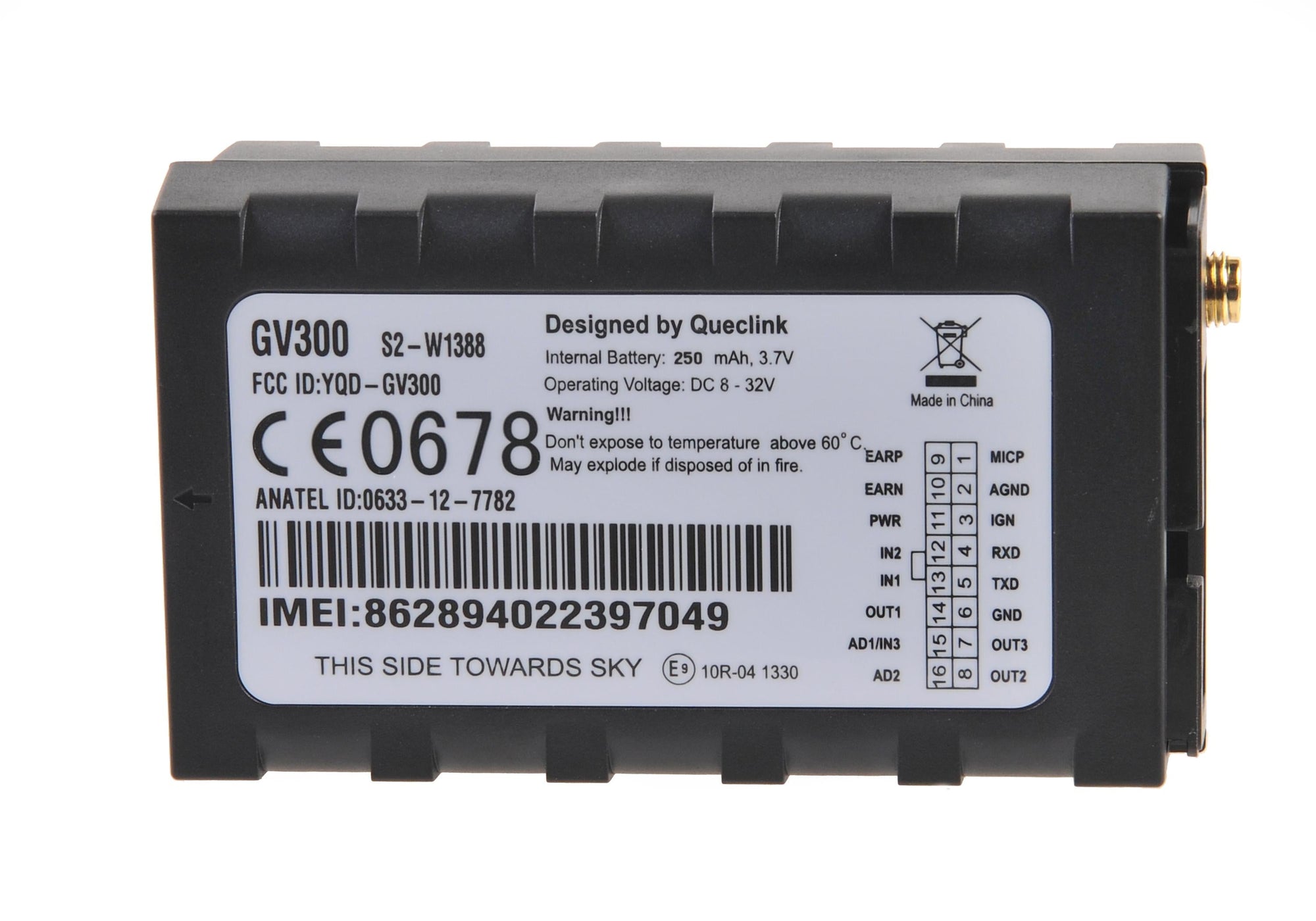

The Queclink GV300 is a compact GPS tracker designed for a wide variety of vehicle tracking applications.
The Data Cable M USB Cable is required to upgrade firmware and configure the Queclink GV300N GSM/GPS Tracker.
The compact Queclink GV300 is a GPS tracker designed for a wide variety of vehicle tracking applications. Its quad band GPRS/GSM tracker subsystem supports 850/900/1800/1900 MHz allowing the Queclink GV300's location to be monitored in real time or periodically tracked by a backend server and mobile devices.
If you are interested in activating your device with OSAT please complete the contract on this link.
Our online mapping portal can track your Queclink GV300 to provide real-time information via your GPS location. Any person provided with the login can become an operator to monitor any number of GSM or satellite assets simultaneously in-real time and historically on both the Basic and Professional plans.
TRACKING
SOS
| Service | Up to 100MB | 100-500MB | Over 500MB |
| Minimum Duration | 1 Month* | 1 Month* | 1 Month* |
| Activation Fee | £5.00 | £5.00 | £5.00 |
| Minimum Monthly Fee** | £0.50 | £2.50 | £8.50 |
| Monthly Fee | £3.00 | £4.00 | £10.00 |
| Inclusive MB | Up to 100MB | 100-500MB | Over 500MB |
Out of Bundle Charges |
|||
| SMS (Per Message) | £0.25 | £0.25 |
£0.25 |
Optional Mapping Charges |
|||
| OSAT Track Basic | £7.25 | £7.25 | £7.25 |
| OSAT Track Pro | £13.50 | £13.50 | £13.50 |
| Contract | SIGN CONTRACT > |
SIGN CONTRACT > | SIGN CONTRACT > |
*Minimum Duration: Upon activation, subscription fee and/or allowance will be pro‐rated for 1st month. Once deactivation is requested via email, subscription fee and/or allowance are not pro‐rated.
**Minimum Monthly Fee: If SIM is suspended, the minimum monthly subscription fee will continue to be charged. No roll‐over of unused minutes is permitted from one billing period to the next. Please send your request to suspend the SIM via email.
| General Specifications | |
| Dimensions | 8 x 4.9 x 2.6 cm |
| Weight | 71g |
| Backup Battery | Li-Polymer 250 mAh |
| Standby Time | 90 hours (without reporting)50 hours (10 minutes reporting)48 hours (5 minutes reporting) |
| Operating Voltage | 8V to 32V DC |
| Operating Temperature | -30 ~ +80C (without battery)-40 ~ +85C for storage (with battery) |
|
GSM Specifications |
|
| Frequency | Quad band: 850/900/1800/1900 MHzCompliant to GSM phase 2/2+Class 4 (2W @ 850/900 MHz)Class 1 (1W @ 1800/1900 MHz) |
| GPRS | GPRS multi-slot class 12GPRS mobile station class B |
| RMS Phase Error | 5 deg |
| Max Out RF Power | GSM850/GSM900: 33.0±2 dBmDCS/PCS: 30.0±2 dBm |
| Dynamic Input Range | -15 ~ -108 dBm |
| Receiver Sensitivity | 0 Class II RBER 2% (-107 dBm) |
| Stability Of Frequency | < 2.5 ppm |
| Max Frequency Error | ±0.1 ppm |
|
GPS Specifications |
|
| GPS Chipset | 56-channel u-blox All-In-One GPS receiver |
| Sensitivity | Autonomous: -147 dBmHot start: -156 dBmReacquisition: -160 dBmTracking: -162 dBm |
| Position Accuracy | Autonomous: < 2.5mSBAS: < 2.0m |
| TTFF (Open Sky) | Cold start: 27s average Warm start: 27s average Hot start: 1s average |
|
Interfaces |
|
| Digital Inputs | Three digital inputs/ One positive trigger for ignition detection/ Two negative trigger inputs for normal use |
| Configurable Inputs | One special input can be configured to negative trigger digital input or analog input (0-16V) |
| Analog Inputs | One analog input (0.3-16V) |
| Digital Outputs | Two digital outputs, open drain, 150 mA max current drain |
| Latched Digital Outputs | One digital output with internal latch circuit, open drain, 150 mA max current drain |
| Two-way Audio | Two differential outputs/one single end input |
| GSM Antenna | Internal only |
| GPS Tracker Antenna | Internal and optional external GPS antenna |
| Indicator LED | GSM, GPS, and power |

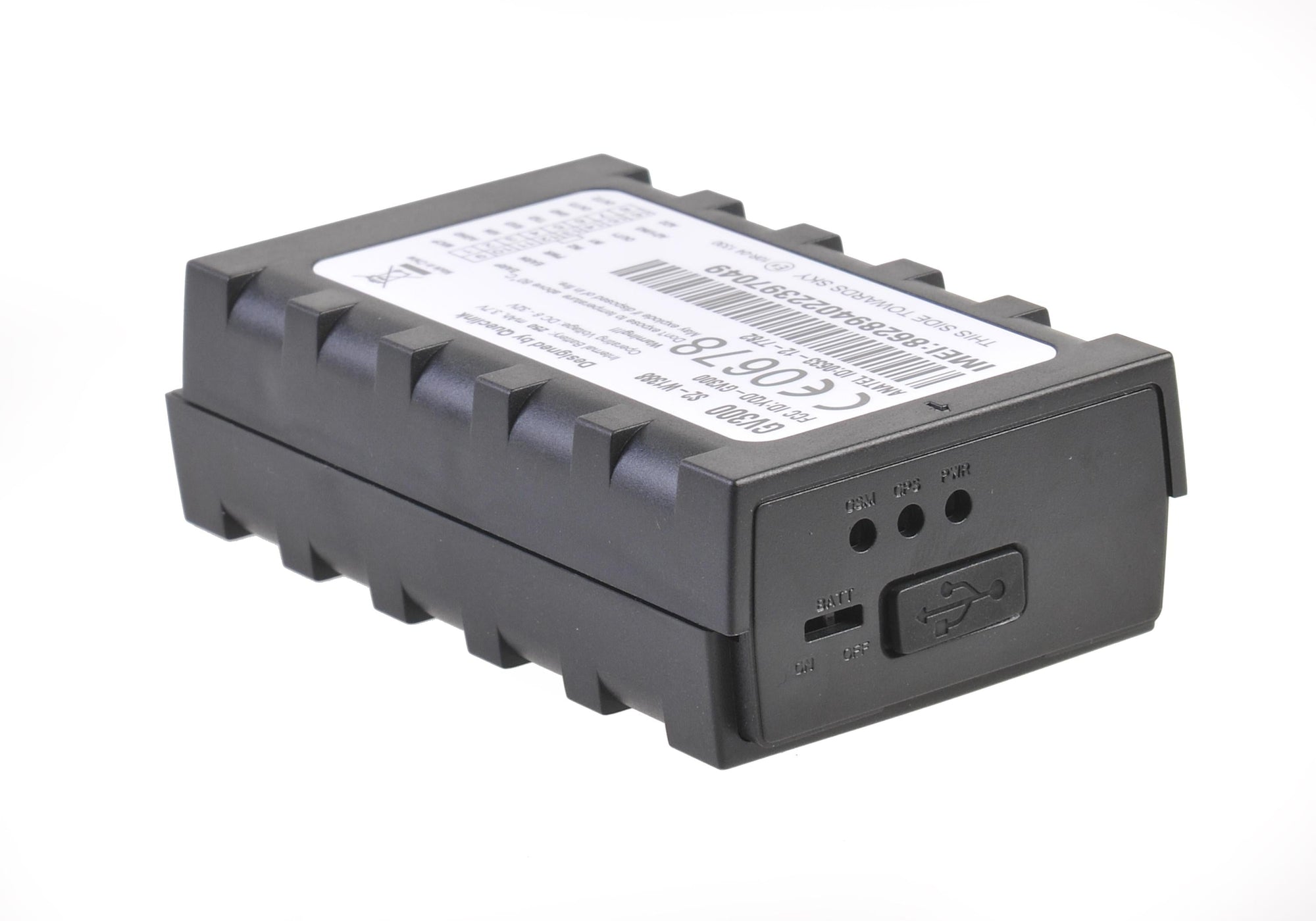

| Mini USB Port | Mini USB port for upgrading and debugging |

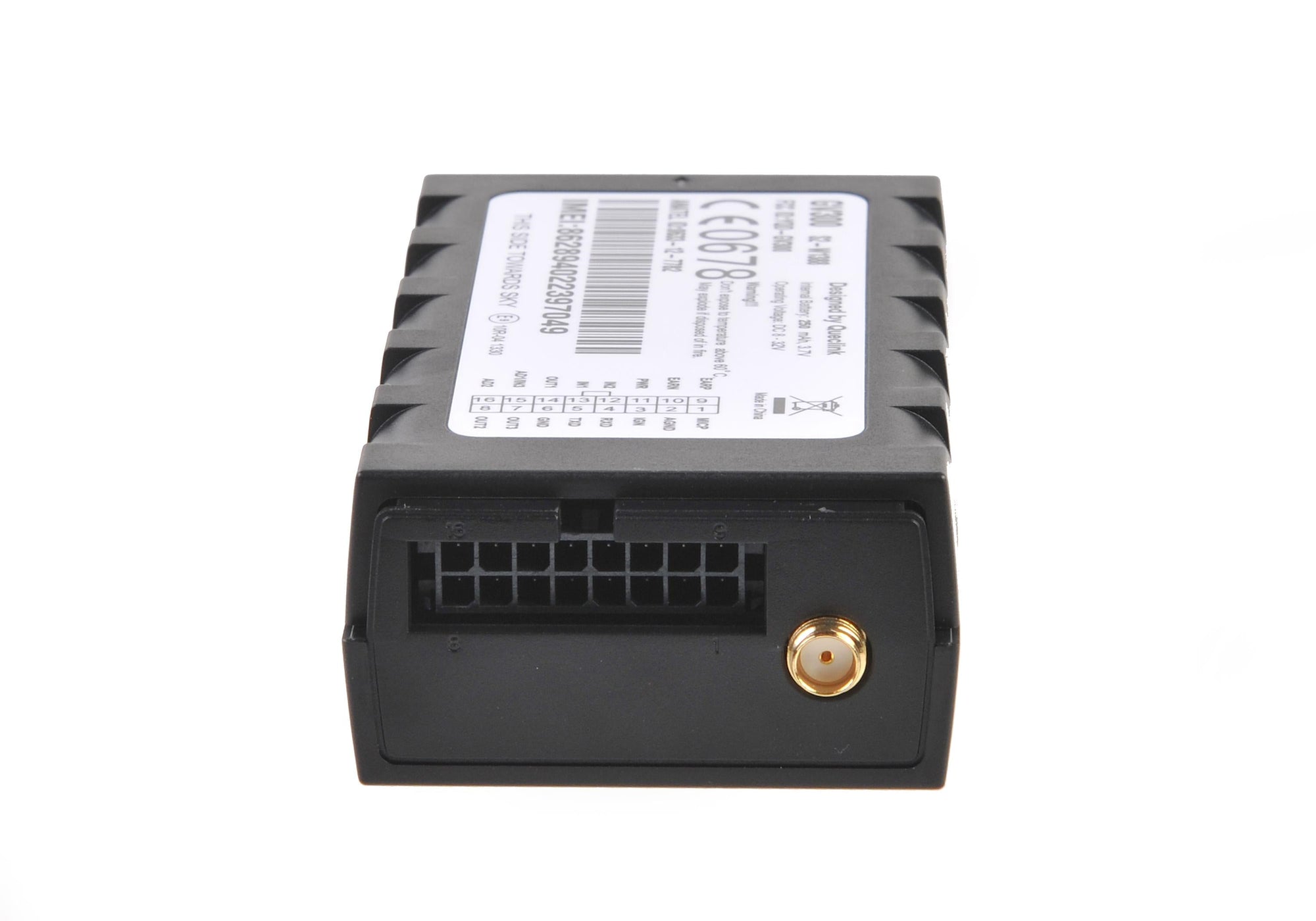

| Serial Port | One RS232 serial port on 16 pin molex type connector, for external devices (GARMIN protocol support) |
|
Key Features |
|
| Easy to install | |
| Wide operating voltage range 8V to 32V DC | |
| Internal u-blox chipset | |
| Low power consumption, long standby time with internal battery | |
| Quad-band GSM/GPRS frequencies 850/900/1800/1900 MHz | |
| Multiple I/O interfaces for monitoring and control | |
| Internal 3-axis accelerometer supporting driving behaviour monitoring, power conservation, and motion detection | |
| Internal GSM antenna | |
| Internal and external GPS antenna | |
| FCC/CE/E-Mark certified | |
