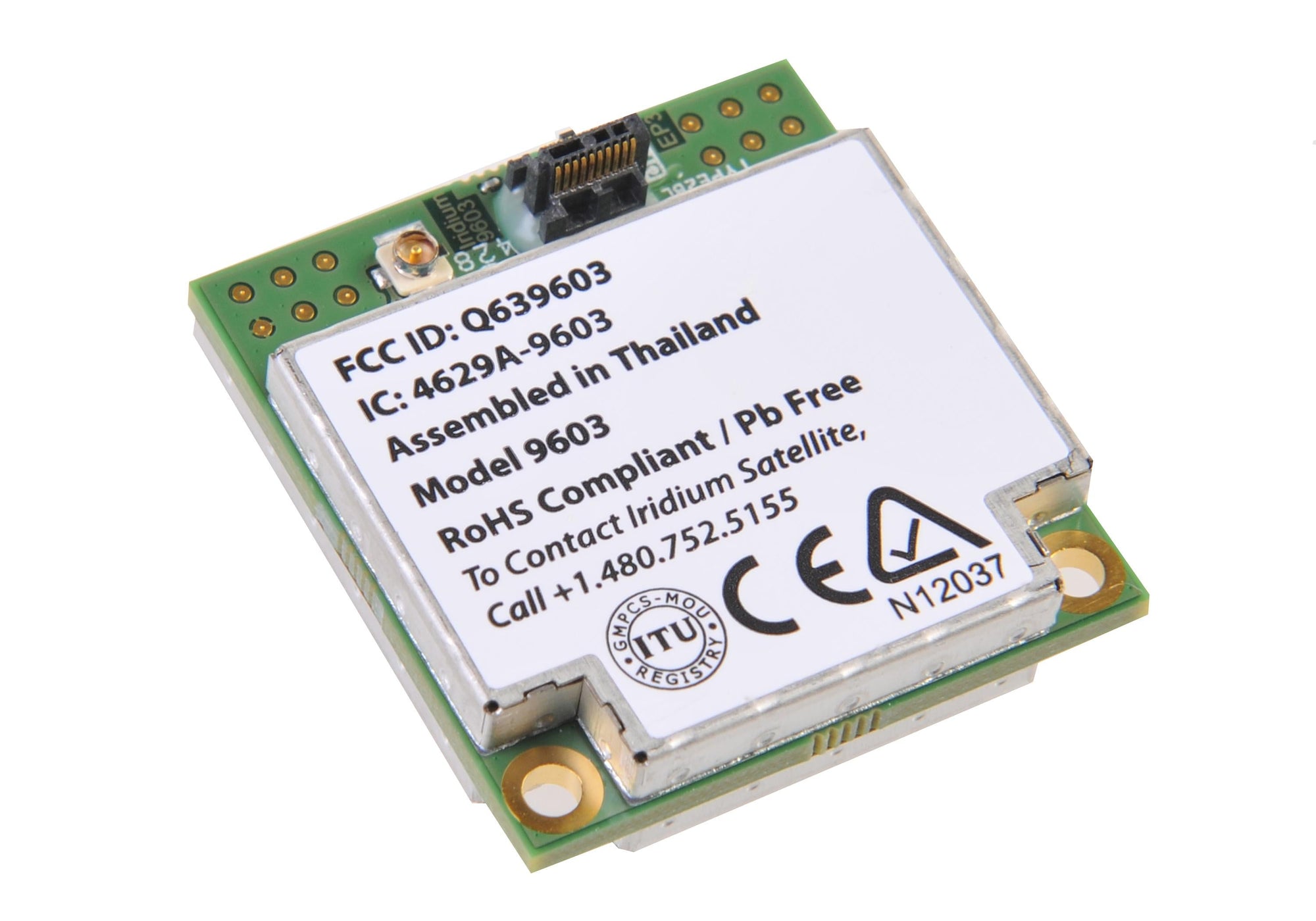

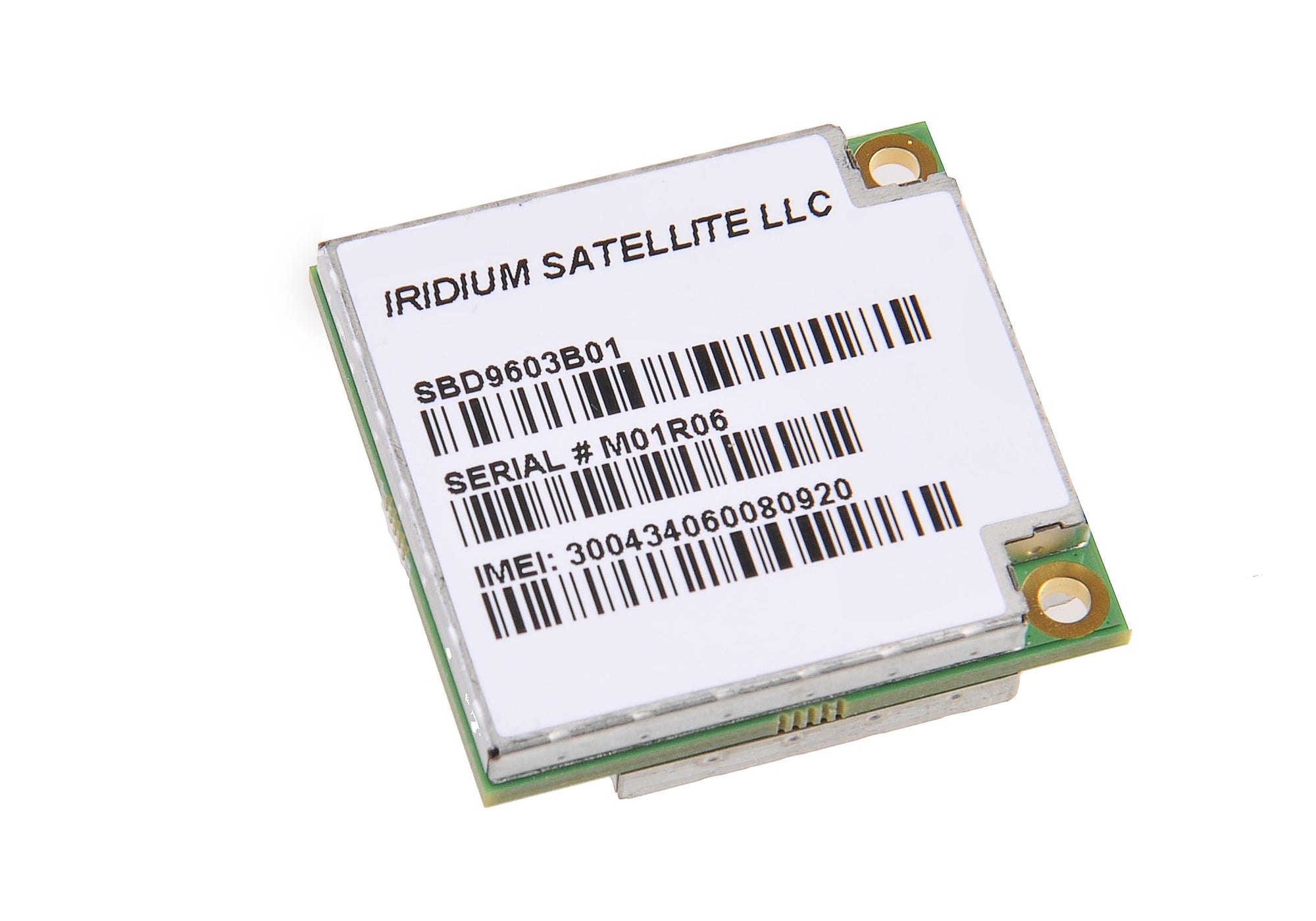

Iridium 9603-N Short Burst Data Transceiver
$139.99
The Iridium 9603 SBD modem is the smallest ever made by Iridium. The 9603 is one quarter the volume and half the footprint of its predecessor the 9602.
Description
The Iridium SBD 9603
Allows the user to take advantage of the Iridium global network and also gives the capability of two-way communications.
The new Iridium 9603 is the latest transceiver available from Iridium. The 9603 offers the smallest form factor of any commercial satellite transceiver available today and is also one-forth the volume and half the footprint of the Iridium 9602.
The Iridium 9603 is a revolution in scale, the compact transceiver is the world's smallest commercially available two-way satellite data modem. It is designed especially for those who need to create smaller devices but still want to take advantage of having global coverage.
How the 9603-N Works
The Iridium SBD 9603 is a single-board core transceiver that comes in a 'black box' format. The device's interfaces are provided through a single, multi-pin interface connector and an antenna connector, with additional end-user field application functions (e.g. GPS, microprocessor-based logic control, digital and analogue inputs and outputs).
The SBD 9603 does not incorporate or require a SIM card. It can be integrated into a variety of wireless data applications or retrofitted into existing SBD-only applications. The Iridium 9603 supports Iridium's Short Burst Data capability, but does not support voice, circuit, switched data or short message service (SMS).
Resources & Downloads
Read More
Subscriptions
| Service | SBD 0 | SBD 12 | SBD 17 | SBD 30 |
| Activation Fee | FREE | $40.00 | $40.00 | $40.00 |
| Monthly Fee | $17.00 | $20.00 | $25.00 | $42.50 |
| Minimum Term | 1 Month | 1 Month | 1 Month | 1 Month |
| Suspended Monthly Fee | $2.50 | $2.50 | $2.50 | $2.50 |
| Minimum Billable Message Size | 30 Bytes | 10 Bytes | 10 Bytes | 10 Bytes |
| Inclusive Bytes per Month | 0 Bytes | 12,000 Bytes | 17,000 Bytes | 30,000 Bytes |
| Overage (per 1,000 Bytes) | $1.50 | $1.50 | $1.75 | $1.50 |
| SBD Registration/Mailbox Check | $0.05 | $0.05 | $0.05 | $0.05 |
ALL PRICES EX VAT
Specifications
| Specification | |
| Dimensions | 31.5 x 29.6 x 8.1 cm |
| Weight | 11.4g |
| Operating Temperature | -30°c to +70°c |
| Operating Humidity | 75% RH |
| Storage Temperature | -40°c to +85°c |
| Frequency range | 1616 MHz to 1626.5 MHz |
| DC Power Input | |
| Supply input voltage range | 5.0V +/- .2V DC |
| Idle current (average) | 45mA |
| Idle current (peak) | 195mA |
| Transmit current (peak) | 1.5A |
| Transmit current (average) | 190 mA |
| Receive current (peak) | 195mA |
| Receive current (average) | 45mA |
| SBD Message transfer - average current | 190mA |
| SBD Message transfer - average power | 1.0W |
| Key Features | |
| Single-board transceiver | |
| Very small form factor | |
| No SIM card | |
| Simple AT command interface | |
| Automatic notification to the transceiver that a mobile-terminated message is queued at the gateway | |
| Duplexing Method TDD (Time Domain Duplex) | |
| Input/Output Impedance 50 | |
| Multiplexing Method TDMA/FDMA |
