$641.80

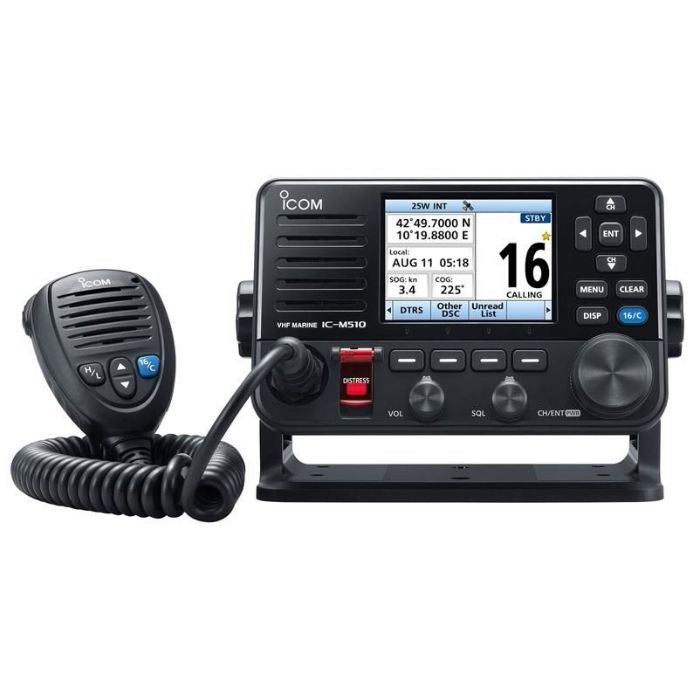

Wirelessly connect to the new IC-M510 marine radio with your smartphone and interact with it remotely from any part of your vessel. The M510 offers a stylish, sleek design with TFT LCD, allowing for a near-180° viewing angle.
The next-gen IC-M510 marine radio from ICOM lets you turn your smartphone into a remote control where users can then engage with the M510 from any part of your boat. Connect up to three smartphone devices via WLAN for expanded communication options and added versatility. The M510 even has intercom functionality between smartphone and the radio itself, allowing for remote audio transmission.
The M510 can easily be embedded into the dashboard of your boat thanks to its slimline 2.8” depth. Its wide, crystal clear display can be viewed across 180° thanks to its TFT LCD screen, and night mode means it can be even be seen in low light conditions.
With powerful audio from its internal, IP68-rated waterproof speaker, the M510 has a navigation function that guides vessels to a specific waypoint or AIS target in the event of an emergency. Users can even assign up to 100 destinations as waypoints.
The IC-M510 marine radio is part of the next generation of marine radio devices from Icom. Easily mountable and wirelessly compatible with up to three smartphone devices, this powerful VHF/DSC plays a large part in the preservation of a crew’s safety while out in the open ocean.
| Specification | |
| Frequency range TX RX DSC AIS1, 2* |
156.025–161.425 MHz*3 156.300–161.925 MHz*3 156.525 MHz 161.975, 162.025 MHz |
| Usable channels | INT, USA, ATIS*2 channels |
| Type of emission | 16K0G3E (FM), 16K0G2B (DSC) 16K0G2B (AIS)*1 |
| Power supply requirement | 13.8 V DC (10.8–15.6 V DC) |
| Current drain TX 25 W output RX Max. audio |
5.0 A 4.0 A (with HM-195) |
| Operating temperature range | –20°C to +60°C; –4°F to +140°F |
| Antenna impedance | 50 Ω |
| Weight (approximate) | 750 g; 1.7 lb (Not including microphone) |
| TRANSMITTER | |
| Output power (at 13.8 V DC | 25 W, 1 W |
| Max. frequency deviation | ±5 kHz |
| Frequency error | ±0.5 kHz |
| Spurious emissions | Less than 0.25 μW (at 25 W) |
| Residual modulation | More than 40 dB |
| Adjacent channel power | More than 70 dB |
| RECEIVER | |
| Sensitivity (at 20 dB SINAD) DSC (1% BER |
–5 dBμ –1 dBμ emf |
| Adjacent channel selectivity DSC (1% BER) |
More than 75 dB More than 73 dBµ emf |
| Spurious response DSC (1% BER) |
More than 75 dB More than 73 dBµ emf |
| Intermodulation DSC (1% BER) |
More than 75 dB More than 68 dBµ emf |
| Hum and noise | More than 40 dB |
| Audio output power (at 10% distortion) |
15 W typ. with a 4 Ω external speaker |
| Wireless LAN | |
| Wireless LAN standard | IEEE802.11 b/g/n |
| Authentication and Encryption | WEP (64/128 bit), WPA-PSK (TKIP), WPA2-PSK (AES) |
| Channels | 1 to 13 (2.4 GHz band)*4 |
| Output power | Less than 10 mW/MHz |
*1 Only for the Integrated AIS version.
*2 Available depending on the transceiver version.
*3 May differ depending on version.
*4 May differ depending on the country of use.
