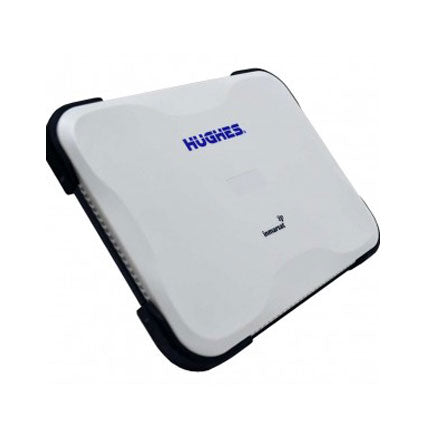

The rugged and lightweight Hughes 9211-HDR is a budget-friendly High Data Rate terminal, ideal for media, governments, NGOs, mobile healthcare providers and more, who demand the finest balance of high performance, quality of service and lowest cost.
The Hughes 9211-HDR comes with:

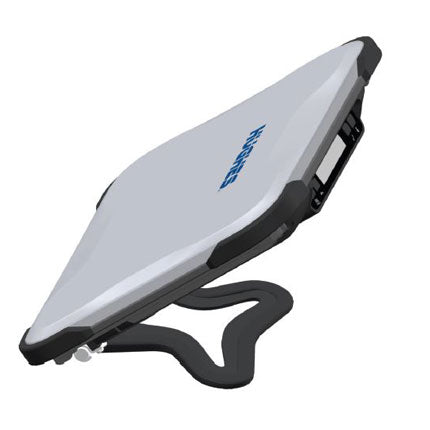

The 9211-HDR boasts a hardened, compact, and sleek design - the world’s smallest and lightest HDR-capable BGAN. Users can connect at streaming broadband speeds of over 650 kbps with features such as built-in, multi-user WiFi access. An external powered antenna is available to support long RF cable runs for temporary or permanent fixed-site installations. The Hughes 9211-HDR enables users to send and receive IP traffic via Ethernet and/or 802.11 b/g/n WiFi, including voice or fax via a standard telephone connection. It is all IP-based and offers standard IP or selectable, dedicated Quality of Service (QoS) levels. Inmarsat’s BGAN HDR service network now offers new and higher streaming rates. The Hughes 9211-HDR supports the highest streaming rates available (above 650 kbps) for transmitting video and other critical data from the field.
Asymmetric streaming rates are supported, enabling users to better tailor the service to their individual preferences and minimize cost.
Our online mapping portal can track your Hughes 9211 HDR to provide real-time information via your GPS location. Any person provided with the login can become an operator to monitor any number of GSM or satellite assets simultaneously in-real time and historically on both the Basic and Professional plans.
SMS
VOICE
HIGH SPEED DATA
| General Specifications | |
| Dimensions | 23.2 x 29.2 x 5.1 cm |
| Weight | 1.9Kg |
| Battery Type | Rechargeable lithium ion battery |
| Operating Temperature (with battery) | -5° C to +55° C |
| Operating Temperature (excluding battery) | -25° C to +55° C |
| Battery Charging Temperature | 0° C to 40° C |
| Storage Temperature (with battery) | -25° C to +55° C |
| Storage Temperature (excluding battery) | -25° C to +80° C |
| Humidity | 95% RH at +40° C |
| Operational wind loading (with stand secured to ground) | 40 km/h (25 mph) |
| Water and Dust | IP-55 Compliant |
| Vibration | 200-2000 Hz, 0.3m2/s3, MIL-SPEC 810B |
| Satellite TX Frequency | 1.626.5–1660.5 and 1667.3–1676.2 MHz |
| Satellite RX Frequency | 1518–1559 MHz |
| SAT Continuous TX | Up to 1¼ hour at >650 kbps on one charge |
| SAT Continuous RX | Up to 4 hours at 256 kbps on one charge |
| SAT Standby | Up to 36 hours |
| Phone | Two-line RJ11 connector |
| Data Connectivity | RJ45 Ethernet, 802.11 b/g/n WLAN |
| Key Features | |
| SIM/USIM slot behind battery | |
| Mounting point on antenna | |

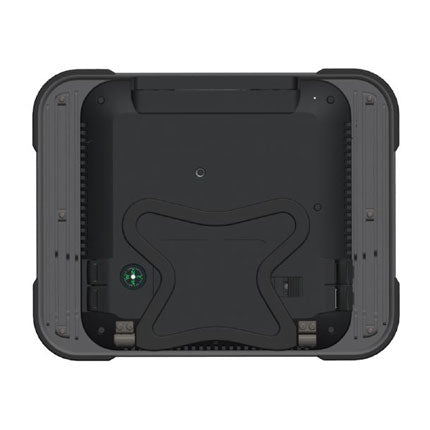

| Compass to assist pointing | |
| External antenna options | |
| Rugged and durable IP55 rating | |

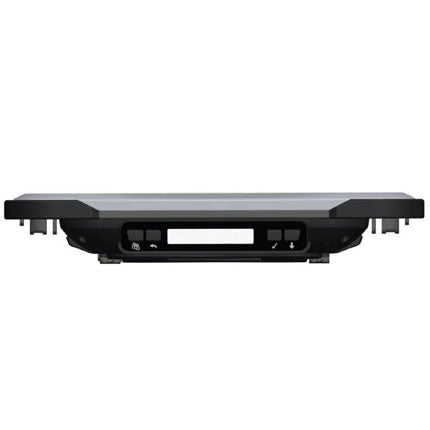

| User-friendly LCD display with four-button control | |
| 802.11 b/g/n WiFi supporting multiple user access | |
| Advanced Web user interface | |
| Automatic context activation | |
| XL-band supported | |
| External antenna options | |
| HDR streaming above 650 kbps | |
| Ethernet connection (RJ45) | |
| POTS connection for voice and fax (RJ11) | |
| External antenna connector | |
| Compass and audio tone to assist in antenna pointing | |
