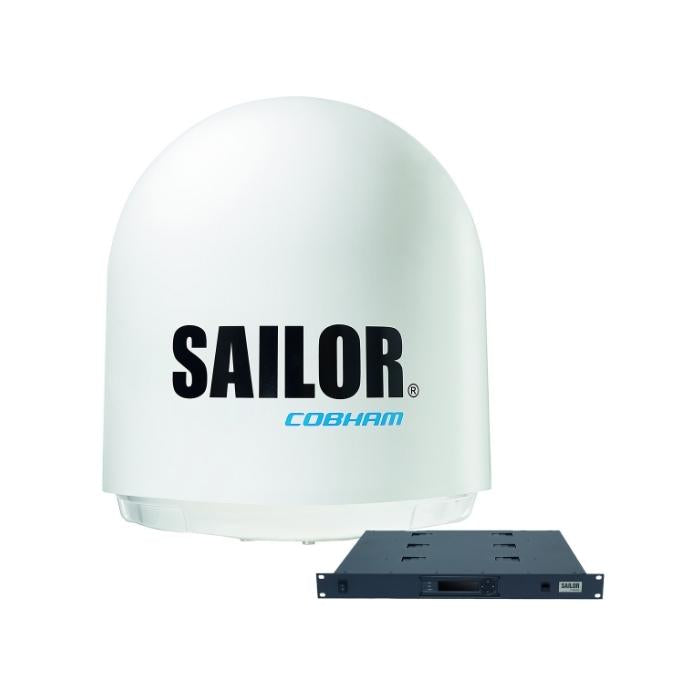

Cobham Sailor 900 VSAT Ka Satellite Broadband Terminal

Cobham Sailor 900 VSAT Ka Satellite Broadband Terminal

The Cobham Sailor 900 is a satellite broadband antenna system compatible with the Viasat Ka satellite network.  High-speed affordable and flexible airtime plans are available with this hardware for larger superyachts, leisure and commercial vessels.

Cobham Sailor 900 VSAT Ka Satellite Broadband Terminal
$0.00

Frequently Bought Together

$0.00
Total:
$0.00

Description

Cobham's Sailor 900 terminal features a 3-axis stabilised tracking antenna tested to deliver reliable and robust communications even in the harshest environments.  Suitable for leisure and commercial vessels, the Sailor 600 offers service across North America, Central America, the Caribbean and Europe.



Cobham is renowned internationally for their high build quality and the Sailor 600 is no exception - constructed to the same high standards Cobham continue to achieve over their 40 year history in the communications industry.



Easily installed with just a single cable required between the antenna and below deck unit.



We partner with Viasat to offer this second generation broadband terminal with their flexible and affordable airtime service plans.



Cobham Sailor 900 Package Includes:

  • 407009B Above Deck Unit (ADU), incl. 103cm reflector, 8W BUC, 2x
  • Multi-Band LNBs, OMT, Diplexer, Mounting Accessories.
  • 407016C Antenna Control Unit (ACU) with AC Power input for 19" rack mounting (1U).
  • AC Power cord
  • NMEA Multi-plug
  • 2x 1m 75 Ohm coax cable TX/RX ACU-VMU.
  • Ethernet cable
Read More
Read Less

Features

files/Voice_Icon_784755b1-231f-4f6f-8064-38497a384704.png

VOICE

files/Data_Icon_6d3dec66-c03c-4029-9f27-b38cbc58dff7.png

HIGH SPEED DATA

files/Ku_Ka_Band_IconIcon_37e139cc-a9a7-4830-97a4-a6a387eb9901.png

KA BAND

Subscriptions

Viasat Commercial Maritime Airtime Plans



All plans offer no speed limits or data caps.



Number of Crew/Guests: Up to 10 Up to 25 25-50 50-100

Pro Service

Suitable for VPN & professional video calling

$3,495 $5,695 $8,995 $14,395

SD Service

Suitable for SD streaming and personal video calling

$2,395 $4,495 $7,195 $11,495

Browse Service

Suitable for browsing, emails, messaging

$1,595 $2,895 $4,495 $7,195



Priority may lower after certain amount of data usage.  Contact us for more details.



Viasat Leisure Maritime Airtime Plans (Using Sailor 900 Terminal)



All plans offer no speed limits or data caps.



  Up to 8 Guests/Crew Up to 12 Guests/Crew Up to 24 Guests/Crew
Monthly Fee $2,995 $4,995 $9,995
Suitable For SD Video to small/medium screens  SD Video to small/medium screens HD Video to small/medium/large screens
Data Unlimited Unlimited Unlimited



Priority may lower after certain amount of data usage.  Contact us for more details.

Specifications

Specification
Dimensions

Height: H 150 cm / 58.9” Diameter: Ø 130 cm / 51.3”

Weight

(Ku/Ka convertible)
126.5 Kgs. / 279 lbs.

Weight (Ku Optimised)
137 Kgs. / 302 lbs.

Frequency band

Ku-Band optimised or Ku/Ka-Band convertible
RX10.70 to 12.75 GHz

TX 13.75 to 14.50 GHz (extended band)

Reflector size

103 cm / 40.6”

Type approvals

Viasat / Eutelsat

Certification Compliant with CE (Maritime), ETSI
System power
supply range
100-240 VAC, 50-60 Hz
Total system power
consumption
480 W peak, 320 W typical
Satellite acquisition Automatic - with Gyro/GPS Compass input. Support
for gyro free operation.
Environmental Conditions Humidity
100%, condensing
Rain / IP class
EN60945 Exposed / IP56
Wind
80 kt. operational 110 kt. survival
Ice, survival
25 mm / 1”
Solar radiation
1120 W/m2 to MIL-STD-810F 505.4
