Model Number: ISD715
The Magnetic Active Antenna for IsatDock is designed for transport /land based applications and works with IsatDocks for Inmarsat Satellite Phones and tracking applications.
Inmarsat IsatPhone 2 Satellite Phone is not included.

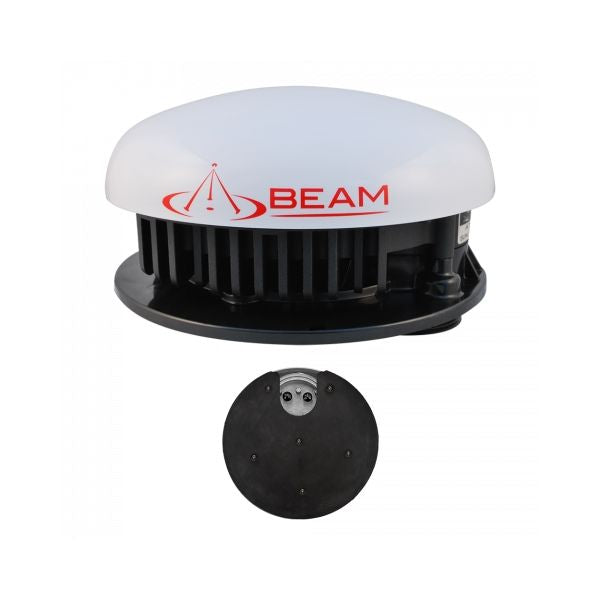

The Magnetic Mount Transport Active Antenna for IsatDock (ISD715) is designed for transport /land based applications and works with IsatDocks and tracking applications.
The antenna cable connection is protected from the environment with its outer enclosure.

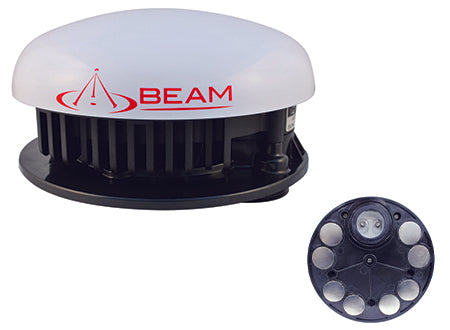

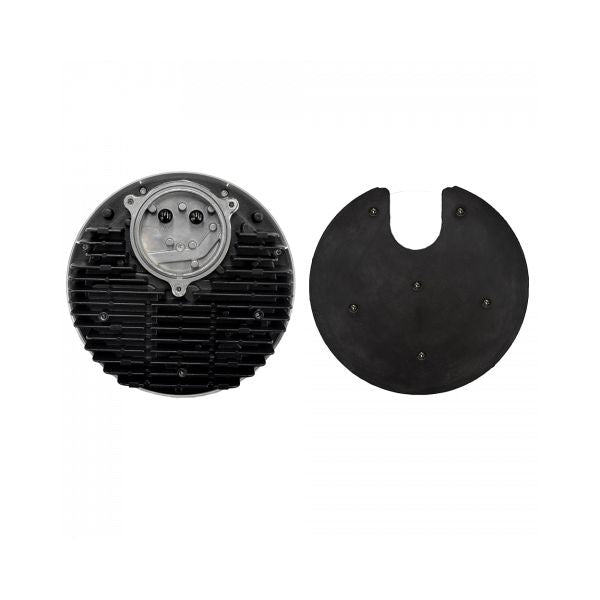

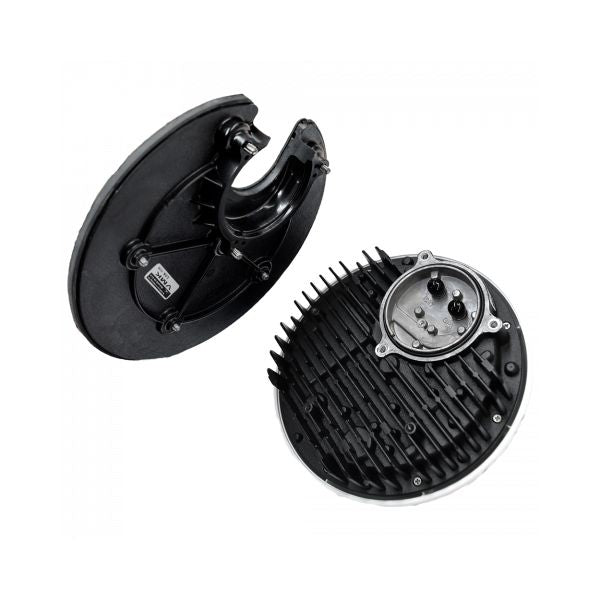

The ISD715 has a magnetic mount and this makes the antenna very easy to install and move from asset to asset and doesn’t require any holes to be drilled for fitting. Additionally, the antenna is designed to allow side entry for the antenna cables as to not interfere with the magnetic base when it is affixed to the vehicle.
The ISD715 works with all of the Beam Inmarsat IsatDock’s and Oceana terminals but must only be used with Beam certified ACTIVE antenna cables.
| General Specifications | |
| Dimensions | 7.5 x 14.6 x 14.6 cm |
| Weight | 870g |
| RF Output Impedance | 50 Ohms |
| Inmarsat Transmit (operational) | 1626.5 to 1660.5 MHz |
| Inmarsat Transmit (extended) | 1668.0 to 1675.0 |
| Inmarsat Receive (operational) | 1525.0 to 1559.0 MHz |
| Inmarsat Receive (entended) | 1518.0 to 1525.0 MHz |
