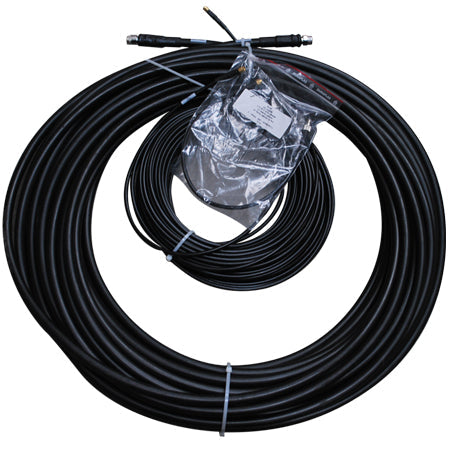

Beam 50m IsatDock/Terra SMA/TNC Passive Cable Kit
$1,800.25
Part Number: ISD941
The BEAM Inmarsat SMA/TNC antenna cable kit (50m / 164ft) provides a flexible installation option for fixed installations with the ISD700 antenna.
Description
What is Included?
- Inmarsat Antenna Cable (50m)
- GPS Antenna Cable (50m)
Key Features:
- Provides a flexible installation option for fixed installations with the ISD700 antenna
- Compatible with IsatDock/Terra
- Pre-terminated with SMA/TNC connectors
*Note: ONLY for use with the ISD700 Passive Antenna.
Read More
Specifications
| General Specifications | |
| Cable Kit Length | 50m / 164 ft |
| Cable Kit Weight | 30 kg / 66.14 lbs |
| Inmarsat Cable | |
| SAT Cable Length | Passive 49.5m SAT TNC(m)-TNC(m) |
| Connector Diameter |
1.9 cm / 0.75" |
| Cable Diameter |
1.49 cm / 0.59" |
| Thickest Diameter |
2.2 cm / 0.87" |
| Bend Radius Single |
3.8 cm / 1.5" |
| Bend Radius Repeat |
15.2 cm / 5.98" |
| GPS Cable | |
| GPS Cable Length | Passive 50m GPS SMA(m)-SMA(m) |
| Connector Diameter | 0.82 cm / 0.32" |
| Cable Diameter | 0.9 cm / 0.35" |
| Thickest Diameter | 0.76 cm / 0.3" |
| Bend Radius Single | 2.2 cm / 0.87" |
| Bend Radius Repeat | 7.62 cm / 3" |
