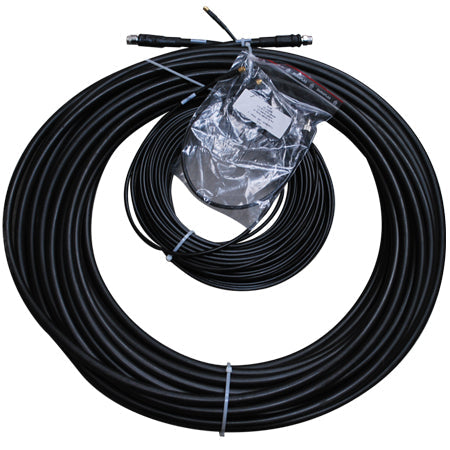

Beam 40m IsatDock/Terra SMA/TNC Passive Cable Kit
$1,106.75
Part Number: ISD940
The BEAM Inmarsat SMA/TNC antenna cable kit (40m / 131ft) provides a flexible installation option for fixed installations with the ISD700 antenna.
Description
What is Included?
- Inmarsat Antenna Cable (40m)
- GPS Antenna Cable (40m)
Key Features:
- Compatible with IsatDock/Terra
- Provides a flexible installation option for fixed installations with the ISD700 antenna.
- Pre-terminated with SMA/TNC connectors.
*Note: ONLY for use with the ISD700 Passive Antenna.
Read More
Specifications
| General Specifications | |
| Cable Kit Length | 40m / 131 ft |
| Cable Kit Weight | 25kg / 55.12Ibs |
| Inmarsat Cable | |
| SAT Cable Length | Passive 39.5m SAT TNC(m)-TNC(m) |
| Connector Diameter |
1.9 cm / 0.75" |
| Cable Diameter |
1.49 cm / 0.59" |
| Thickest Diameter |
2.2cm / 0.87" |
| Bend Radius Single |
3.8 cm / 1.5" |
| Bend Radius Repeat |
15.2 cm / 5.98" |
| GPS Cable | |
| GPS Cable Length | Passive 40m GPS SMA(m)-SMA(m) |
| Connector Diameter | 0.81 cm / 0.32" |
| Cable Diameter | 0.9 cm / 0.35" |
| Thickest Diameter | 0.61 cm / 0.24" |
| Bend Radius Single | 1.91 cm / 0.75" |
| Bend Radius Repeat | 6.35 cm / 2.5" |
| Fly Lead Inmarsat Cable | |
| Fly Lead Inmarsat Cable Length | Adaptor 1 50cm TNC(f)-SMA(m) |
| Connector Diameter | 1.37 cm / 0.54" |
| Cable Diameter | 0.61 cm / 0.24" |
| Thickest Diameter | 1.4 cm / 0.55" |
| Bend Radius Single | 1.91 cm / 0.75" |
| Bend Radius Repeat | N/A |
