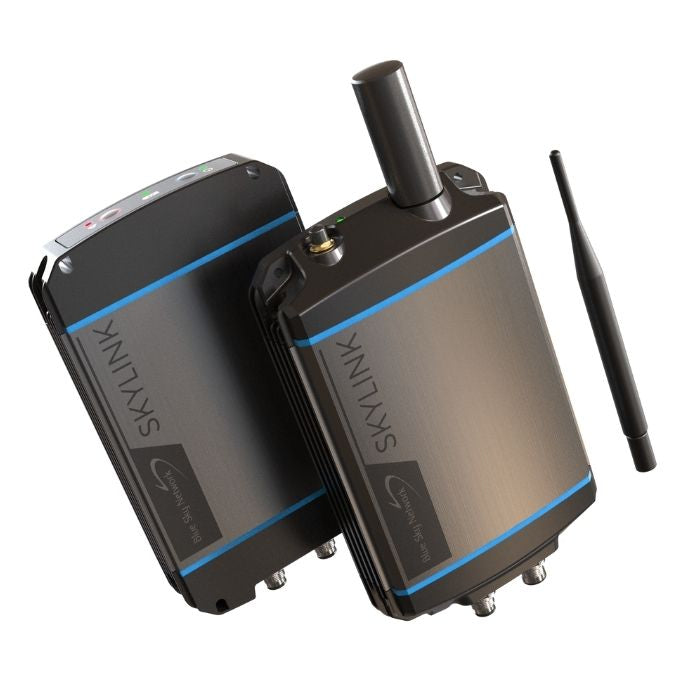

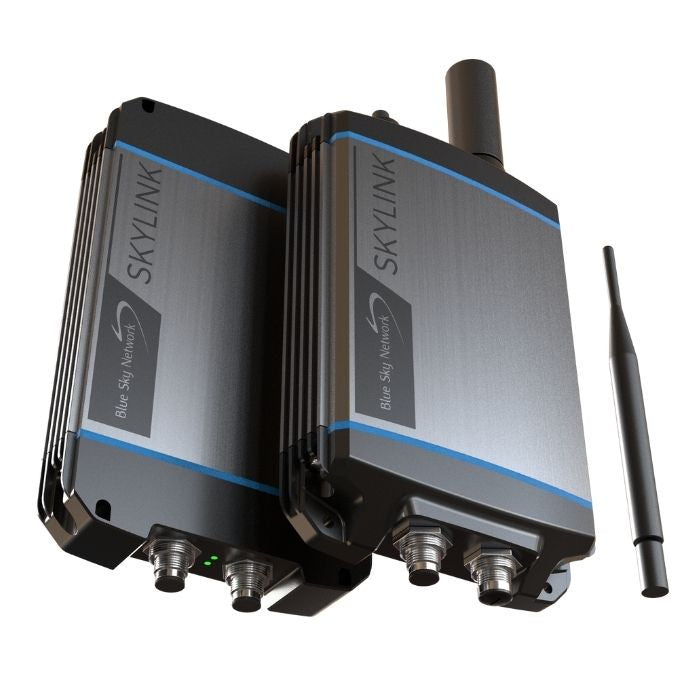

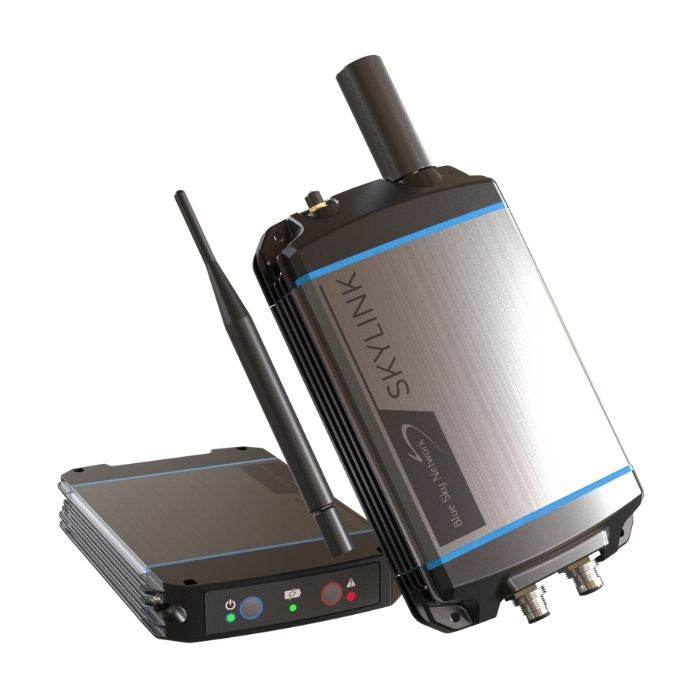

Skylink 5100 is an entry level Iridium Certus device offering global voice and data coverage with speeds of up to 88kbps. The device also has cellular capability allowing least cost routing. Suitable for mounting on vehicles, remote offices or to be used as an IoT device, Skylink works with an intuitive app to provide asset tracking around the world.
SkyLink 5100 has been designed and developed by Blue Sky Network, a provider of innovative satellite solutions to enable highly effective and reliable worldwide fleet, data and voice operations. Thanks to SkyLink 5100’s ability to display, capture, port and disseminate data to command centres from all assets in the field with fully uninterrupted worldwide coverage, it’s easy to see why it’s such a popular choice.
Blue Sky Network’s SkyLink 5100 offers an efficient and cutting edge land-based IP data and voice solution by delivering next-gen satellite connectivity to all locations anywhere on the Earth. This versatile and compact communication terminal takes its operational power from the new Iridium Certus network to provide enterprise-grade remote monitoring, voice and data connections.
Since it is a fully certified Iridium Connected product, Skylink 5100 has been designed for total safety, continuity of coverage and business efficiency, while its slim and compact design allows easy mounting on both mobile and fixed units in order to transfer data in real time from IoT/M2M monitoring tools, asset utilisation and existing sensors.
It can be mounted vertically or horizontally for extra flexibility and versatility, and has a remote antenna. As it measures just 5” x 8” x 1.25”, and weighing only 1 lb, this device is a perfect choice in a wide range of scenarios. It can also be powered in numerous ways including via vehicle ignition, AC/DC adapter or power over Ethernet with an input power requirement of 10 – 34 VDC.
Capable of operating at temperatures of between -40°C - +70°C, this communications platform is suitable for use in a wide range of physical environments and as it is also IP67 compliant, it is perfect for all outdoor installations. It is also compatible with an optional long-life backup battery to extend its operational time exponentially and ensure longer lasting functionality when out in the field.
When used in the field, the SkyLink 5100 is an efficient and portable media sharing and communications platform that allows mission critical updates to be sent to and from frontline and remote workers within a host of industries and sectors.
Ideal for use in vehicles thanks to its remote capabilities, the SkyLink 5100 can also be used in buildings and fixed locations around the world, while its ability to function in even extreme environments and remote locations makes it an excellent communications choice when connecting with lone and remote workers.
Essentially, the SkyLink 5100 enables total connectivity between all assets in all locations worldwide thanks to its 88 kbps download and 22 kbps upload functionality. Operating via cellular LTE, 2G and 3G networks and using a least cost routing method, the SkyLink boasts GNSS positioning as well as Bluetooth and Wi-Fi connectivity for extra convenience. Its local firewall ensures additional security while its two Iridium voice lines, hosted applications and configuration, usage and status monitoring ensure optimal functionality at all times.
| Specification | |
| Size | (Dual mode data gateway): 5 x 8 x 1.25 in (127 x 203 x 32 mm) (Communications companion, optional): 5 x 8 x 1.25 in (127 x 203 x 32 mm) |
| Weight | 1 lb (0.45 kg) |
| Power | Vehicle ignition, Power over Ethernet, AC/DC adapter |
| Input power | 10 - 34 VDC |
| Output power | 18W peak power, 7W nominal |
| Operational temperature | -40°C - +70°C |
| Battery | Long life backup battery (optional) |
| IP Rating | IP67 compliant for outdoor installation |
| Mounting options | Vertical, Horizontal, Remote Antenna |
| Connectivity |
• Iridium Certus 100 services – 88 kbps DL / 22 kbps UL |
