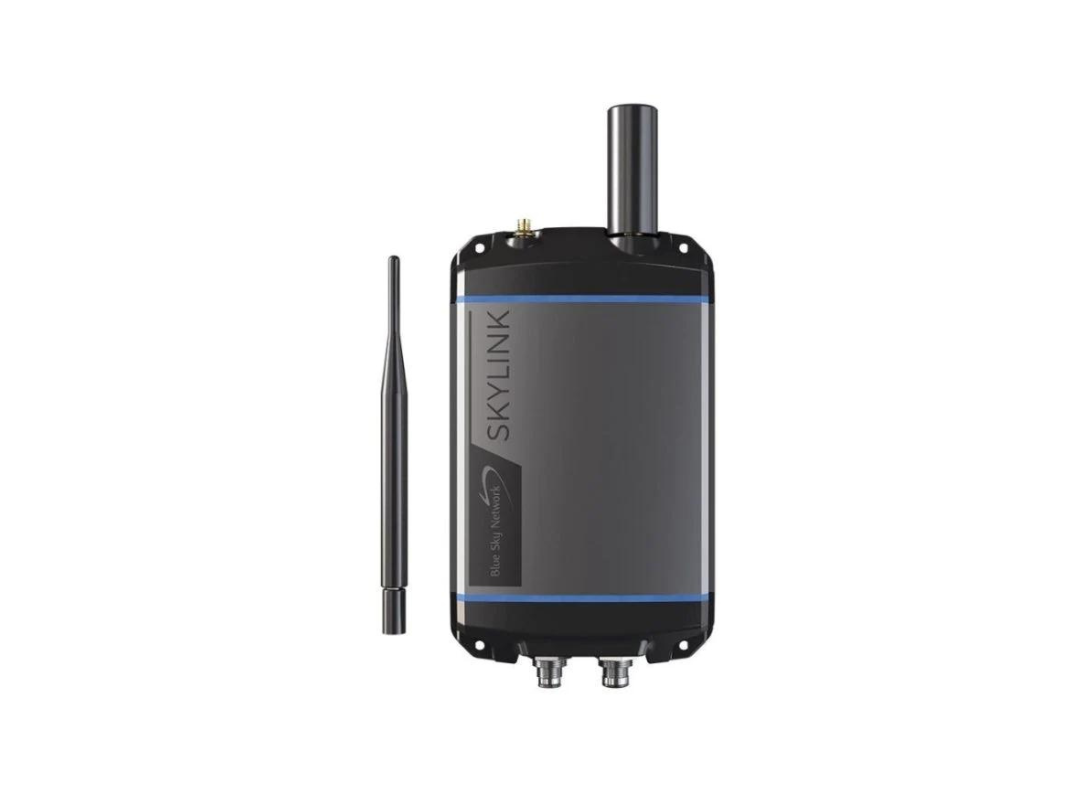

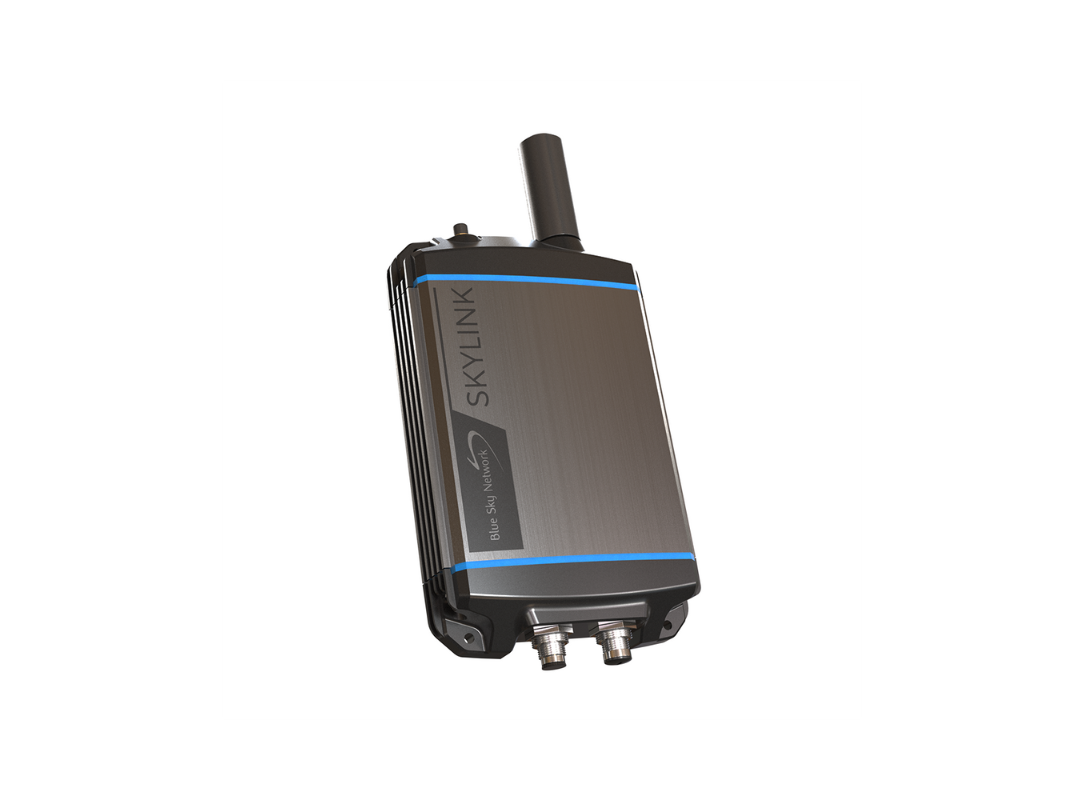

The SkyLink 5100 (IoT) is a land-based voice and IP data solution powered by the world’s leading L-band mobile satellite service, Iridium Certus. Built for assets management, the 5100 (IoT) can be used in industries and applications from Agriculture to Oil & Gas, offering SCADA capabilities plus Edge computing and many more.
This compact, highly intelligent IoT device, built by satellite communications pioneers, Blue Sky Network, is a top-quality option for asset management due to its sensor technology and continuous connectivity ability through the globally-reaching Iridium satellite network. From the world’s most remote areas to thriving smart cities or environmental monitoring, the SkyLink 5100 (IoT) offers SCADA transfer, Edge computing, and internet/VPN access.
Monitor high-value assets in real-time as they move in and out of satellite and cellular network coverage with the SkyLink 5100 (IoT)’s dual-mode. But it isn’t just intelligent, it’s tough too, with an IP65 rating, making it ideal for outdoor use where it can handle temperatures as low as -40°C and as high as +70°C.
Designed purely for business efficiency and seamless coverage, this ultra-portable device can deliver vital communication and data alerts to and from frontline workers, achieving next-level connectivity for every asset, in any location across the globe.
| Specification | |
| Size | 8 x 5 x1.5 in (12.7 x 20.3 x 3.2 cm) |
| Weight | 1.6lb (0.7 kg) |
| Power | 18W peak power, 7W nominal |
| Input power | 10 - 34 VDC |
| Operational temperature | -40°C to +70°C |
| IP Rating | IP65 compliance for outdoor use |
| Frequency | 1616 MHz – 1626.5 MHz |
| Connectivity |
• Iridium Certus 100 services: 88 kbps DL / 22 kbps UL • Cellular: LTE-A CAT 6 – 300 Mbps DL / 50 Mbps UL • Least cost routing • Ethernet, USB, RS232 • GNSS positioning/tracking • Application hosting • Remote device management • Diagnostics and health monitoring • Data analytics and Edge Computing • Tracking with SkyRouter™ fleet management • External inputs and outputs (when paired with the Communications Companion) |
