$221.66
Part Number: 60601-063

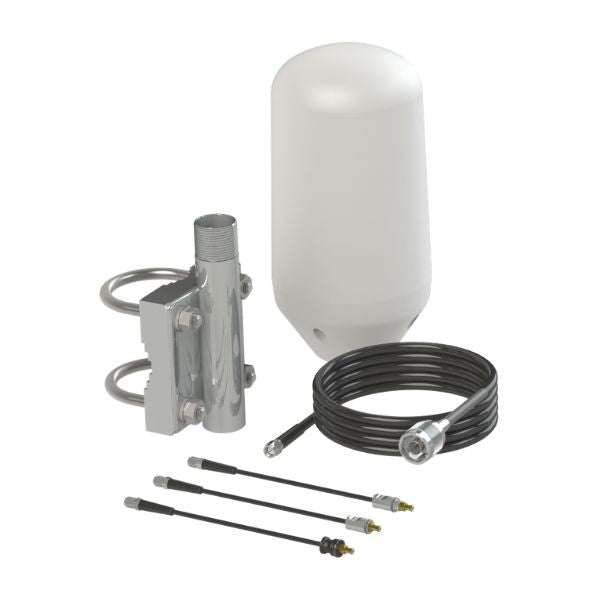

The Scan Antenna Thuraya Passive Omnidirectional Marine Antenna Kit with Rail Mount (8m) enables you to use your Thuraya satellite phone in a marine environment.
This passive antenna for Thuraya satellite phones enables you to use your satellite phone in a marine environment. The Marine antenna will automatically direct itself towards the Thuraya satellites allowing easy setup while the IP66 Ingress Protection rating enables functionality in the harshest environments.
| General Specifications | |
| Dimensions | 19.2 x 9.5 cm |
| Weight | 300g |
| Colour | White (non-glossy) |
| Frequency | 1525 - 1660.5 MHz |
| Mounting | On US-style Mounting Brackets with 1"-14NF threaded stud |
| Mounting Place | On marine vessel or landbased vehicle |
| Materials | ASA, PCB, copper and brass |
| Operating Temperature | -40C to +70C |
| Connector | N-female (Antenna) |
| IP Rating | IP66 |
| Electrical Specifications | |
| Impedance | 50 ohm |
| Polarisation | LHCP |
| Axial Ratio | < 6 dB |
| Gain | 2 dBic |
