Scan Antenna Mast-Rail Mount 1''-14
$42.66
Part Number: 10000‐123

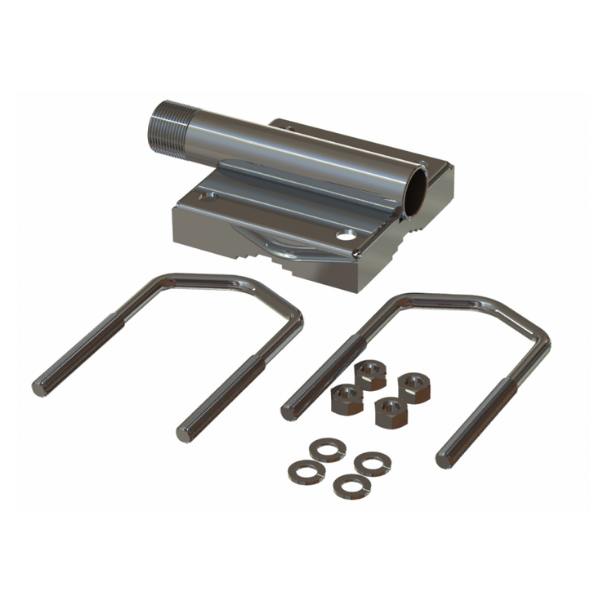

The Scan Antenna Mast/Rail Mount is a heavy duty bracket ideal for the installation of Marine and Base Station antennas on vertical or horizontal pole.
Description
The Scan Antenna Mast/Rail Mount is a heavy duty bracket ideal for the installation of Marine and Base Station antennas on vertical or horizontal pole.

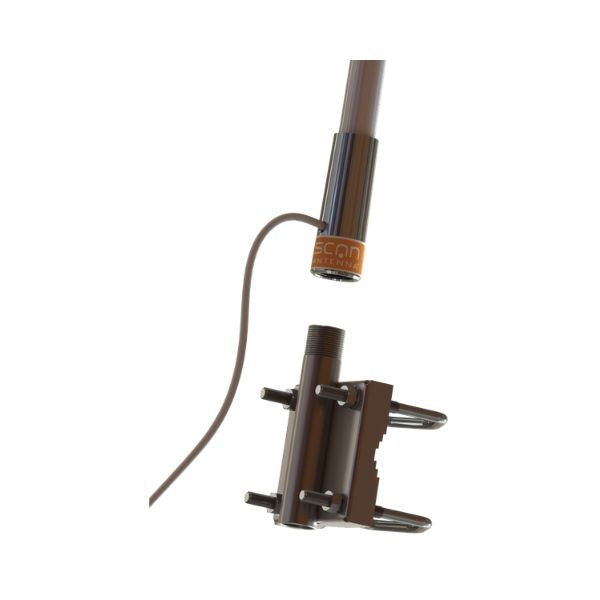

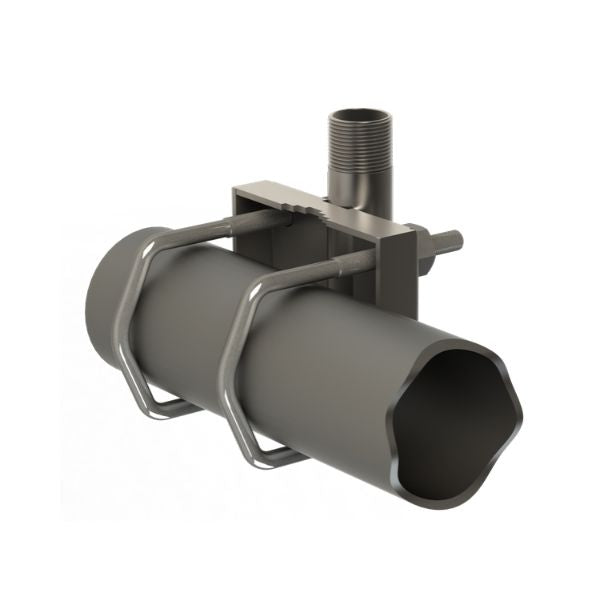

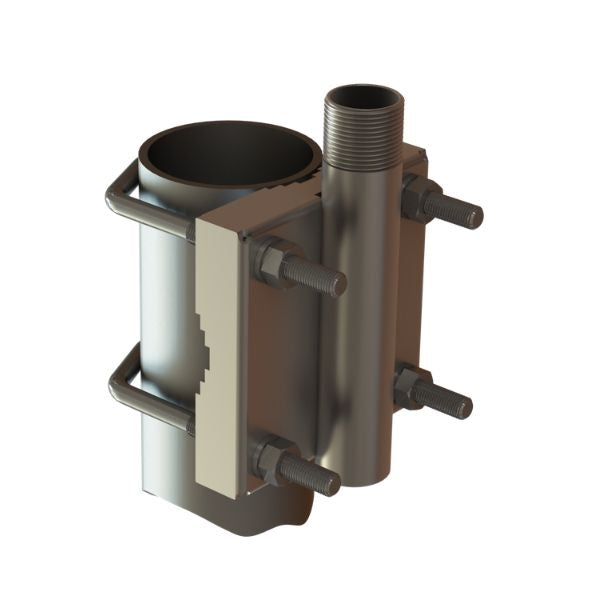

The bracket is mounted vertically overhead or on side of poles Ø 38 - 60 mm and horizontally on side beams Ø 30 - 60 mm. Optionally it can be mounted on wall Stainless steel hardware included.
Read More
Specifications
| General Specifications | |

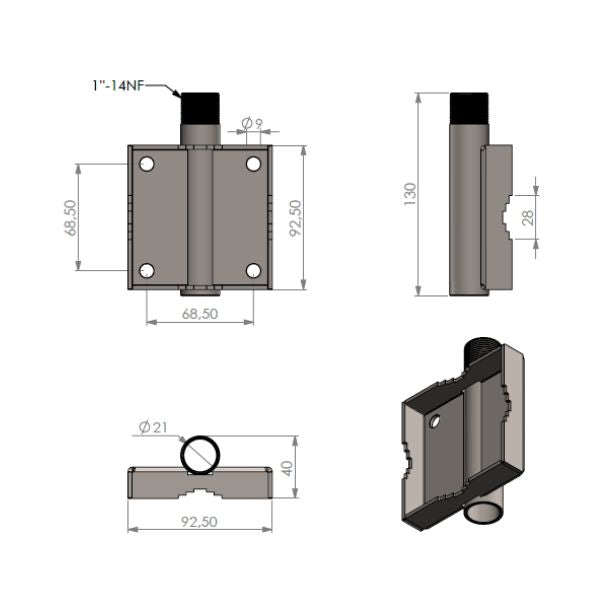

| Dimensions | 12.2 x 8.65 x 6.5cm |
| Weight | 660g (Mounting hardware included) |
| Mounting | On pole with supplied U-bolts |
| Mounting Place | On vertical or horizontal pole Ø 38 - 60 mm (optionally on wall) |
| Compatible Antennas | All Marine and Base Station antennas with 1"-14NF threaded base |
