Queclink GV500N GSM/GPS Tracker

Queclink GV500N GSM/GPS Tracker


The GV500 is a compact vehicle tracking device that plugs into a vehicle's OBDII so that location can be monitored in real time or periodically tracked by a backend server and mobile devices.

The Queclink GV500N USB Cable is required to upgrade firmware and configure your device.

Queclink GV500N GSM/GPS Tracker

Frequently Bought Together



The Queclink GV500 is a vehicle tracking device that plugs into a vehicle's OBDII port. Its compact design allows easy installation. Its internal OBD reader can obtain information from the vehicle's on-board computer and relay it over GPRS networks.

The Queclink GV500 features:

Its built-in GPS receiver has superior sensitivity and fast time to first fix.

Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the Queclink GV500's location to be monitored in real time or periodically tracked by a backend server and mobile devices.

Its built-in 3-axis accelerometer allows motion detection and extends backup battery life through sophisticated power management algorithms.

The current and past movements of the device can be viewed on a Google Earth interface through our online mapping portal, orbitaltrack.com.

If you are interested in activating your device with OSAT please complete the contract on this link.

OSAT Track Compatible

Our online mapping portal can track your Queclink GV500 to provide real-time information via your GPS location. Any person provided with the login can become an operator to monitor any number of GSM or satellite assets simultaneously in-real time and historically on both the Basic and Professional plans.

Key benefits include:

  • Geo-Fencing capabilities (Professional Plan only)
  • Alert options available, with varying degrees of urgency for operator and device holder
  • Global Tracking
  • Multiple layer options and map views
  • Inclusive to all devices with GPS tracking capabilities
  • Past-tracking data points are always accessible, until the device is de-activated
  • Mapping and asset grouping customisation options are available
  • Data Reporting and Scheduling functions
  • Notifications and alerts can be sent directly to the holder of the device

OSAT Track Basic Mapping

Available from just £6.50 ex VAT a month per device and provides location-based data from your device to the online maps. The tracking equipment determines its location by triangulating a position using GPS (Global Positioning System) and then transmits this information via GSM, Satellite, or VHF to a central server for processing.
  • Suitable for users with single devices
  • Excludes Geo-Fencing
  • Pay upfront annually to receive a discounted subscription of £65 ex VAT per year

OSAT Track Professional Mapping

Available from just £12.50 ex VAT month per device and allows you to track multiple devices on the same map in addition to features available on the Basic plan. This plan is essential for businesses or organisers managing multiple devices to be able to track the movements of individuals and assets.
  • Suitable for users requiring access to multiple devices under one login
  • Inlcudes Geo-Fencing
  • Fee is applicable per device
  • Pay upfront annually to receive a discounted subscription of £140 ex VAT per year

Find out more about OSAT Track >

Read More
Read Less







Service Up to 100MB 100-500MB Over 500MB
Minimum Duration 1 Month* 1 Month* 1 Month*
Activation Fee £5.00 £5.00 £5.00
Minimum Monthly Fee** £0.50 £2.50 £8.50
Monthly Fee £3.00 £4.00 £10.00
Inclusive MB Up to 100MB 100-500MB Over 500MB

Out of Bundle Charges

SMS (Per Message) £0.25 £0.25

Optional Mapping Charges

OSAT Track Basic £7.25 £7.25 £7.25
OSAT Track Pro £13.50 £13.50 £13.50

*Minimum Duration: Upon activation, subscription fee and/or allowance will be pro‐rated for 1st month. Once deactivation is requested via email, subscription fee and/or allowance are not pro‐rated.

**Minimum Monthly Fee: If SIM is suspended, the minimum monthly subscription fee will continue to be charged. No roll‐over of unused minutes is permitted from one billing period to the next. Please send your request to suspend the SIM via email.


General Specifications

Dimensions 4.8 x 2.5 x 4.8 cm
Weight 42g approx.
Backup Battery Li-Polymer 250 mAh
Standby Time (without reporting) 50 hours
Standby Time (5 minutes reporting) 27 hours
Standby Time (10 minutes reporting) 30 hours
Operating Voltage 8V to 32V DC
Operating Temperature (without battery) -30? ~ +80?
Operating Temperature (with battery) -40? ~ +85? for storage

GSM Specifications


Quad band - 850/900/1800/1900 MHz

Compliant to GSM phase 2/2+

Frequency - Class 4 2W @ 850/900 MHz
Frequency - Class 1 1W @ 1800/1900 MHz
GPRS  GPRS multi-slot class 12
GPRS  GPRS mobile station class B
RMS Phase Error 5 deg
Max Out RF Power GSM850/GSM900: 33.0±2 dBm
Max Out RF Power DCS/PCS: 30.0±2 dBm
Dynamic Input Range -15 ~ -108 dBm
Stability Of Frequency  < 2.5 ppm
Max Frequency Error ±0.1 ppm

GPS Specifications

GPS Chipset 56-channel u-blox All-In-One GPS receiver
Sensitivity - Autonomous -147 dBm
Sensitivity - Hot start -156 dBm
Sensitivity - Reacquisition -160 dBm
Sensitivity - Tracking -162 dBm
Position Accuracy - Autonomous < 2.5m
Position Accuracy - SBAS < 2.0m
TTFF (Open Sky)

27s average (Cold start)

27s average (Warn start)

1s average (Hot start)

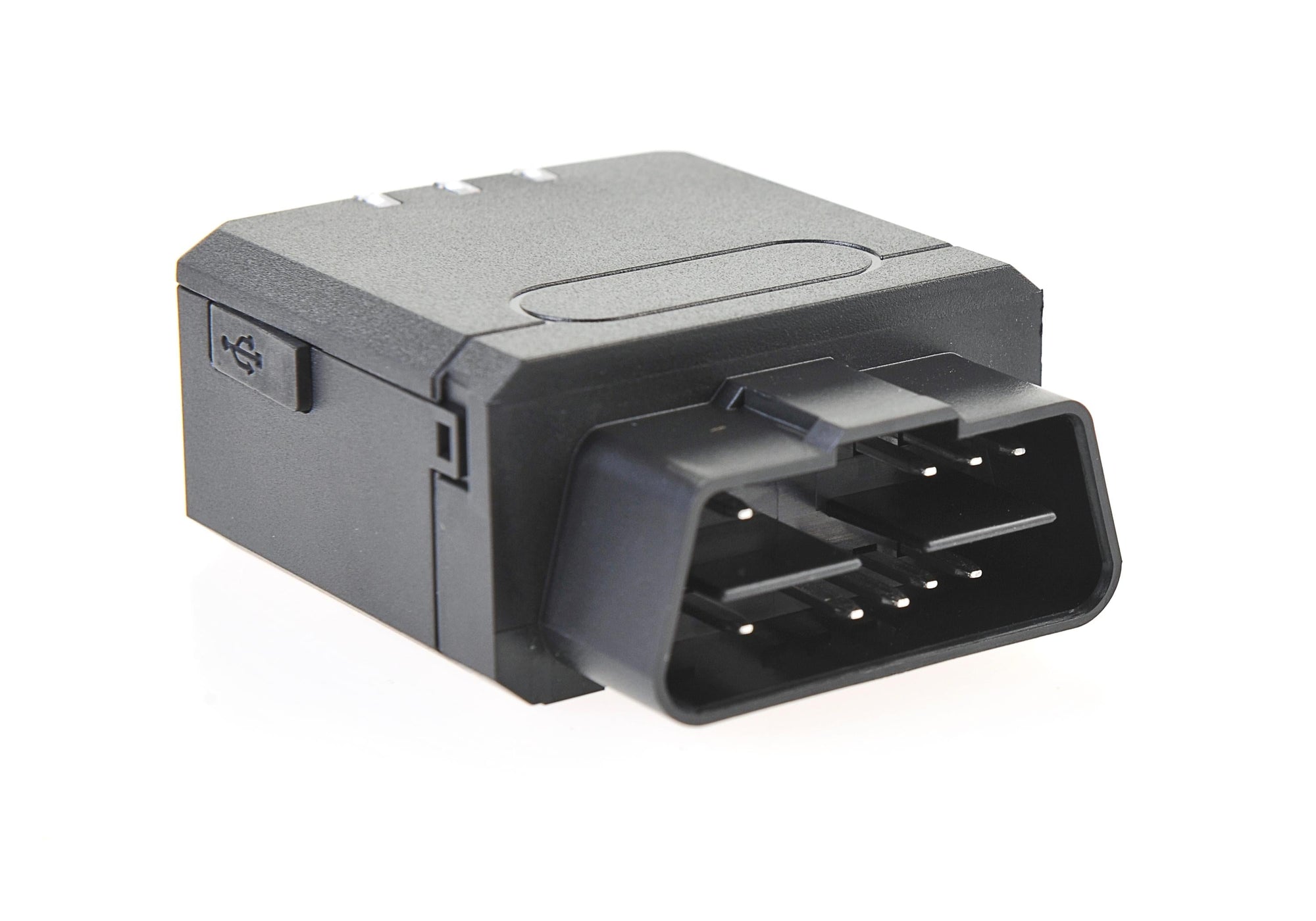

OBDII Port Allow information to be read from OBDII port, and provide device power. Protocols support: J1850 PWM, J1850 VPW, ISO 9141-2, ISO 14230, ISO 15765, J1939, CAN_USER1, CAN_USER2, VW TP2.0
GPS and GSM Antenna Both internal only

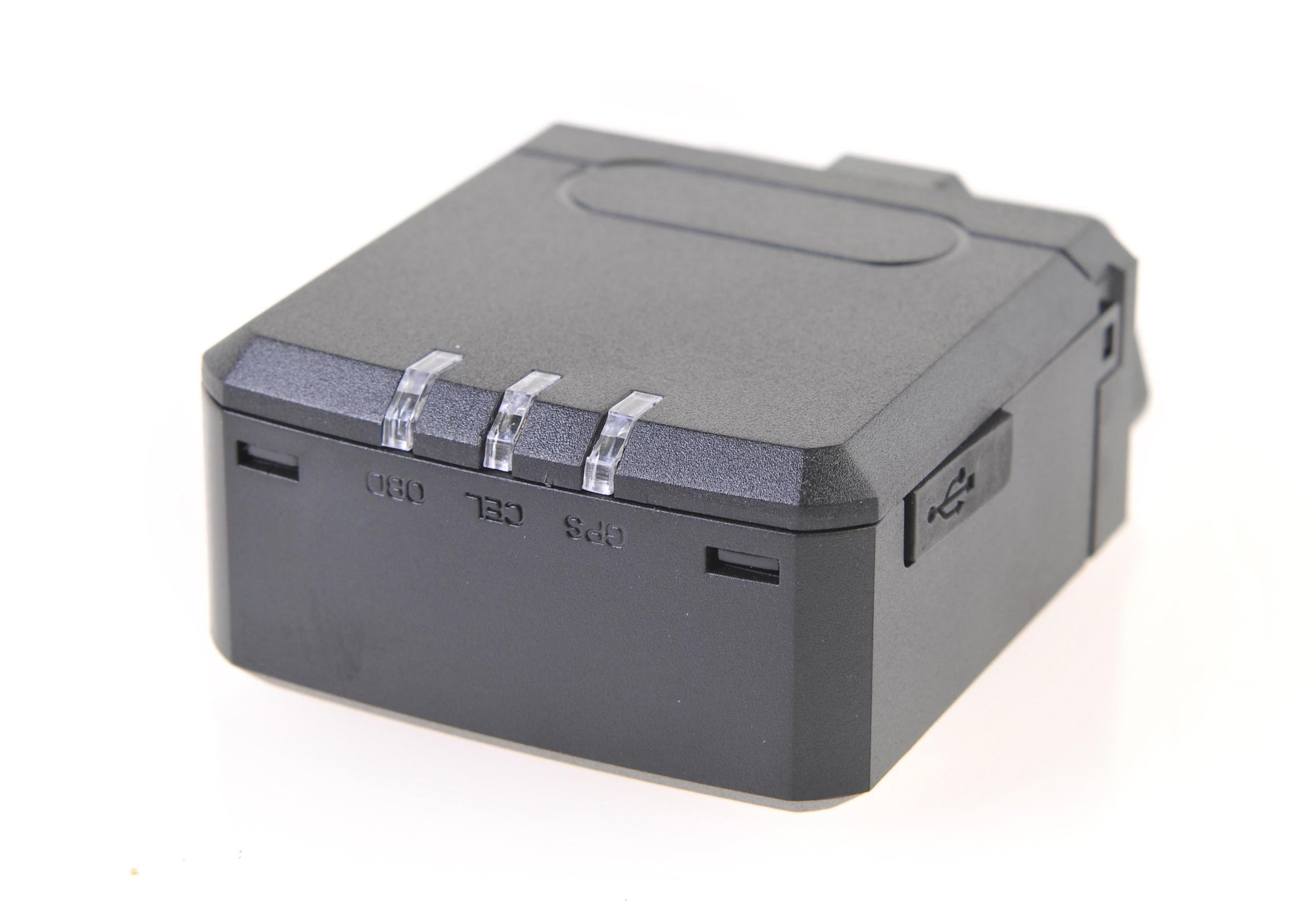

Indicator LED CEL, GPS and OBD
Mini USB Port Mini USB port for upgrading and debugging

Key Features

OBDII connectivity, easy to install
Geo-fence: Geo-fence alarm and parking alarm, support up to 5 internal geo-fence regions
Quad band GSM/GPRS frequencies 850/900/1800/1900 MHz
Wide operating voltage range 8V to 32V DC
Low Power Alarm (when backup battery is low)
Internal u-blox chipset
Low power consumption, long standby time with internal battery
Embedded full featured @Track protocol
Internal 3-axis accelerometer for power conservation and motion detection
Internal GSM and GPS antenna
FCC/CE/E-Mark certified
