Iridium Edge Satellite Asset Tracker
$361.35
Iridium Edge provides asset tracking and monitoring via satellite anywhere in the world. Easy to install and cost effective to run.
Description

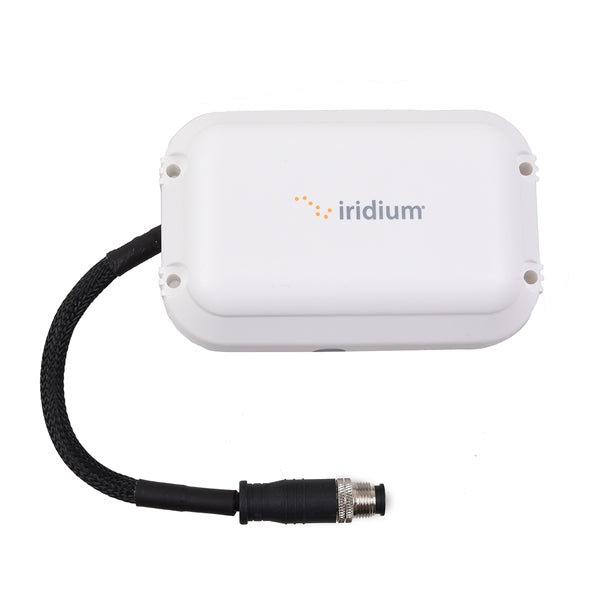

Iridium Edge provides asset tracking and monitoring via the Iridium satellite network anywhere in the world. Suitable for tracking assets such as vehicles and machinery, Iridium Edge is an all in one satellite modem, antenna and power supply making installation quick and easy.
Paired with OSAT Track, Iridium Edge will transmit GPS location reports anywhere in the world as well as reporting heading, speed and altitude. OSAT Track is an online mapping portal compatible with over 50 different GSM and satellite tracking devices. Features include advanced reporting, geofencing and email alerts (for example on high speed or geofencing).
Iridium Edge Key Features:
Coverage
With a Satellite Add-On and Iridium Short Burst Data SM (SBDSM) this modem takes advantage of Iridium’s superior global network.
Installation
The Iridium Edge is ready to install and a hardware-ready device for simple, low-risk integration.
Power Supply
The Iridium Edge has a robust power supply, which makes this device ideal for industrial installations.
OSAT Track Compatible
The Iridium Edge Satellite Tracker is compatible with OSAT Track, our advanced online mapping portal.
OSAT Track makes visible a variety of advanced tracking functions such as a breadcrumb trails of historic movements, live view (position of last message transmitted) and alarm and input alerts. Asset locations and movements are tracked in real-time via GPS updates and available to view through a Google Earth based interface. These tracking functions are available with an additional subscription.
Key Markets for Iridium Edge
- Fleet Management
- Remote Monitoring
- SCADA
- Asset Tracking
- Maritime
Read More
Subscriptions
| Service | SBD 0 | SBD 12 | SBD 17 | SBD 30 |
| Activation Fee | FREE | $40.00 | $40.00 | $40.00 |
| Monthly Fee | $17.00 | $20.00 | $25.00 | $42.50 |
| Minimum Term | 1 Month | 1 Month | 1 Month | 1 Month |
| Suspended Monthly Fee | $2.50 | $2.50 | $2.50 | $2.50 |
| Minimum Billable Message Size | 30 Bytes | 10 Bytes | 10 Bytes | 10 Bytes |
| Inclusive Bytes per Month | 0 Bytes | 12,000 Bytes | 17,000 Bytes | 30,000 Bytes |
| Overage (per 1,000 Bytes) | $1.50 | $1.50 | $1.75 | $1.50 |
| SBD Registration/Mailbox Check | $0.05 | $0.05 | $0.05 | $0.05 |
ALL PRICES EX VAT
Specifications
| General Specifications | |
| Dimensions | 13 x 8 x 3cm |
| IP Rating | IP67 |
| Cable Exits | Side and Bottom |
| Connector | M12-8 pin male, terminated on 20cm pigtail cable |
| Installation Options | Pole, screw, tape |
| Environmental | |
| Operating Temperature Range | -40⁰c to 85⁰c |
| Storage Temperature Range | -40⁰c to 85⁰c |
| Vibration | SAE J1455, Section 4.10 |
| Network | |
| Frequency | 1616 – 1626.5 MHz |
| Message Size | 270 bytes (Receive), 340 bytes (Transmit) |
| SBD Transceiver | Iridium 9602N |
| Antenna | Integrated Iridium certified antenna |
| Certifications | |
| Iridium® Satellite Network Certification | |
| RoHS Compliant | |
| FCC, IC, CE, Australia Approvals |
| Power | |
| Power Supply | ( 9-32V), SAE J1455 Load Dump Protected |
| Maximum Power | 1.6W ( Peak for Short Transmit Burst) |
| Low Power Modes | < 200uA |
| Reverse Polarity Protection | |
| Interfaces | |
| RS232 AT Command Interface | |
| On/Off Control Lines |
Coverage
Coverage
