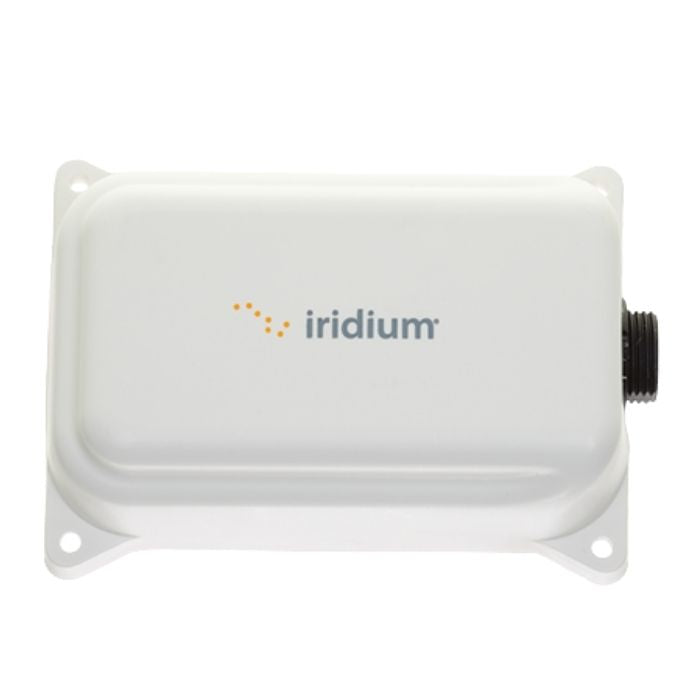

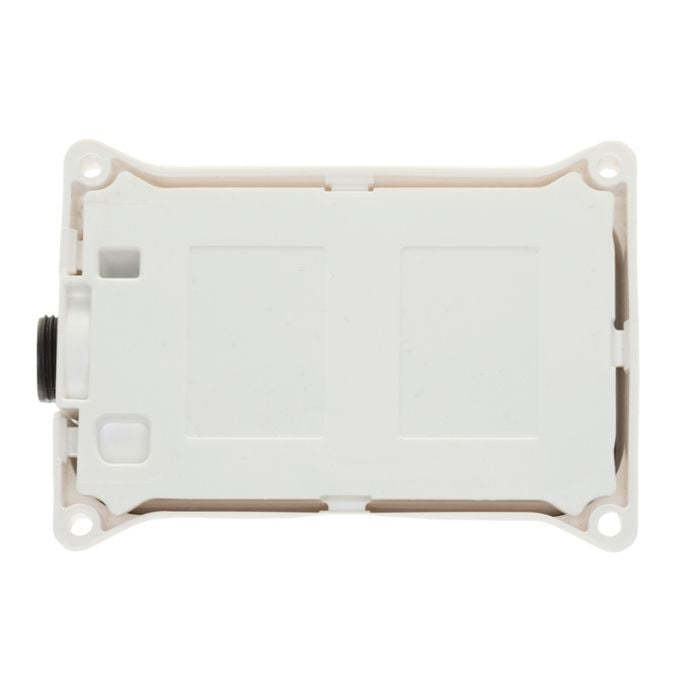

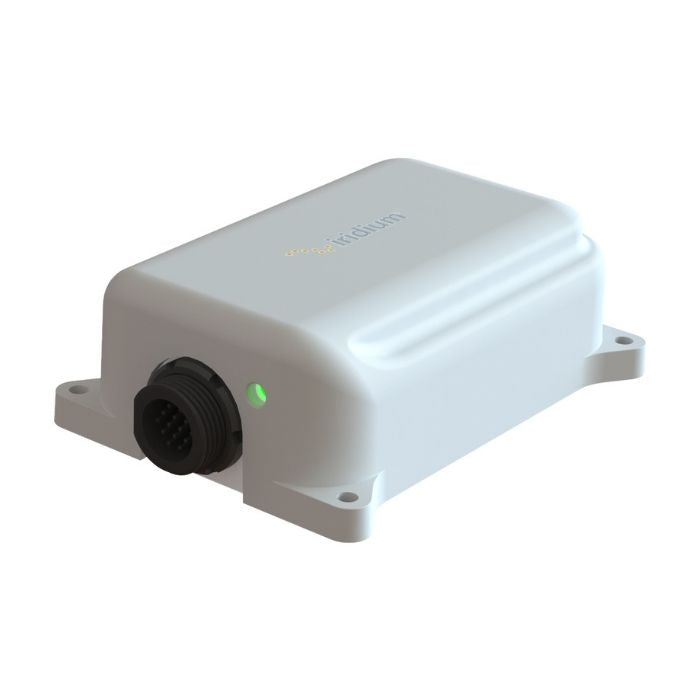

The Iridium Edge Pro is a standalone device for precise asset tracking which can be deployed immediately as it combines existing terrestrial solutions with high-tech IoT satellite communication to instantly enable the user to track any asset no matter where in the world it is.
Iridium is one of the world leaders in cutting-edge satellite communication technology. With global reach, Iridium allows individuals and companies to keep track of their assets anywhere on the planet in real-time. With the advent of the Iridium Edge Pro, the company has truly excelled in providing a highly reliable, durable and affordable product for both GPS fleet management and accurate asset tracking.
The Iridium Edge Pro is a standalone device for precise asset tracking which can be deployed immediately as it combines existing terrestrial solutions with high-tech IoT satellite communication to instantly enable the user to track any asset no matter where in the world it is. It functions with patented Short Burst Data technology which provides a real-time update on the location of any asset or vehicle backed up with the stable worldwide network of Iridium satellites which work on a low-latency.
Designed with customisation in mind, the new Iridium Edge Pro is able to be programmed to your exact specifications, giving it an advantage over the previous Iridium Edge model which requires you to integrate it with another IoT system. Create your own end-user applications and monitor remotely, track assets in transit, provide security from a distance, and manage your fleets or vessels wherever they are.
Weighing in at just 200g with small dimensions of just 127cm x 90cm, this is the perfect device to install discreetly into your vehicles or attach to an asset for enhanced security. You can connect it directly to other machines with the 18 pin female mating connector, CANBus, USB or Bluetooth, there are also 2 analog and 2 digital inputs and outputs for maximum compatibility.
It has low 32V power needs, which is enough to cover all of the built-in capabilities such as internal sensors, a temperature sensor and an accelerometer.
Iridium Edge Pro is compatible with our OSAT Track Mapping Portal - a cloud based application providing real time location updates, advanced alerts, reporting and user management. OSAT Track is compatible with numerous satellite and cellular GPS-enabled devices allowing you to view all your assets in one easy to use system.
| Plan Name | PRO Tiered 350 1K Low Usage Plan | PRO Tiered 1250 10K High Usage Plan | ||
| Minimum Duration (months) | 3 | 3 | ||
| Iridium Activation Fee | $21.00 | $21.00 | ||
| Iridium Monthly Fee | $4.90 | $17.50 | ||
| Inclusive Bytes | 1,000 | 10,000 | ||
| Suspension Fee | $1.40 | $1.40 | ||
| Tiered Monthly Data Usage Fees | ||||
| First Usage Tier | 0-1kb | - | 0-10kb | - | |
| Second Usage Tier | >1-10kb | $2.10 | >10-25kb | $0.42 | |
| Third Usage Tier | >10-25kb | $1.05 | >25-50kb | $0.28 | |
| Fourth Usage Tier | >25kb | $0.70 | >50kb | $0.14 | |
*Inclusive minutes are calculated on calls to fixed or mobile numbers. Calls to other numbers will be charged at the out-of-bundle rate. All prices are subject to VAT for billing addresses within the EU. Upon activation, the subscription fee and/or allowance will be pro-rated for the first month. Upon deactivation, the subscription fee and/or allowance are not pro-rated. If SIM is suspended, a subscription fee will continue to be charged. No rollover of unused minutes is permitted from one billing period to the next.
| Specification | |
Mechanical Specifications |
|
| Weight |
200 g |
| Dimensions | 127 X 90 x 41 mm (L x W x H) |
| Mating Connector | 18 Pin Female (Right Angle & Straight Through Options) |
| Connector Cover | Included for Additional Protection (Optional) |
Power Supply |
|
| Input Voltage | 32V |
| Load Dump | SAE J1455 Section 4.13.2.2.1 |
Interfaces |
|
|
BLE, CANBus, & USB |
|
|
(2) x Analog Input or Digital Input |
|
|
(2) x Digital Input or Output |
|
|
RS-485 & RS-232 |
|
Internal Sensors |
|
| Accelerometer | |
|
Temperature Sensor |
|
|
GPS/GLONASS/Galileo/Beidou |
|
|
Voltage Input |
|
Environmental Specifications |
|
| Storage Temperature | -40 C to 85 C |
| Operating Temperature | -40 C to 70 C |
| Operational Vibration | SAE J1455 Section 4.10 |
| Shock | 1 m Drop Test as per SAE J1455 |
| Salt Spray | AE J1455 Section 4.3.3.1 |
| Low Pressure Storage | 30,000 Feet |
| Humidity | SAE J1455 Section 4.2.3 |
| Ingress Protection | IP67 |
| Splash Testing | SAE J1455 Section 4.4.3.2 |
| Steam and Pressure Washing | SAE J1455 Section 4.5.3 |
Regulatory Standards and Compliance |
|
|
US (FCC), EU (CE MARK), CANADA(IC), ROHS |
|
|
IEC 60945 |
|
|
C1D2 Groups A, B, C, D Certification to ANSI/ISA 12.12.01-2011 |
|
