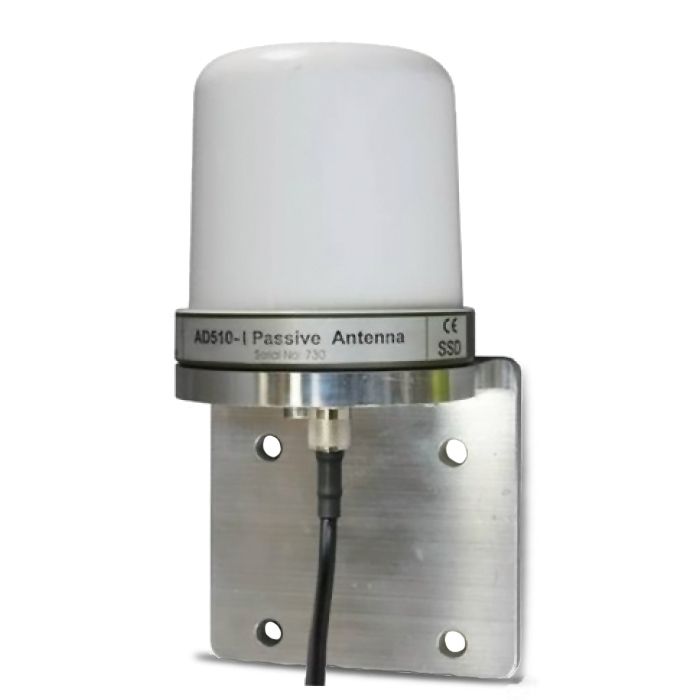

Iridium AD-510-1 Passive Antenna
$420.35
Part Number: AD-510-1
This Iridium Passive Antenna is designed to work with Iridium satellite phones and the Iridium GO! Wi-Fi hotspot.
Description
Provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments.
What is Included?
- Iridium Passive Antenna (AD510-1)
- Antenna Mounting Kit (AD510-2)
Key Features:
Compatible with Iridium devices
This passive antenna is designed to work with Iridium satellite phones and Iridium GO! Wi-fi Hotspot. Passive Antenna utilises the Iridium satellite network.
Heavy Duty Mounting Bracket
The bracket (AD510-2) provided with each antenna can be attached to vertical or horizontal spars up to 60mm in diameter using the U bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC on the underside of the antenna.
Secure Design
The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion.
Read More
Specifications
| General Specifications | |
| Dimensions | 10cm x 8.7cm |
| Weight | 1kg |
| Operating Temperature | -40°C to +85°C |
| Mounting | Vertical or horizontal spars up to 60mm in diameter |
| Connector | TNC female. |
| Frequency | 1610.00-1630.00Mhz |
