Iridium 9603 Developer's Kit
$606.33

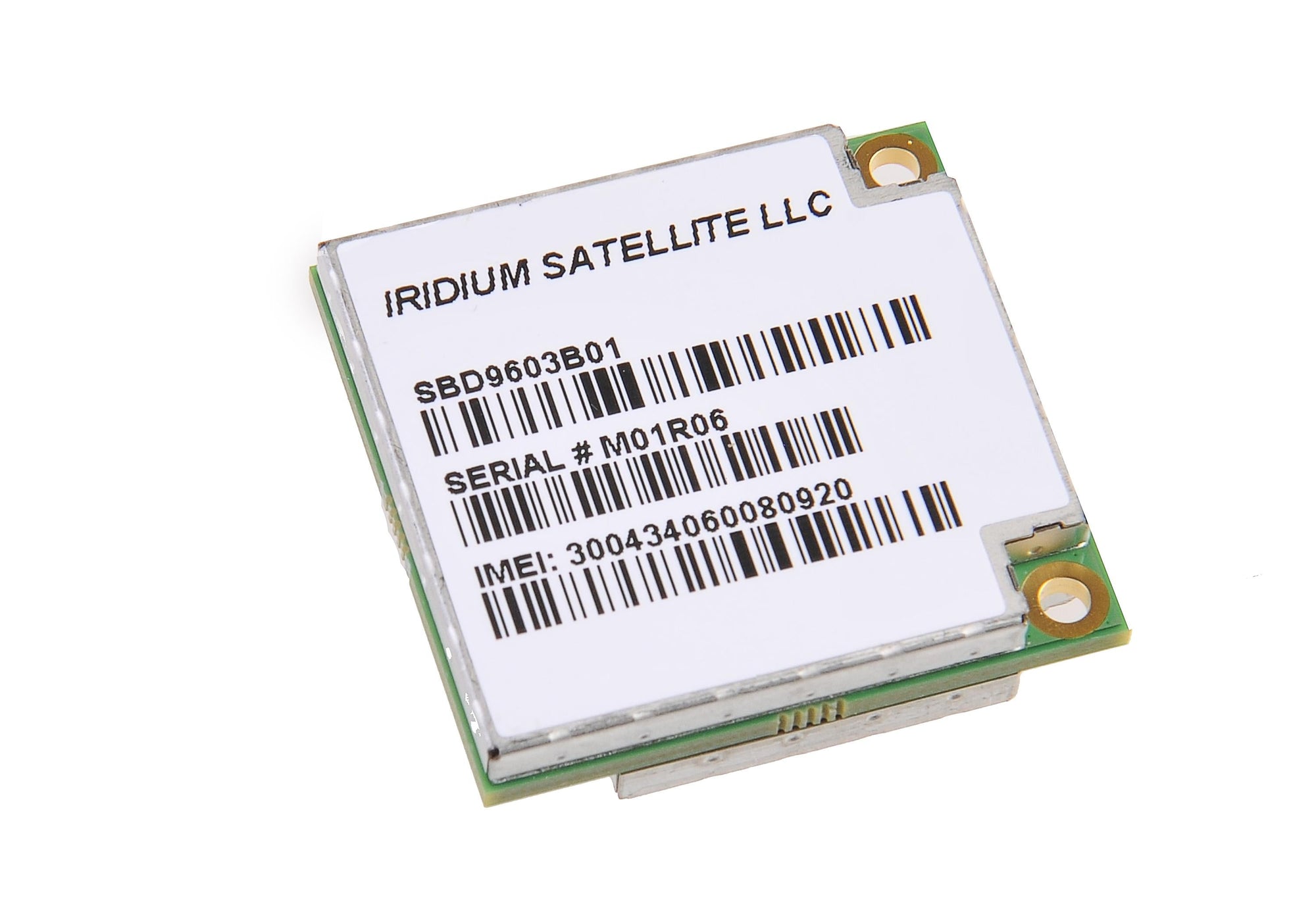

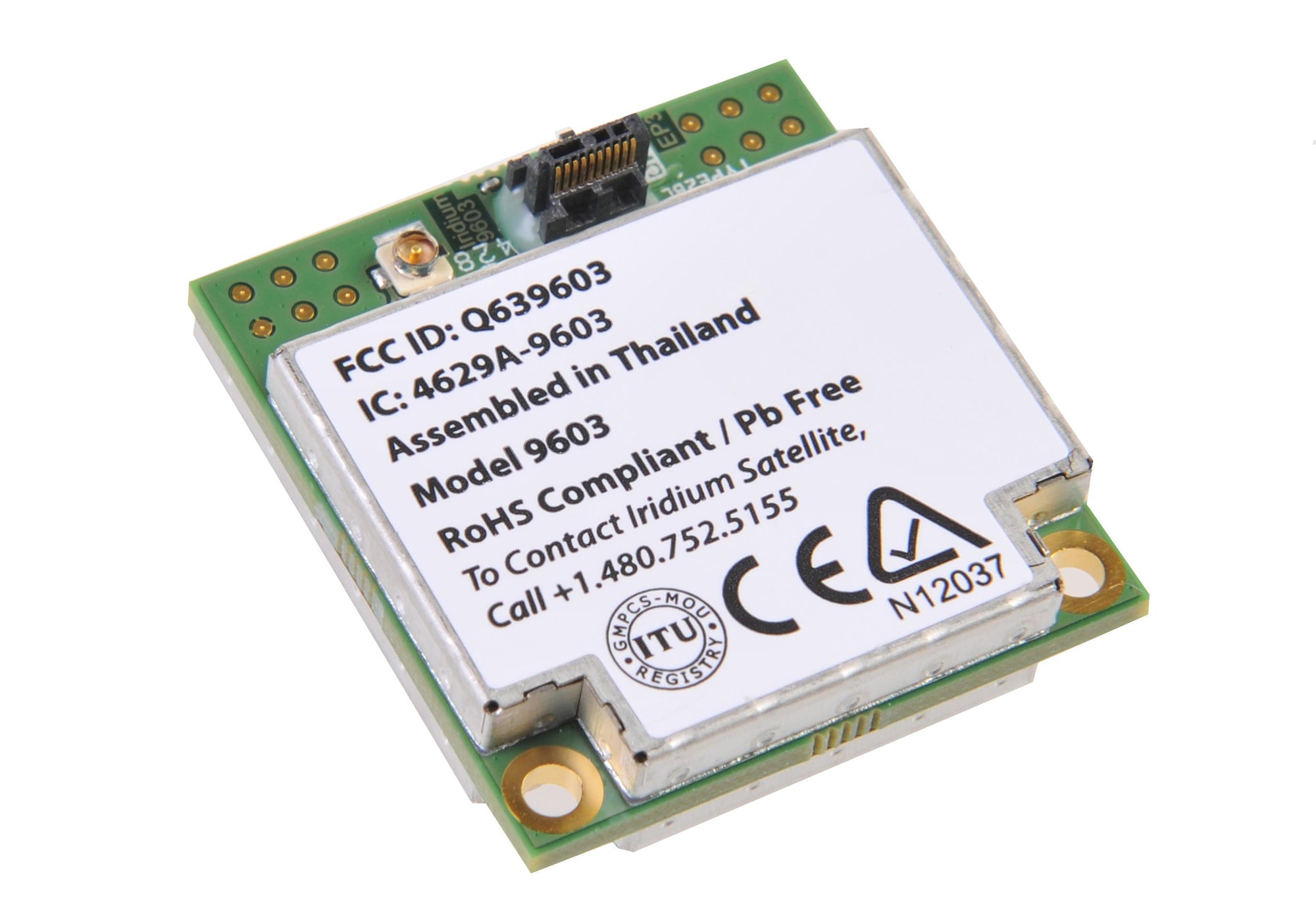

The New Iridium 9603 SBD modem is the smallest ever made by Iridium. The 9603 is one quarter the volume and half the footprint of its predecessor the 9602.
Description
The 9603 offers the smallest form factor of any commercial satellite transceiver available today. The Developer Kit allows you to develop your own tracking device using the Iridium satellite network.
The Iridium 9603 Developer Kit comes with:
- Power supply
- U.FL to SMA adapter cable
- 9603 Test Interface Card
- ***9603 SBD Transceiver***
- 9603 Data CD
- Kit packaging
Read More
Subscriptions
| Service | SBD 0 | SBD 12 | SBD 17 | SBD 30 |
| Activation Fee | FREE | $40.00 | $40.00 | $40.00 |
| Monthly Fee | $17.00 | $20.00 | $25.00 | $42.50 |
| Minimum Term | 1 Month | 1 Month | 1 Month | 1 Month |
| Suspended Monthly Fee | $2.50 | $2.50 | $2.50 | $2.50 |
| Minimum Billable Message Size | 30 Bytes | 10 Bytes | 10 Bytes | 10 Bytes |
| Inclusive Bytes per Month | 0 Bytes | 12,000 Bytes | 17,000 Bytes | 30,000 Bytes |
| Overage (per 1,000 Bytes) | $1.50 | $1.50 | $1.75 | $1.50 |
| SBD Registration/Mailbox Check | $0.05 | $0.05 | $0.05 | $0.05 |
ALL PRICES EX VAT
Specifications
| General Specifications | |
| Dimensions | 3.2 x 3 x 0.8 cm |
| Weight | 11.4 g |
| Operating temperature range | -30°c to +70°c |
| Operating humidity range | 75% RH |
| Storage temperature range | -40°c to +85°c |
| Frequency range | 1616 MHz to 1626.5 MHz |
| Duplexing Method | TDD (Time Domain Duplex) |
| Input/Output Impedance | 50 |
| Multiplexing Method | TDMA/FDMA |
| DC Power Input | |
| Supply input voltage range | 5.0V +/- .2V DC |
| Idle current (average) | 45mA |
| Idle current (peak) | 195mA |
| Transmit current (peak) | 1.5A |
| Transmit current (average) | 190 mA |
| Receive current (peak) | 195mA |
| Receive current (average) | 45mA |
| SBD Message transfer - average current | 190mA |
| SBD Message transfer - average power | 1.0W |
| Key Features | |
| Single-board transceiver | |
| Very small form factor | |
| No SIM card | |
| Simple AT command interface | |
| Automatic notification to the transceiver that a mobile-terminated message is queued at the gateway | |
Coverage
Coverage
https://cdn.shopify.com/s/files/1/0618/0057/9296/t/25/assets/iridium.jpg?v=1655189314
