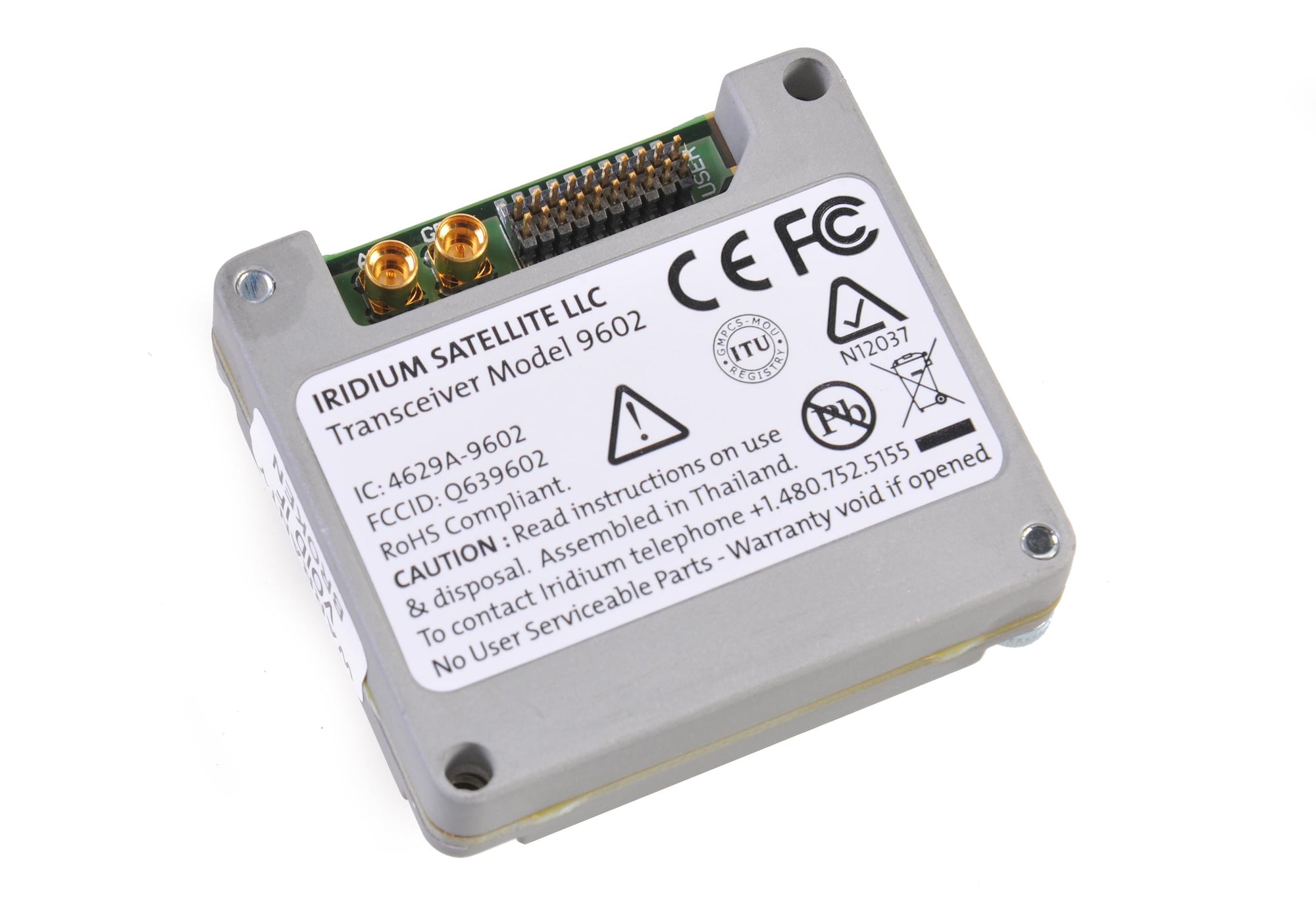

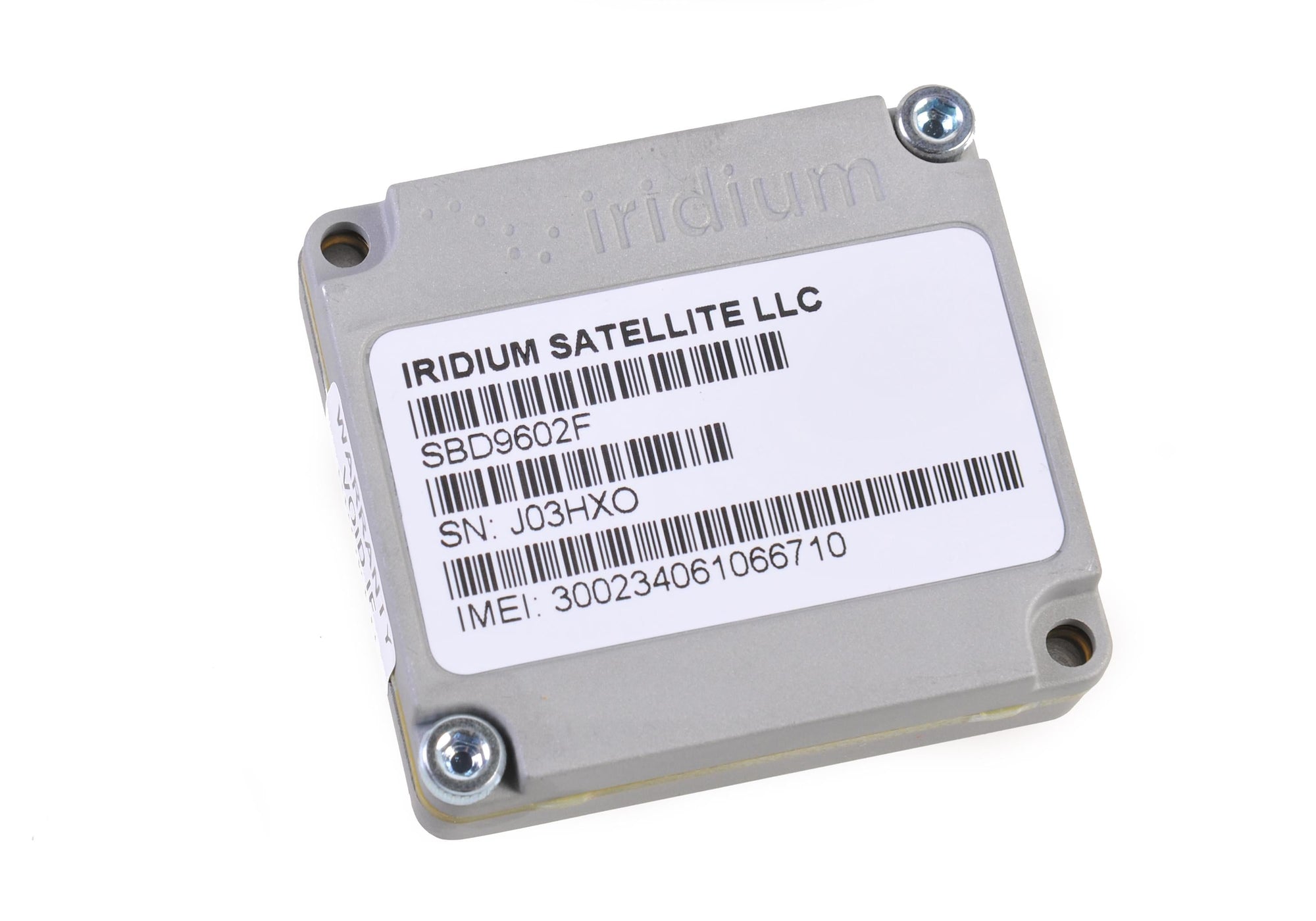

Iridium 9602-N Short Burst Data Transceiver
$146.99
The Iridium 9602 modem allows developers to take advantage of the global Iridium Short Burst Data (SBD) service.
Description
The Iridium SBD 9602
A single-board transceiver provided as a "black box" and all device interfaces are provided by a single multi-pin interface connector in addition to the antenna connector. The unit is intended to be used as a transceiver module to be fitted within another host system.
The Iridium 9602 Short Burst Data (SBD) Transceiver is designed to be integrated into wireless data applications with other host systems hardware and software.
Resources & Downloads
Read More
Subscriptions
| Service | SBD 0 | SBD 12 | SBD 17 | SBD 30 |
| Activation Fee | FREE | $40.00 | $40.00 | $40.00 |
| Monthly Fee | $17.00 | $20.00 | $25.00 | $42.50 |
| Minimum Term | 1 Month | 1 Month | 1 Month | 1 Month |
| Suspended Monthly Fee | $2.50 | $2.50 | $2.50 | $2.50 |
| Minimum Billable Message Size | 30 Bytes | 10 Bytes | 10 Bytes | 10 Bytes |
| Inclusive Bytes per Month | 0 Bytes | 12,000 Bytes | 17,000 Bytes | 30,000 Bytes |
| Overage (per 1,000 Bytes) | $1.50 | $1.50 | $1.75 | $1.50 |
| SBD Registration/Mailbox Check | $0.05 | $0.05 | $0.05 | $0.05 |
ALL PRICES EX VAT
Specifications
| General Specifications | |
| Dimensions | 4.1 x 4.5 x 1.3cm |
| Weight | 3g |
| Operating Temperature | -40°c to +85°c |
| Operating Humidity | 75% RH |
| Storage Temperature | -40°c to +85°c |
| Frequency Range | 1616 MHz to 1626.5 MHz |
| DC Power Input | |
| Idle current (average) | 45mA |
| Idle current (peak) | 195mA |
| Transmit current (peak) | 1.5A |
| Transmit current (average) | 190 mA |
| Receive current (peak) | 195mA |
| Receive current (average) | 45mA |
| SBD Message transfer - average current | 190mA |
| SBD Message transfer - average power | 1.0W |
| Key Features | |
| Single board transceiver | |
| Small form factor | |
| No SIM card | |
| RoHS compliant | |
| Duplexing Method TDD (Time Domain Duplex) | |
| Input/Output Impedance 50 | |
| Multiplexing Method TDMA/FDMA |
