Intellian C700 Certus Terminal

Intellian C700 Certus Terminal

The Intellian C700 is the latest marine satellite internet terminal to make use of Iridium's new high speed data service, Iridium Certus.

Stay connected anywhere in the world, with the Intellian C700 you have the speed to use the terminal as a standalone communication system or it is ideal as a VSAT backup.

Intellian C700 Certus Terminal
$5,805.18

Frequently Bought Together

$5,805.18
Total:
$0.00

Description

Using Iridium's global satellite network, Intellian C700 Iridium Certus Maritime Terminal offers pole-to-pole coverage for high-speed satellite internet and voice access.  Following Iridium's approval to offer GMDSS services by the IMSO in Jan 2020, the C700 will offer GMDSS compatibility when the service becomes available.

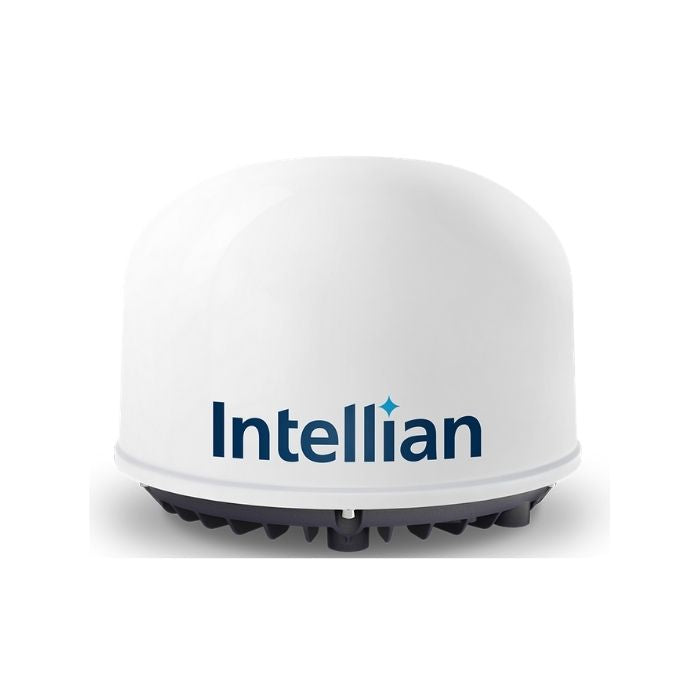

Iridium Certus Maritime Terminal: Your Gateway to Unmatched Connectivity at Sea. The 12 element patch antenna offers excellent performance during any ship motion with up to 352 kbps upload and 704 kbps download speed - while the C700 is ideal as a VSAT backup, it is also powerful enough to use as a standalone communications system.  Streaming IP is also available.



Connectivity

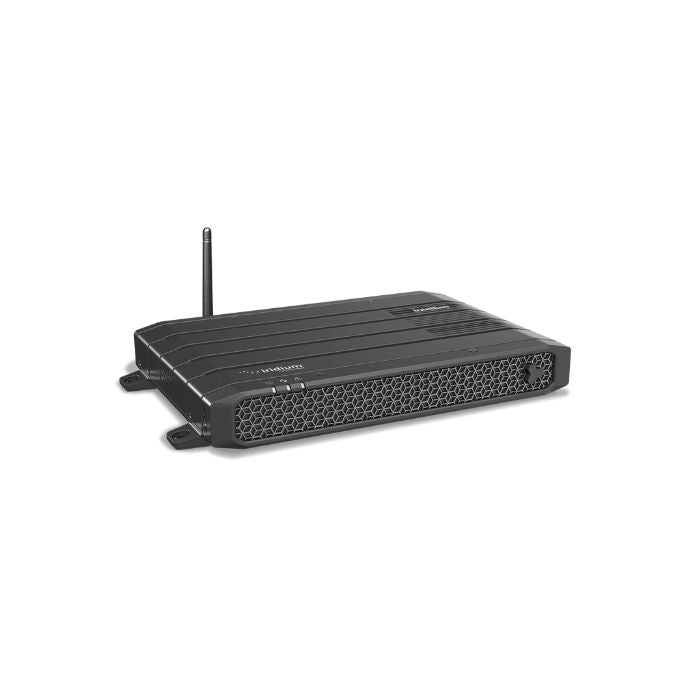

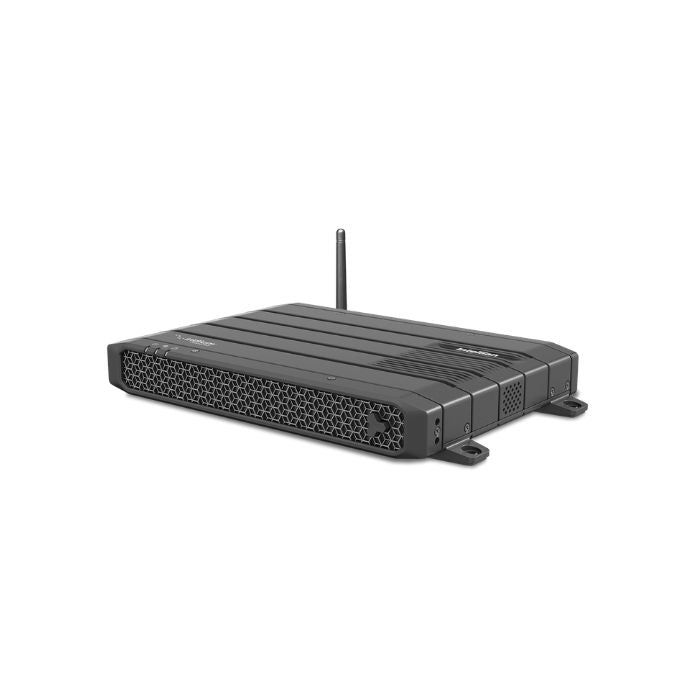

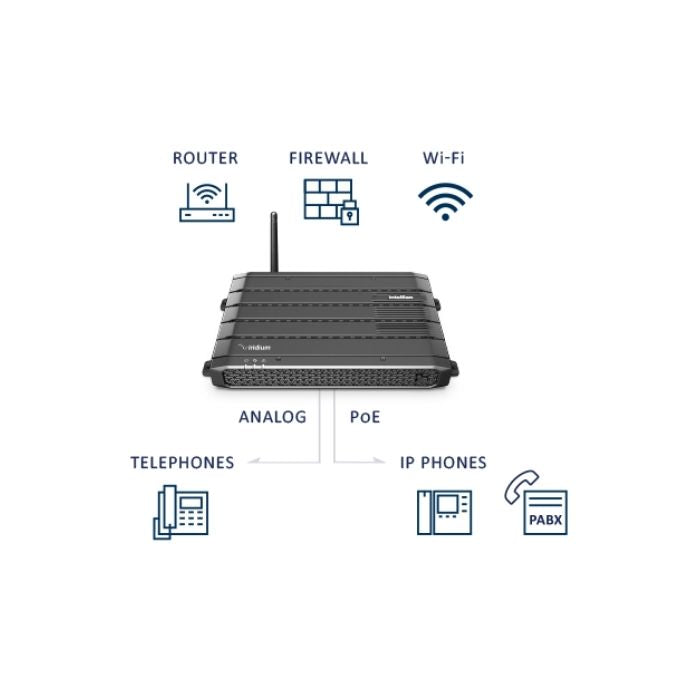

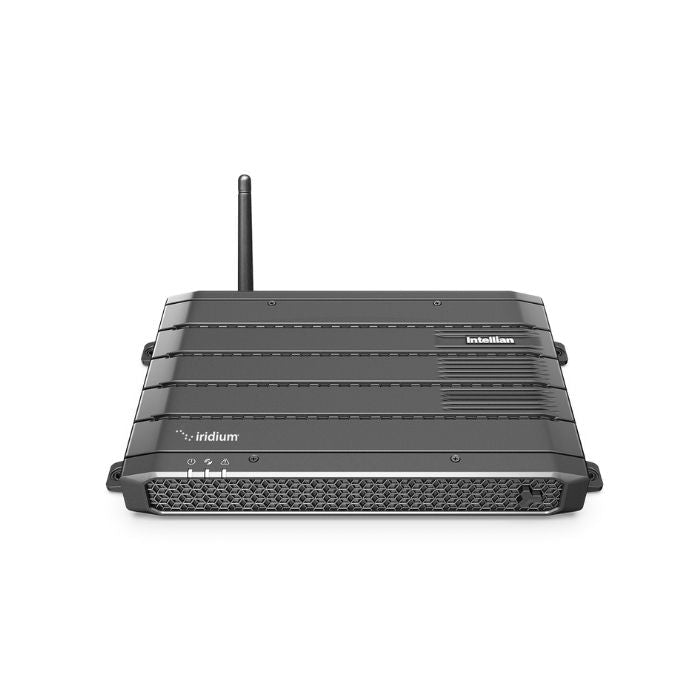

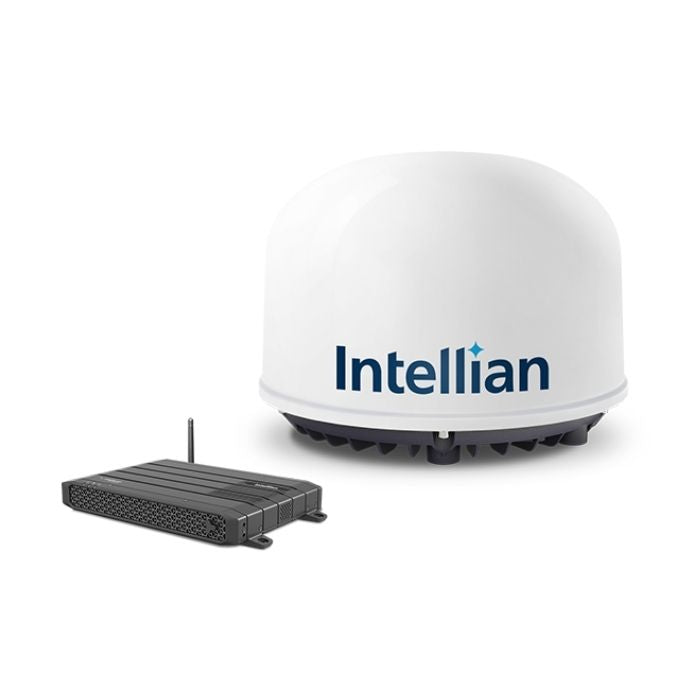

The compact antenna connects by a single coaxial cable to the below deck unit offering Ethernet/WAN, phone and WiFi connectivity.  Three high quality, low latency phone lines can be used simultaneously while the Short Burst Data feature provides global satellite tracking capabilities.



Enhanced Cyber Security

  • Built in firewall
  • HTTPS. TLS certificate
  • Data Encryption



Advanced Voice Solution

  • Soft PABX & LTE interface capability
  • 3 HD Quality voice lines
  • Up to 16 SIP Phones
  • Up to 2 analog telephones
  • 3G/4G/LTE WAN Port



Package excludes antenna cable. Experience the freedom of reliable, global, and high-speed connectivity, all from the heart of the sea. Trust in the Iridium Certus Maritime Terminal to keep you connected, always.

Read More
Read Less

Subscriptions

Iridium Certus Marine Service Plans

Subscription Services 20MB 30MB 50MB 80MB 300MB 1GB 2GB 5GB 10GB
Activation Fee FREE FREE FREE FREE FREE FREE FREE FREE free
Minimum Term 12 months 12 months 3 months 3 months 3 months 2 months 2 months 2 months 2 months
Monthly Fee $70.88 $102.38 $118.13 $196.88 $393.75 $1,102.50 $3,465.00 $2,205.00 $3,087.00
Inc. MB/Month 20MB 30MB 50MB 80MB 300MB 1,000MB 2,000MB 5,000MB 10,000MB
Out of Bundle per MB $6.30 $5.91 $5.52 $4.73 $3.54 $2.76 $1.97 $1.34 $1.88
Early Termination Fee See Below $2,625.00 $3,675.00 $4,987.50



ETF - 12 Month Committment ETF - 3 Month Committment
Number of days into committment the Subscriber early terminates prior to end of plan's term committment
< 180 days = 6 x MRC < 30 days = 2 x MRC
< 270 days = 3 x MRC < 60 days = 1 x MRC
< 365 days = 1 MRC > 60 days = $0

ALL PRICES EX VAT

Visit Iridium Certus Pay Monthly Marine Plans for full information.

Specifications

Specification

Iridium Services

Voice 3 simultaneous HD voice lines
Background IP Uplink: up to 352 kbps. Downlink: up to 704 kbps.
Streaming IP Up to 256 kbps
Short Burst Data Yes - suitable for tracking.

Physical

Radome Dimension 370 x 270mm (14.5 x 11.0 inch)
Antenna Weight 6.5kg / 14.3 lb
BDU Dimensions 280 x 183.5 x 41 mm / 11 x 7.2 x 1.45 inches
BDU Weight 2kg / 4.4 lb

Power

DC Input

10 ~ 32 V DC

Power (max)

120 W

RF/Antenna

TX Frequency 1616 ~ 1626 MHz
RX Frequency 1616 ~ 1626.5 MHz
Antenna Gain HGA 2 Class
Antenna Connectors TNC female (ADU) – TNC female (BDU)
GNSS GPS, GLONAS, Galileo, BeiDou
WiFi 802.11 b/g

Approval

Type Approval CE/RED, FCC
Environmental Conditions
Operating Temperature Range -25℃ ~ + 55℃ (ADU)
-15℃ ~ + 55℃ (BDU)
Operating Humidity Range More than 95%
Water Ingress Protection ADU: IP56, BDU: IP31
Shock & Vibration Shock:
IEC60068-2-27 (operation),
IEC60721-3-6 Class 6M3 (survival)
Vibration:
IEC60945 (operation),
IEC60721-3-6 Class 6M3 (survival

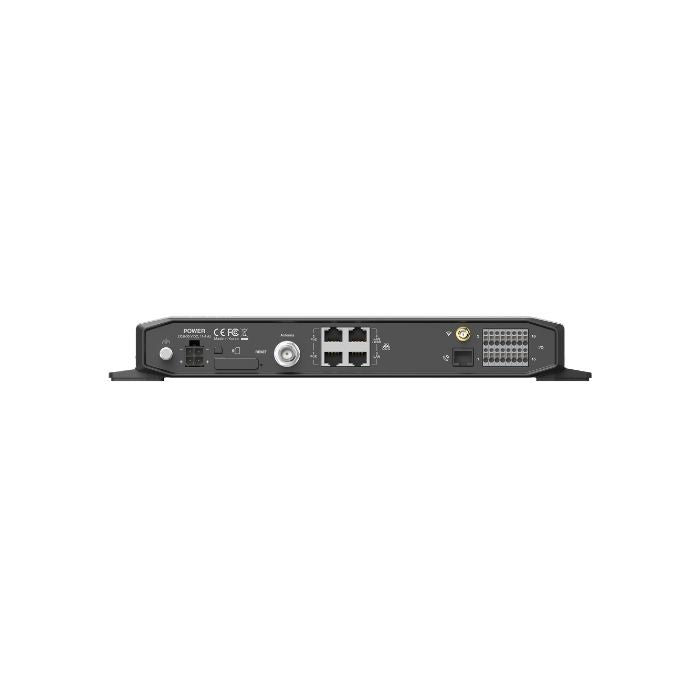

I/O

Ethernet/WAN RJ45 x 4
Phone RJ14 x 1
Wireless 1 WiFi (SMA RP)
I/O 10 pin GPIO
Etc SIM, Reset, On/Off, Ground

Coverage

OSAT

Coverage
