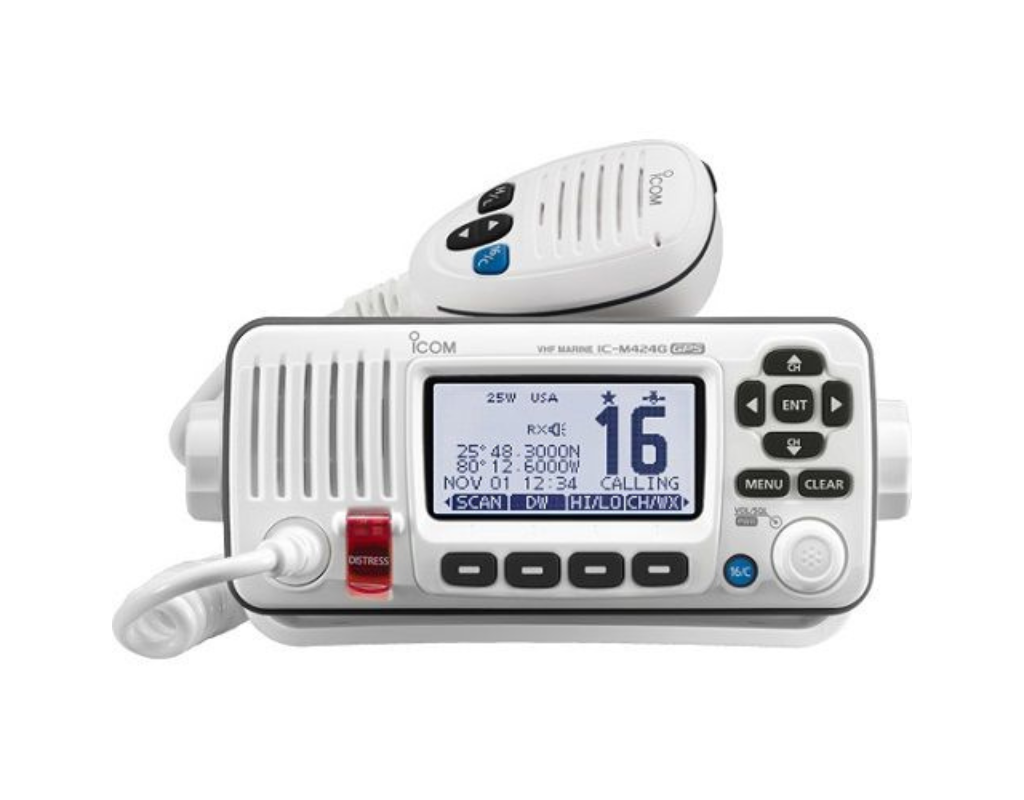

Icom M424G White VHF Radio Built in Class D DSC and GPS
Model: M424G White
- Simple remote control speaker-microphone, HM-205B/SW
- NMEA 0183 connectivity
- MarineCommander™ compatible
- AquaQuake™ draining function
- IPX7 submersible protection (1m depth for 30 minutes)
- Weather channels with alert function
- Dual/tri-watch function
- Priority and normal scan
Intuitive User Interface and White Backlit LCD and Keypad
Incorporating Icom’s common Marine Family User Interface designed for simple, intuitive operation. A rotary selector and directional keypad provide quick and easy access to the intended functions. The high contrast white backlit LCD and laser-cut keypad match well with modern boat designs.
Active noise cancelling
The built-in active noise cancelling provides superb performance. It reduces background noise up to 90% in the received signal and 30% in the transmits signal.
10W Loud Audio, Public Address and Foghorn
The IC-M424G has a built-in 10W amplifier that increases the audio output to an external PA speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, the foghorn can also be emitted from the external PA speaker.
Built-in Class D DSC
The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.
Built-in GPS Receiver
The built-in GPS receiver shows your current position, date/time and can be used for DSC calls. The GPS data source is selectable from internal and external GPS.
Optional White Backlit COMMANDMIC™ HM-195GB/GW
The optional white backlit COMMANDMIC makes it convenient for using the IC-M424G from a separate cabin or tower. All functions of the IC-M424G can be controlled from the COMMANDMIC and can be used as an intercom with the IC-M424G.
AIS Target Call with MA-510TRSpecifications
When connected to the optional MA-510TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.
What's in the Box:
||Tx - 156.025—157.425 MHz
Rx - 156.050—163.275 MHz
Ch70 - 156.525 MHz
||USA, CAN, INT, WX channels
|Operating Temperature Range
||-20°C to +60°C; -4°F to +140°F
|NMEA in/Out Formats
||RMC, GGA, GNS, GLL, DSC, DSE
|Output Power @ 13.Vdc
|Max frequency Deviation
||± 5 kHz
||±10ppm (-20°C to +60°C)
||Less than —70dBc (High)
Less than —56dBc (Low)
||-13dBµ typ. (12dB SINAD)
||—5dBµ emf typ. (1% BER)
||Less than —10dBµ
|Audio output power (at 10% distortion, 4? load)
|| 13.8V DC nominal (11.7—15.9V DC)
||up to 5.5Amps
||7.09 3.23 4.72 in
- M424G White
- Bracket and Knobs
- Hand Microphone HM205
