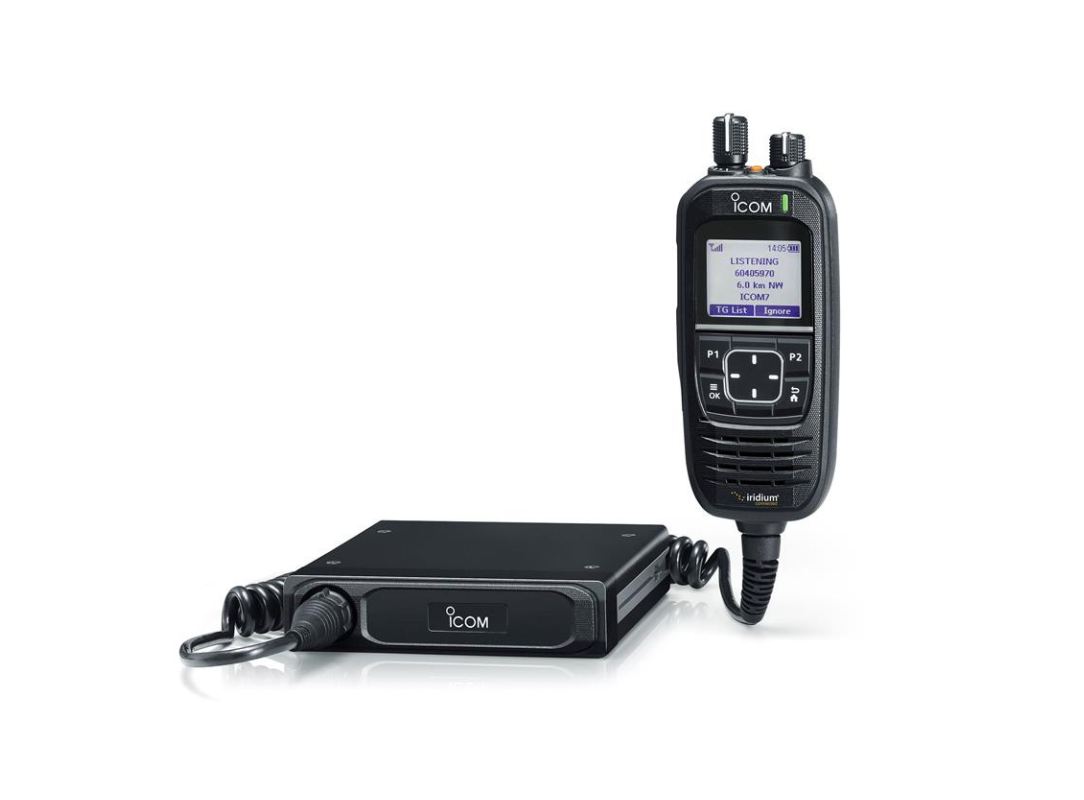

ICOM IC-SAT100M PTT

ICOM IC-SAT100M PTT

$2,932.00

ICOM IC-SAT100M Push-To-Talk (PTT) uses the Iridium network to provide users coverage anywhere in the world. This two-way radio system can be used as a fixed communication solution in remote, isolated areas without mobile phone or landline network infrastructure.

ICOM IC-SAT100M PTT
$2,932.00

Frequently Bought Together

$2,932.00
Total:
$0.00

Description

ICOM IC-SAT100M Push-To-Talk (PTT) uses the Iridium network to provide users with coverage anywhere in the world. This two-way radio system can be used as a communication tool in remote, isolated areas where there are no mobile phones or landline network infrastructure. Even if terrestrial network infrastructure is rendered unusable by human or natural disasters, this Push-To-Talk can provide a stable backup, independent from other networks. This fixed solution is ideal for remote office or installed in vehicles or vessels.the ICOM IC-SAT100M PTT (Push-to-Talk) Two-Way Radios have emerged as a game-changer.



ICOM IC-SAT100M Push-To-Talk (PTT) Key Features:

One-to-Many Communications

Unlike satellite phones, IC-SAT100M owners can start talking to all the radios in the same talkgroup instantly, with just a push of a button (PTT).



Global Coverage

The Iridium satellite network covers everywhere in the world, including both poles, and can provide wide area global communications.The ICOM IC-SAT100M PTT is designed specifically for in-vehicle and in-building applications. Unlike other fixed mount satellite solutionsThe IC-SAT100M is designed specifically for in-vehicle and in-building applications.

Real-Time, Low-Latency Communication

Using 66 Low Earth Orbit (LEO) Iridium satellites, the IC-SAT100M provides low-latency communication, and broader, more reliable network coverage, compared to Geosynchronous Equatorial Orbit (GEO) satellites. In fact, the latency is so low that the delay is approx. 500 milliseconds.



1500 mW Powerful Audio

1500 mW audio delivered from the internal speaker provides loud and clear communication, even in noisy environments.



Secure Communication

The ICOM SAT100M Mobile Satellite Radio provides secure conversations with AES 256-bit encryption.



Conventional Radios and IP Phones Interconnection

With a VE-PG4 RoIP gateway, the IC-SAT100M can interconnect with an IP phone, IP, LTE, IDAS digital*1 and analog transceivers. The ICOM SAT100M Mobile Satellite Radio is a powerful and versatile communication tool that harnesses the strength of satellite technology to keep you connected in areas where traditional cellular networks fail.

How does it work?

Using satellite Push-To-Talk technology, users of the ICOM IC-SAT100M can communicate with any other IC-SAT100 radios, that are assigned to the same talk-group. The coverage for the talk-group must be pre-selected and coverage areas can be split into different coverage regions. The versatility and reliability of the ICOM IC-SAT100M PTT Two-Way Radios make them ideal for a wide range of applications



Installation Examples

icom-ic-sat100m-ptt-installation
Read More
Read Less

Subscriptions



ICOM IC-SAT100M requires a subscription to the Iridium PTT service.



View Current Pricing >

Specifications

Specification
Dimensions

Antenna with RF unit: 76.8 × 200 × 76.8 mm, 3 ×7.9 × 3 in

Main unit: 125 × 29 × 156 mm, 4.9 ×1.1 × 6.1 in

Microphone: 59.6 × 130.2 × 28.4 mm, 2.3 × 5.1 × 1.1 in

Weight TBC
Operating Temperature –30°C to +60°C, –22 °F to 140 °F
Audio Output Power 1500 mW typical (8 Ω load) -Internal Speaker.  4 W typical (4 Ω load) - External Speaker.
Power Supply Voltage 13.2 V / 26.4 V DC
IP Rating IP67 (antenna with RF unit), IP55 (mic), IP54 (main unit)
Talkgroups Maximum 15 groups
Antenna Connector SMA (for external antenna)
Maximum Distance from Radio to Antenna 100m / 328ft



Coverage

OSAT

Coverage
