$1,230.25
Part Number: ISD720

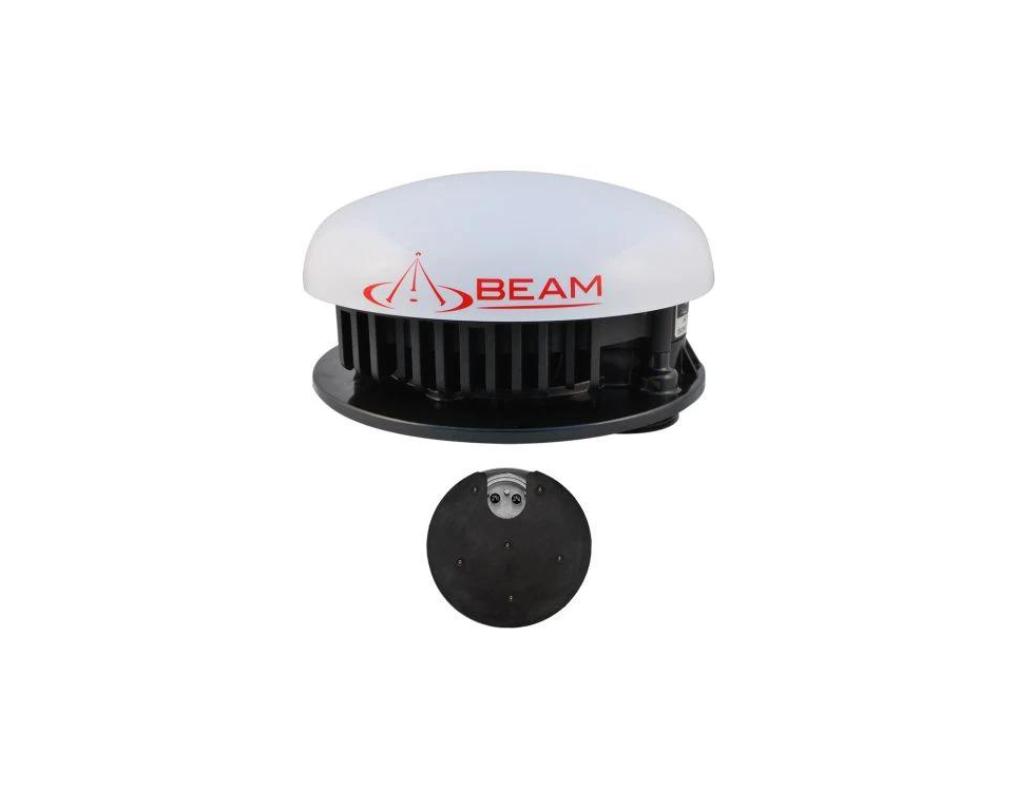

The Bolt Mount Transport Active Antenna for IsatDock is designed for transport /land based applications and works with IsatDocks and tracking applications.
| General Specifications | |
| Dimensions |
14.6 x 14.6 x 7.5 cm / 5.75" x 5.75" x 2.95" (Antenna) 25 x 23 x 12.5 cm / 9.84" x 9.05" x 4.92" (Box) |
| Weight |
870g / 1.92Ibs (Antenna) 1.1kg / 2.42Ibs (Box) |
| Operating Temperature | -25°C to +55°C (-13°F to +131°F) |
| Connectors | SMA Female (Inmarsat & GPS) |
| RF Output Impedance | 50 Ohms |
| Frequency (Inmarsat) | 1626.5 to 1660.5 MHz (Transmit - operational) 1668.0 to 1675.0 (Transmit - extended) 1525.0 to 1559.0 MHz (Receive - operational) 1518.0 to 1525.0 MHz Receive - entended) |
