Model Number: ISDLPHPD2

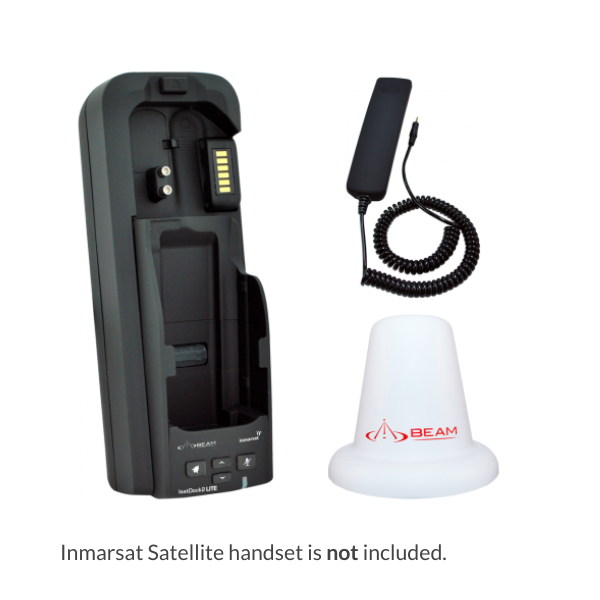

The Beam IsatDock 2 Lite Antenna Passive bundle includes the IsatDock 2 Lite, Passive Antenna and Privacy Handset for fixed-communication with your Inmarsat IsatPhone 2 Satellite Phone.
Inmarsat IsatPhone 2 Satellite Phone is not included.
MUST USE BEAM PASSIVE CABLE KITS WITH THIS BUNDLE.

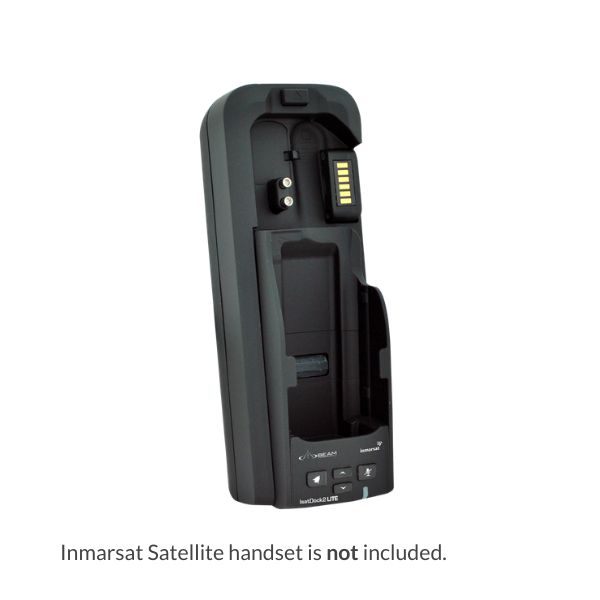

The Beam IsatDock2 LITE for Inmarsat’s IsatPhone 2 allows for a semi-permanent installation on a variety of applications where easy access to standard voice and data services is required for land and sea applications.
The IsatDock2 LITE enables voice calling capabilities via the inbuilt Bluetooth of the handset or an optional privacy handset simply connected to the dock.
The IsatPhone 2 handset is easily inserted and removed by the press of a button on the top of the dock making it very easy to use away from the dock when required.

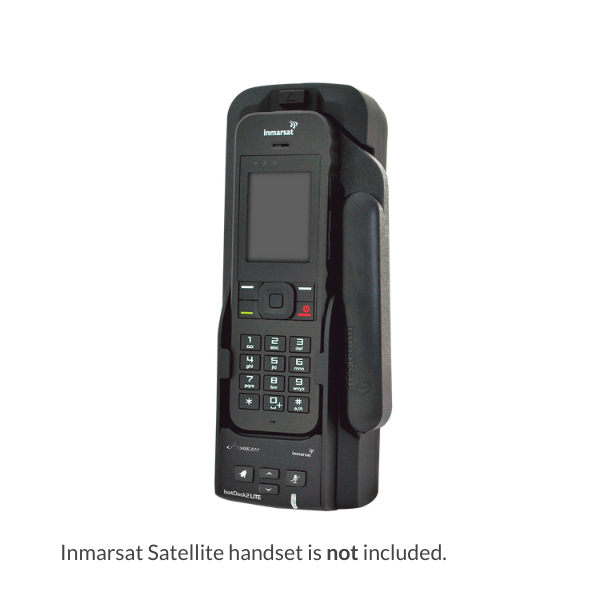

The IsatPhone 2 handset, fits securely in the dock, its features include phone charging, USB data port, in-built ringer and allows antenna and power to be permanently connected to the dock, ready for use.

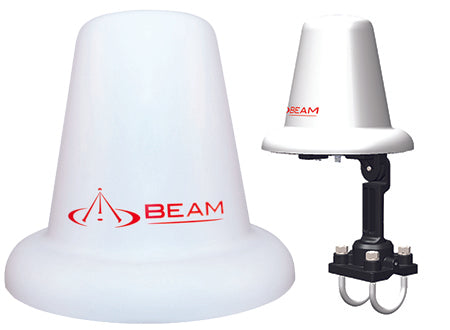

The ISD700 is supplied with an adjustable mounting bracket it allows the antenna to be mounted and then pointed in the direction of the Inmarsat GSPS satellite within the coverage area of installation. The antenna connections (GSPS and GPS) are connected directly to the base of the antenna.

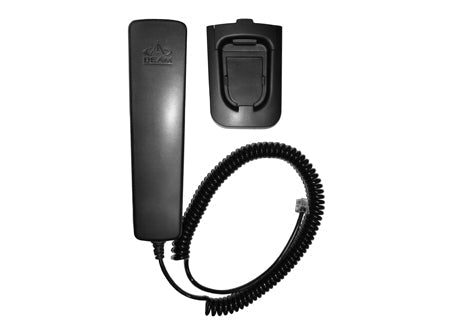

The Beam Privacy Handset offers added convenience, with auto sensing answer and hang-up cup intelligence to enable privacy calls.
| General Specifications | |
| Dimensions | 9.9 x 7.6 x 2.2 cm |
| Weight |
565g (Dock) 1355g (Total Kit) |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Storage Temperature | -20°C to +70°C /(-4°F to +158°F) |
