Beam 30m Iridium Passive Antenna Cable Kit

Beam 30m Iridium Passive Antenna Cable Kit

$1,495.00

Part Number: RST936

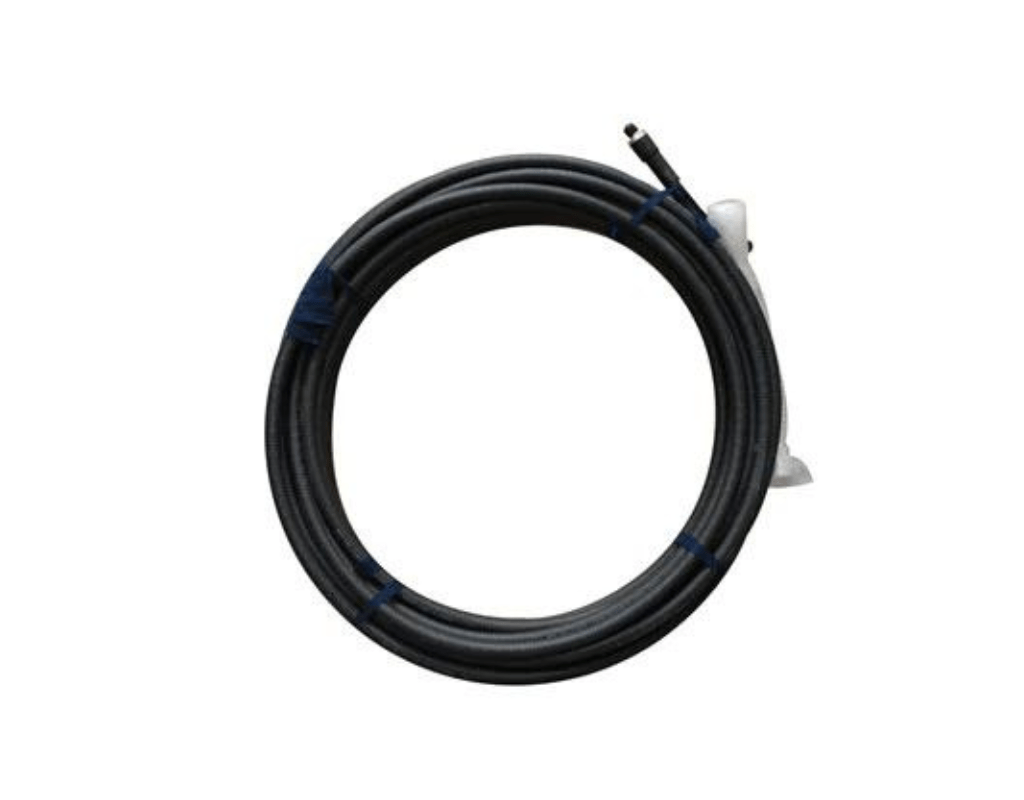

Iridium Antenna cable Passive 30m/98ft provides the ability to run long distance installations for larger marine vessels and fixed installations and is pre-terminated with TNC male connectors (TNC-Male to N-Male).

Beam 30m Iridium Passive Antenna Cable Kit
$1,495.00

Frequently Bought Together

$1,495.00
Total:
$0.00

Description

What is Included?

  • 2 x 0.5m Ultra-flex (LMR240)
  • 1 x 29m (LCF7850J).

Key Features:

  • Provides the ability to run long distance installations for larger marine vessels and fixed installations
  • Pre-terminated with TNC male connectors.
Read More
Read Less

Specifications

General Specifications
Total Kit Weight 5.39Kg / 11.88Ibs
Main Cable
Length 29m / 95.14ft
External Diameter 2.78 cm / 1.2"
Bend Radius 12 cm / 4.72"
Bend Radius - Repeated 25 cm / 9.84"
Operating Temperature -50°C to +85°C (-58°F to +185°F)
Fly Lead (Passive)
Length 0.5m / 1.64ft
External Diameter 0.61 cm / 0.24"
Bend Radius 1.91 cm / 0.75"
Bend Radius - Repeated 6.35 cm / 2.5"
Operating Temperature -40°C to +85°C (-40°F to +185°F)
