Beam Iridium Active Antenna
Part Number: RST740
The Iridium Pole Mount Antenna is designed for Land and Maritime applications specifically for use where long cable runs are required to reach between the required antenna location and the terminal.
Description

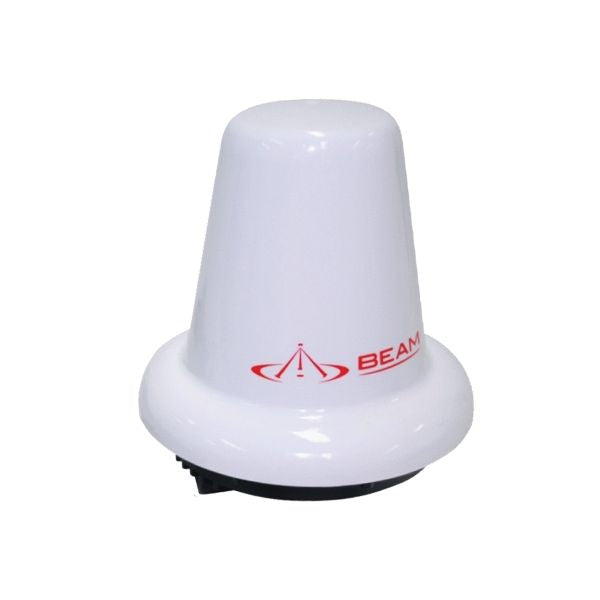

The Beam Iridium Active Antenna (RST740) is a small, omni-directional antenna with a high quality enclosure.

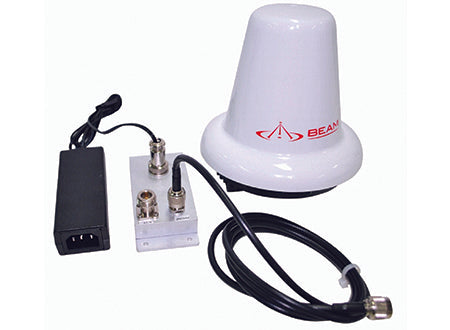

What is Included?
- Beam Iridium Active Antenna
- Power breakout box (required 9-32 VDC)

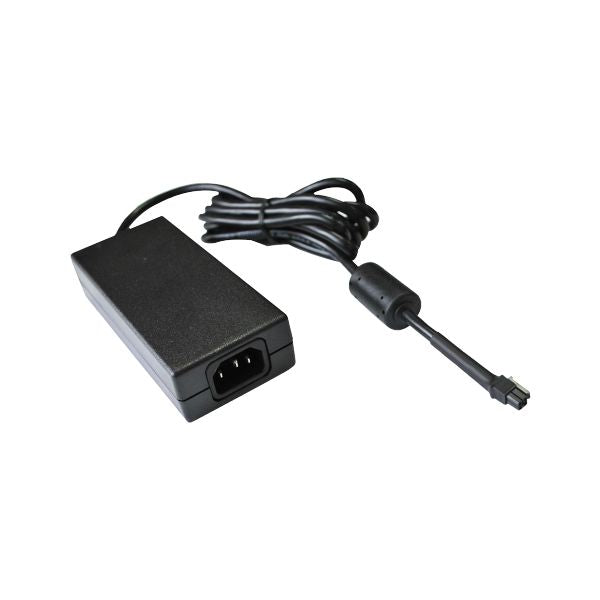

- AC power supply
- Amp Lead is not included. The Amp lead is included with the Beam Iridium active antenna cable kits.
Beam Iridium Active Antenna Key Features:
Compatible with Beam products and Iridium devices
This Active Antenna is designed to work on all Beam products and any Iridium devices, however requires an approved Beam Active Antenna cable for use in order to manage the power amplification across the RF line to the antenna.
Improves Satellite Connection
The RST740 Anntena helps to improve satellite connection for your Iridium device, even when you used your device inside!
NOTE: Combining an Active Antenna with Standard Cables will damage the Antenna.
Maximum loss is 13.5db with a minimum loss of 13db from satellite device to antenna in total.
Read More
Specifications
| General Specifications | |

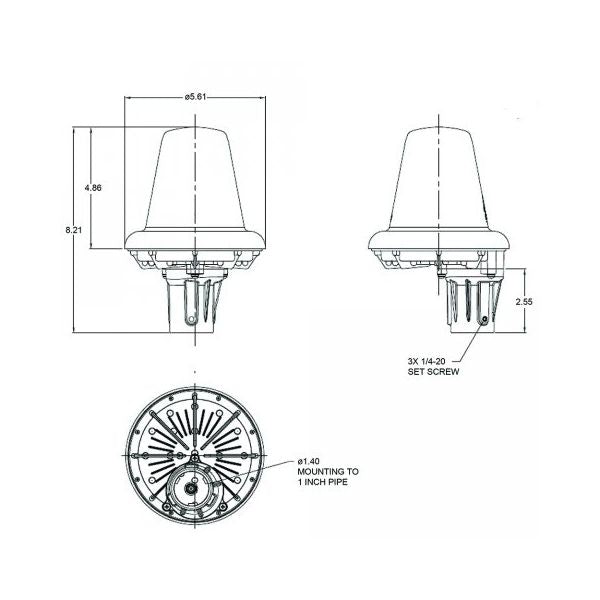

| Dimensions |
20.9 x 14.2 cm (antenna) 26 x 21 x 17 cm (Box) |
| Weight | 510g |
| Active Antenna Cable Loss | 11.5-13.5dB (total end to end loss) |
| DC RMS Standby Power Draw | 0.32W |
| DC Peak Power Draw | 30W |
| Input Voltage | 9-36 VDC |
| RF Input | 0.5 dB Max |
| Output Voltage | 30-32 VDC |
| Operating Temperature | -25°C to +55°C |
| Storage Temperature | -40°C to +80°C |
| Frequency | 1616MHz - 1626.5 MHz |
| Key Features | |
| Designed to work with Beam Iridium docks and terminals where long RF cables are needed | |
| Omni-directional antenna | |
| Comes complete with a power supply (15V DC output) | |
| High quality enclosure | |
| Designed for use with active cables only | |
| Allows for cable runs ranging from 23m to more than 100m (328 feet) |
