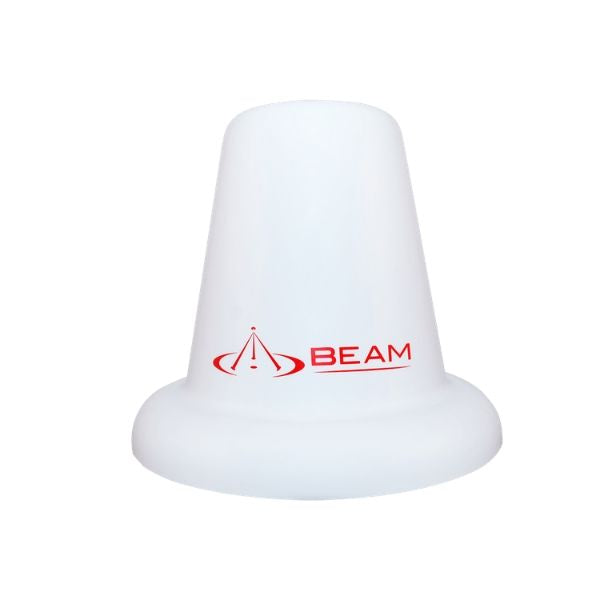

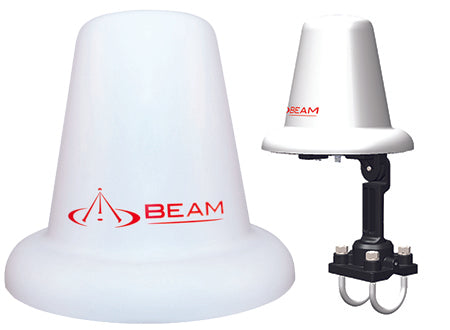

Beam IsatDock Fixed/Directional Passive Antenna (ISD700)

Beam IsatDock Fixed/Directional Passive Antenna (ISD700)

Part Number: ISD700

The Fixed/Directional Passive Antenna for IsatDock dual mode Inmarsat & GPS antenna is designed predominantly for land based applications and works with IsatDock's.

Beam IsatDock Fixed/Directional Passive Antenna (ISD700)
$565.25

Frequently Bought Together

$565.25
Total:
$0.00

Description

Key Features:

  • Designed for land-based applications

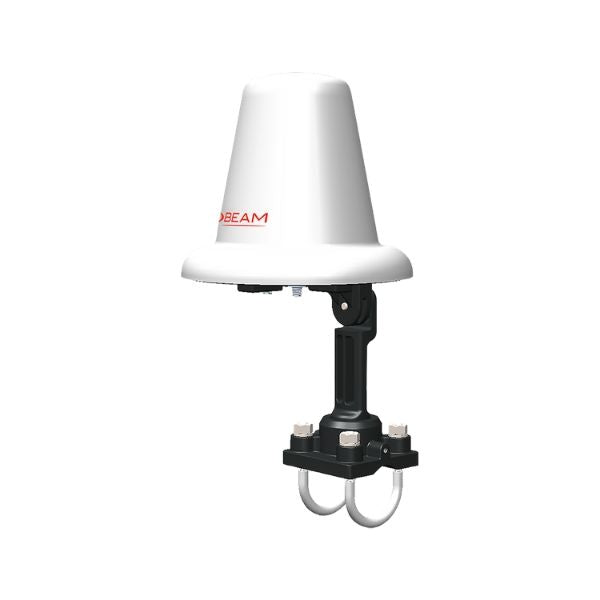

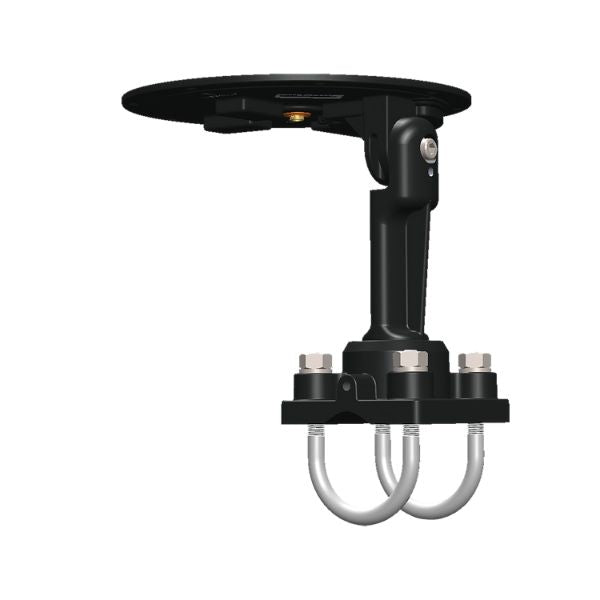

  • Supplied with U-bolts that enables it to be securely mounted on to a pole
  • Compatible with Beam's docks and Terra terminals

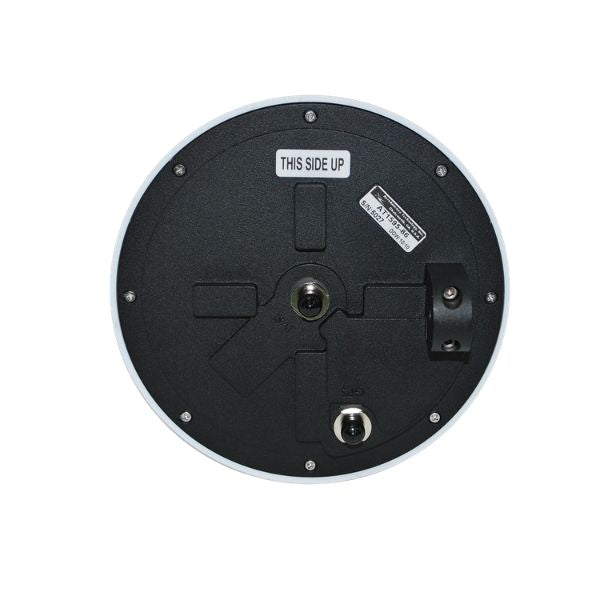

  • Fitted with an SMA female connector for GPS and a SMA for Inmarsat
Read More
Read Less

Specifications

General Specifications
Dimensions

23.1 x 14.2 x 14.2 cm / 9.1" x 5.6" x 5.6" (Antenna)

26 x 21 x 12 cm / 10.24" x 8.27" x 6.69" (Box)

Weight

900g / 1.95Ibs (Antenna(

1kg / 2.2Ibs (Box)

Operating Temperature -40ºC to +70ºC / -40ºF to +158ºF
Frequency (Inmarsat) 1626.5 to 1660.5 MHz (Transmit - operational)
1668.0 to 1675.0 (Transmit - entended)
1525.0 to 1559.0 MHz (Receive - operational)
1518.0 to 1525.0 MHz (Receive - entended)
RF Output Impedance 50 Ohms
