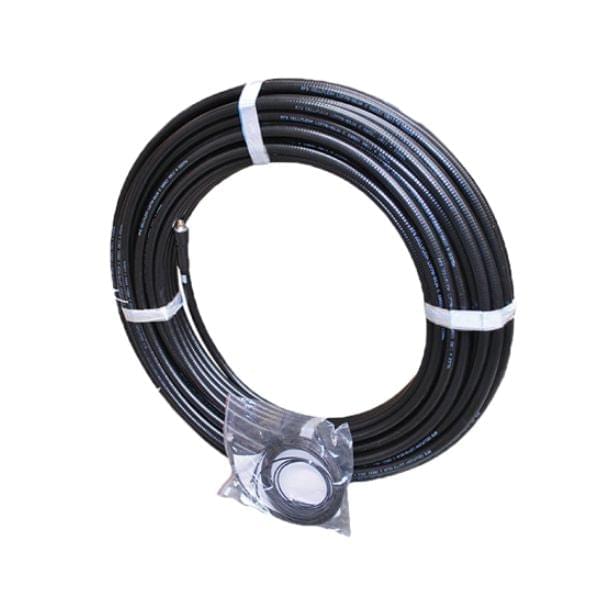

Beam 104m Iridium Active Antenna Cable Kit
$2,750.25
Part Number: RST948
The Beam Iridium Active Cable (104m / 341.21 ft) provides a flexible insta llation option for all types of installations when used with the Iridium Active Antenna.
Description
What is Included?
- 104m Active Antenna Cable
- 7m Iridium Fly Lead (2 adaptors)
- 1.5m Amp Lead.
Key Features:
-
Provides a flexible installation option for all types of installations when using the Active Iridium Antenna (RST740).
Read More
Specifications
| General Specifications | |
| Total Kit Weight | 37.66kg / 83.03Ibs |
| Main Cable (Active) | |
| Length | 90m / 295.28 ft |
| External Diameter | 2.78 cm / 1.09" |
| Bend Radius | 12 cm / 4.72" |
| Bend Radius - Repeated | 25 cm / 9.84" |
| Operating Temperature | -50°C to +85°C (-58°F to +185°F) |
| Connectors | N-Male to N-Male |
|
Amp-Lead (Active) |
|
| Length | 1.5m / 4.92 ft |
| Operating Temperature | -40°C to +80°C (-40°F to +176°F) |
| Connectors | TNC-Male to TNC-Male |
|
Fly-Leads (Active) |
|
| Length | 7m / 22.97 ft |
| External Diameter | 6.1m / 0.24" |
| Bend Radius | 1.91 cm / 0.75" |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Connectors |
N-Male to N-Female (Fly-Lead 1) TNC-Male to N-Female (Fly-Lead 2) |
